Electronic Accelerator Actuator

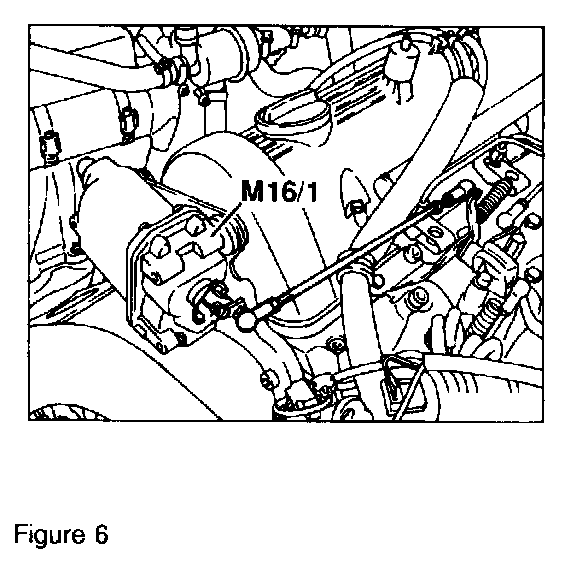

Component ID M16/1
Component Name Electronic accelerator actuator
Component Location Right front of engine
