Checking Operation of Electrical Components

AIR CONDITIONING - FUNCTION TEST OF ELECTRICAL COMPONENTS
09/85 through 08/87

NOTES:
- In the event of unsatisfactory operation in accordance with complaint "A/C compressor does not operate" or "does not switch on" diagnose trouble in accordance with the following test procedure.
- The automatic heater control must operate correctly for the following tests to be carried out.


TEST





Test Step 1

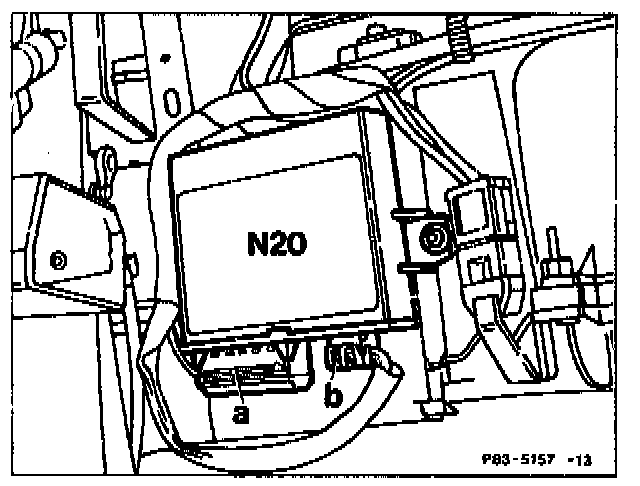

N20 Automatic temperature control unit

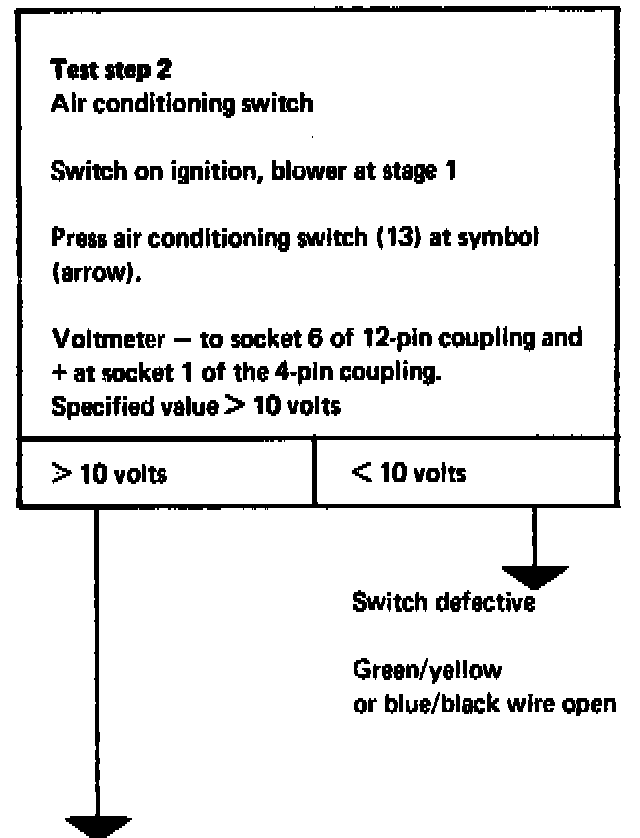

Test Step 2






Air conditioning switch (13)

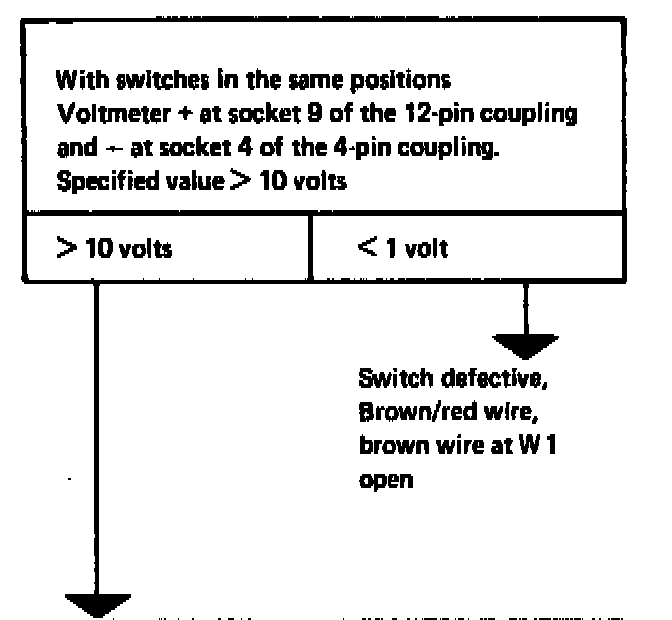

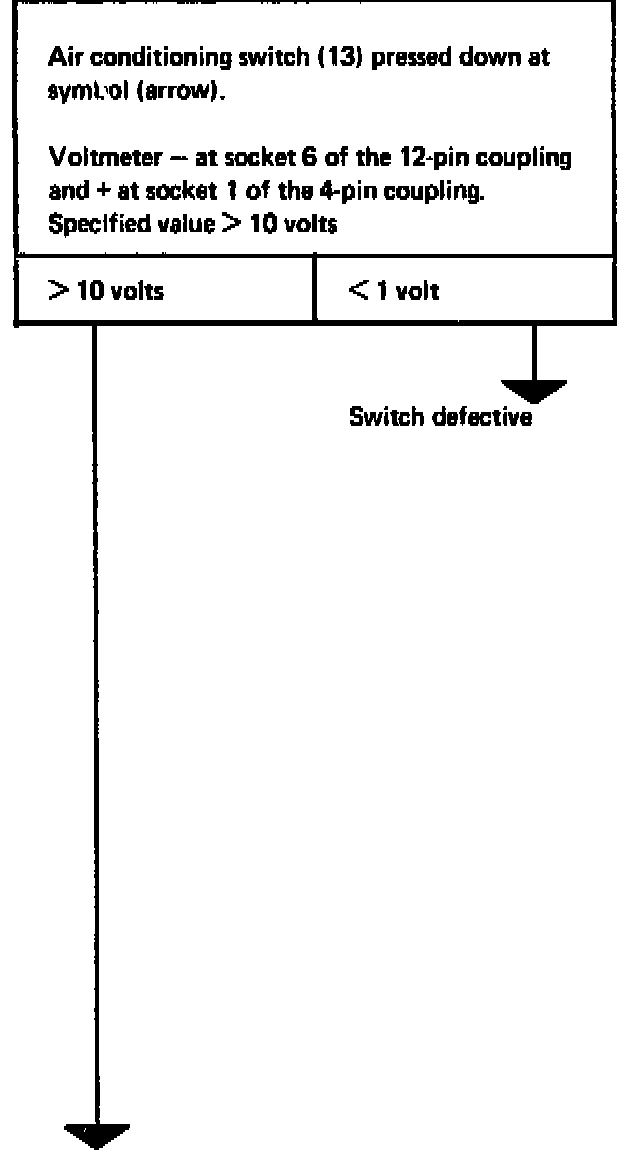

Test Step 2 (continued)






Air conditioning switch (13)

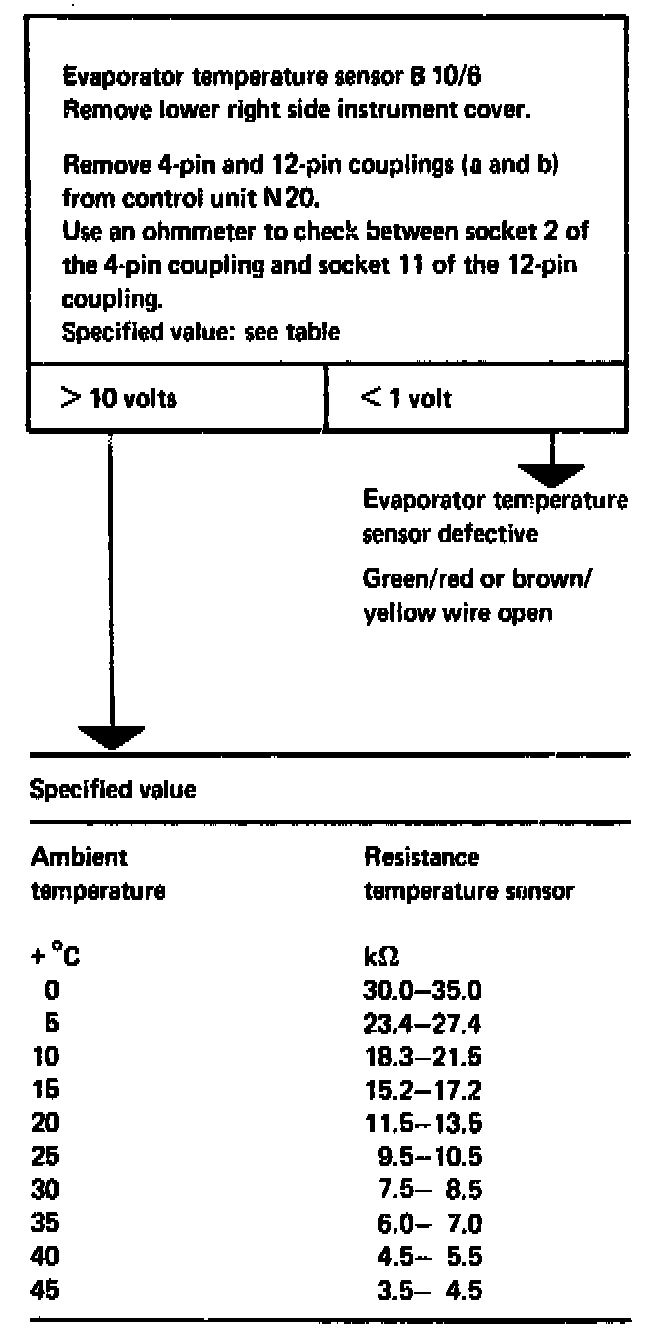

Test Step 2 (continued)

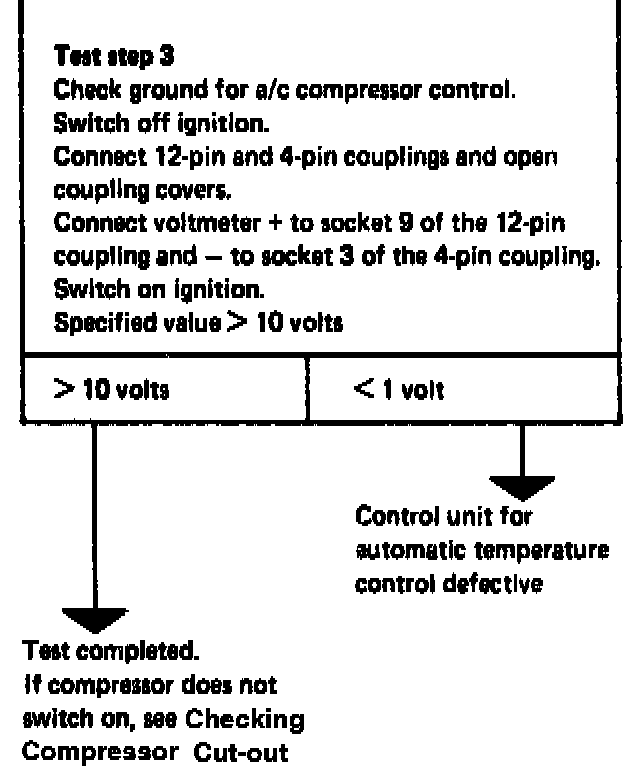

Test Step 3
