With A/C

Data:
Resistance at °C ambient temperature
+ 15 °C
- 15.7 ± 0.5 kohms
+25 °C
- 10.0 ± 0.5 kohms
+35 °C
- 6.5 ± 0.5 kohms
+80 °C
- 1.5 ± 0.5 kohms

Removal:
1. Remove radio.
2. Remove ashtray.

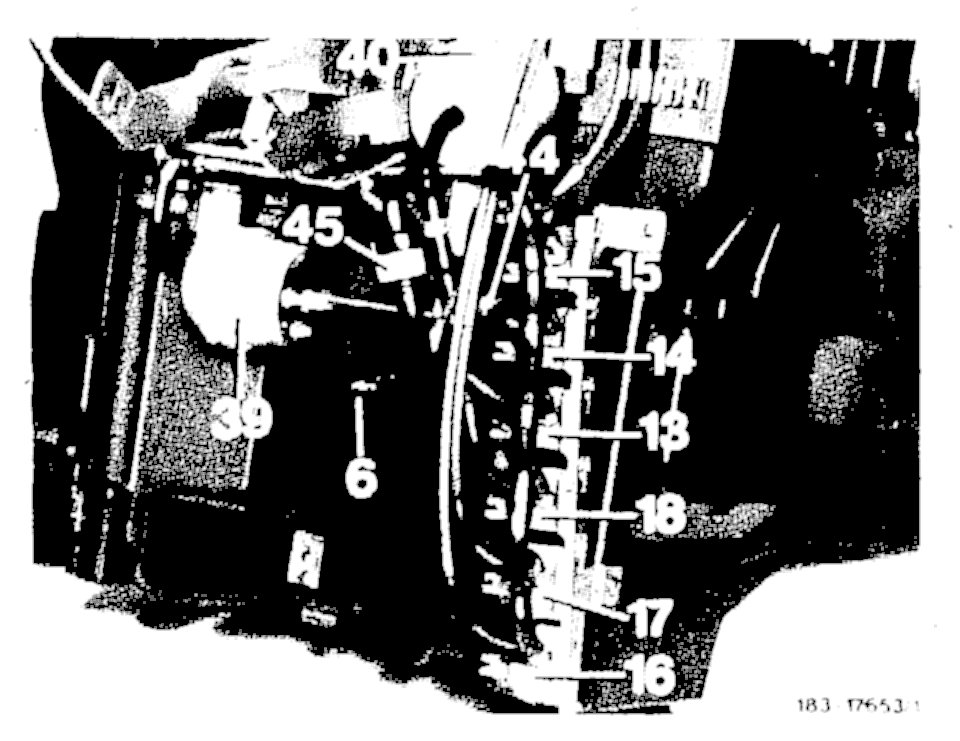

3. Pull 2-point plug from temperature sensor (6) and then pull temperature sensor out of heater box.

Installation:
4. Test temperature sensor (6) with ohmmeter. Then slip sensor into heater box and mount 2-point plug.
5. Install radio.
6. Install ashtray.
7. Check automatic climate control for function.

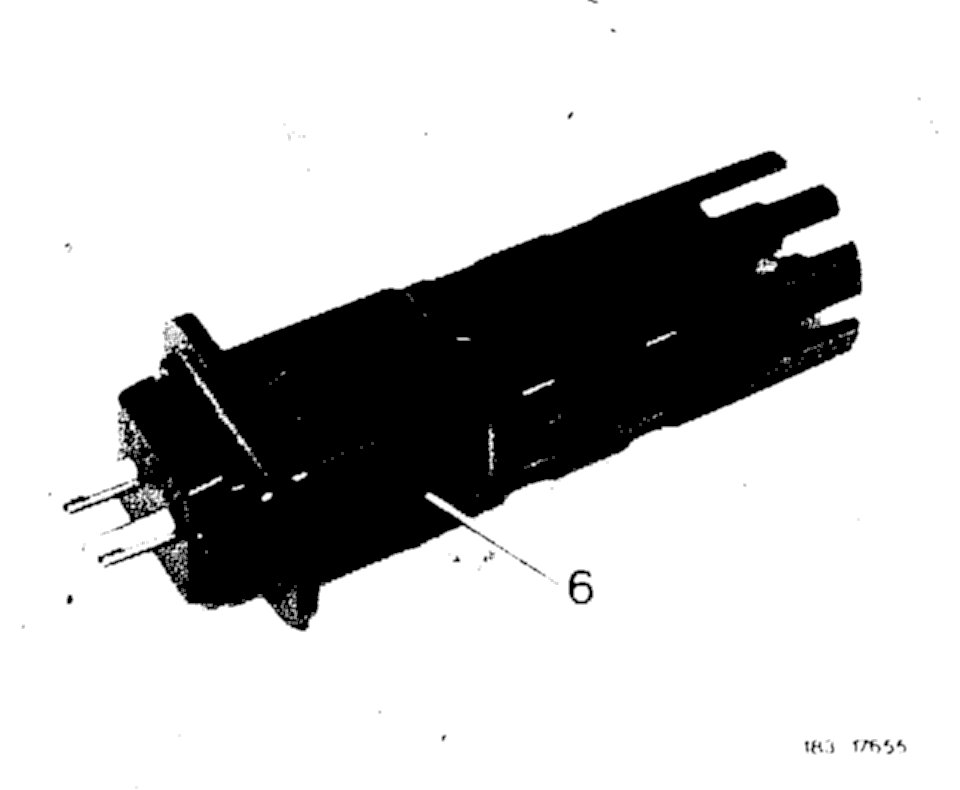

Temperature sensor up to 12/80

Note: With modified temperature sensor (Fig.), starting 01/81 for heat exchanger note that the bent part is pointing to the right in relation to driving direction.

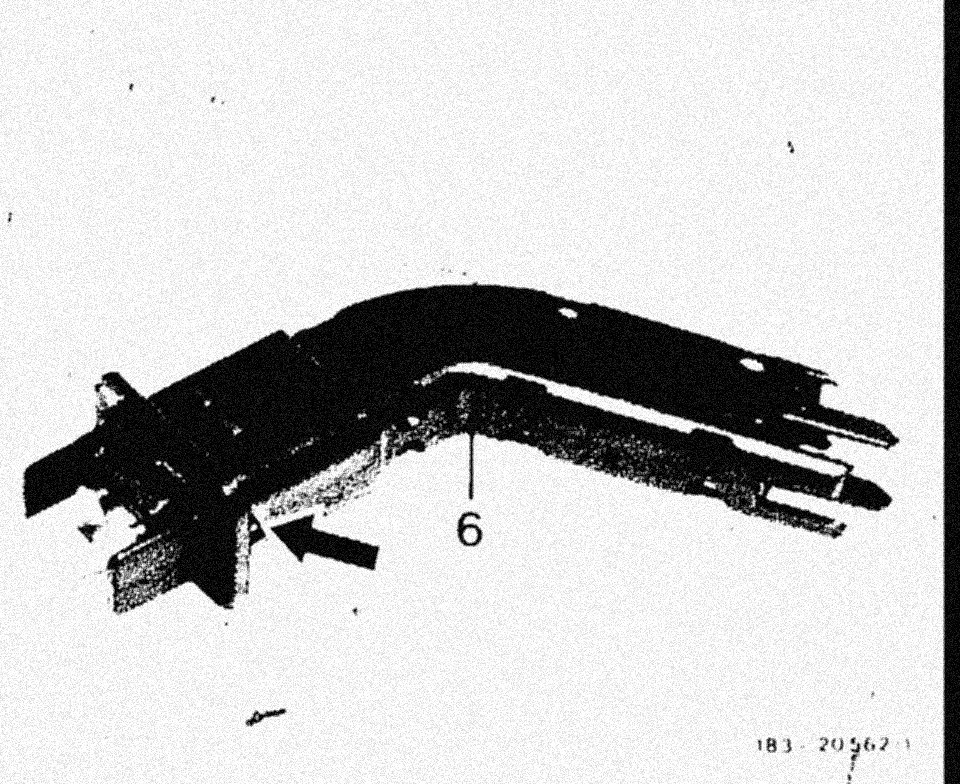

Temperature sensor starting 01/81
