Multi Point System

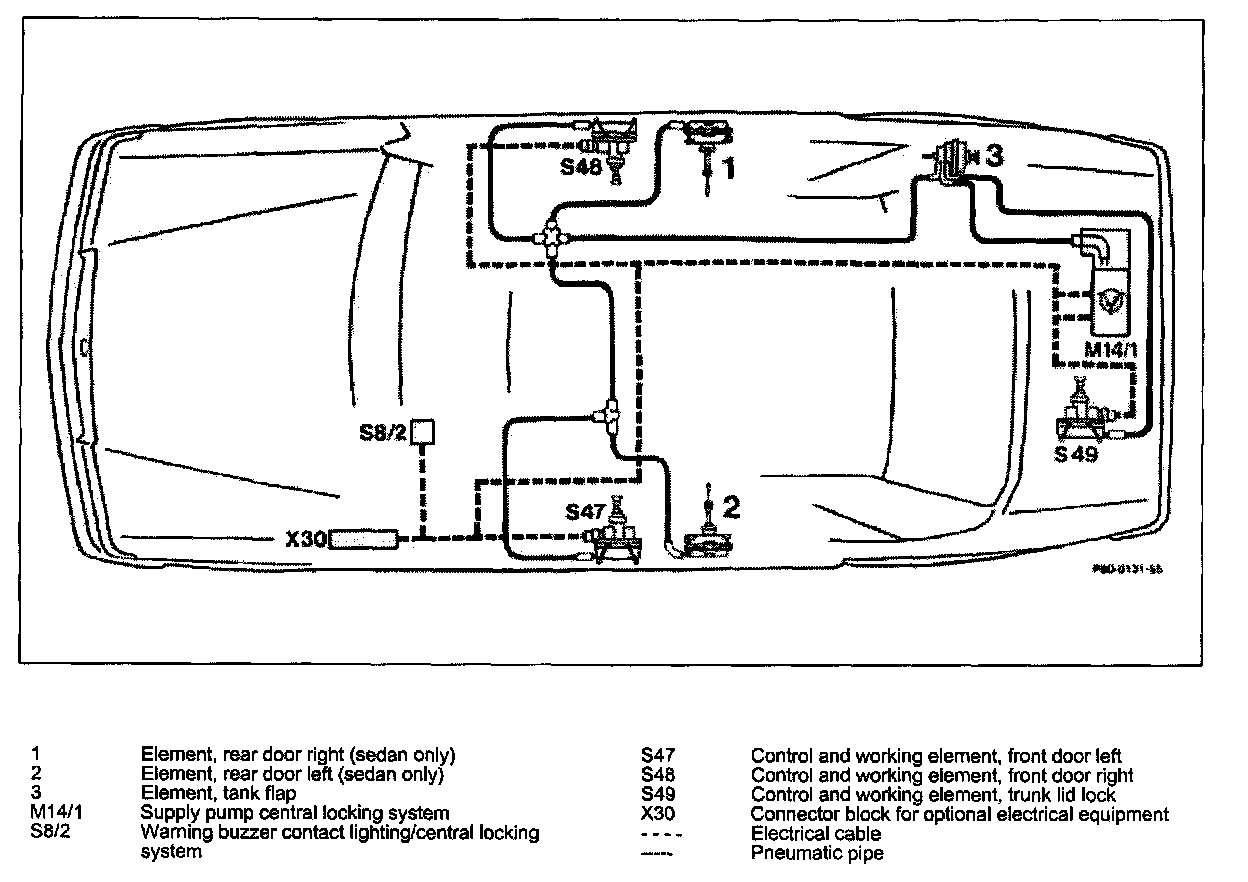

Function diagrams
A.
Vehicles with lefthand drive up to approx. 08/85
B.
Vehicles with lefthand drive as of approx. 09/85
