Home >> Mercedes Benz >> 1987 >> 190D 2.5 Turbo (201.128) L5-2.5L DSL Turbo (602.961) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Coolant Temperature Sensor >> Locations

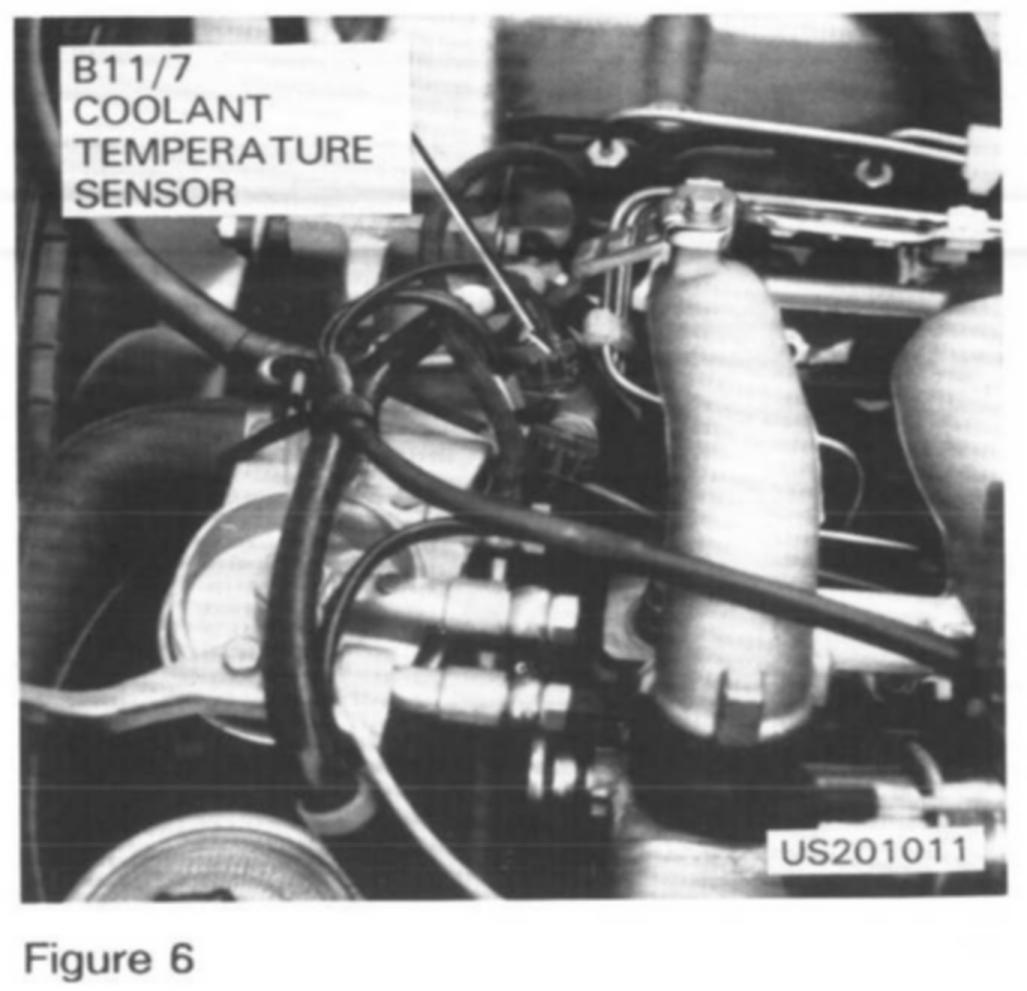

Coolant Temperature Sensor: Locations




Component ID: B11/7
Component Name: Preglow system temperature sensor
Component Location: Top right side of engine
