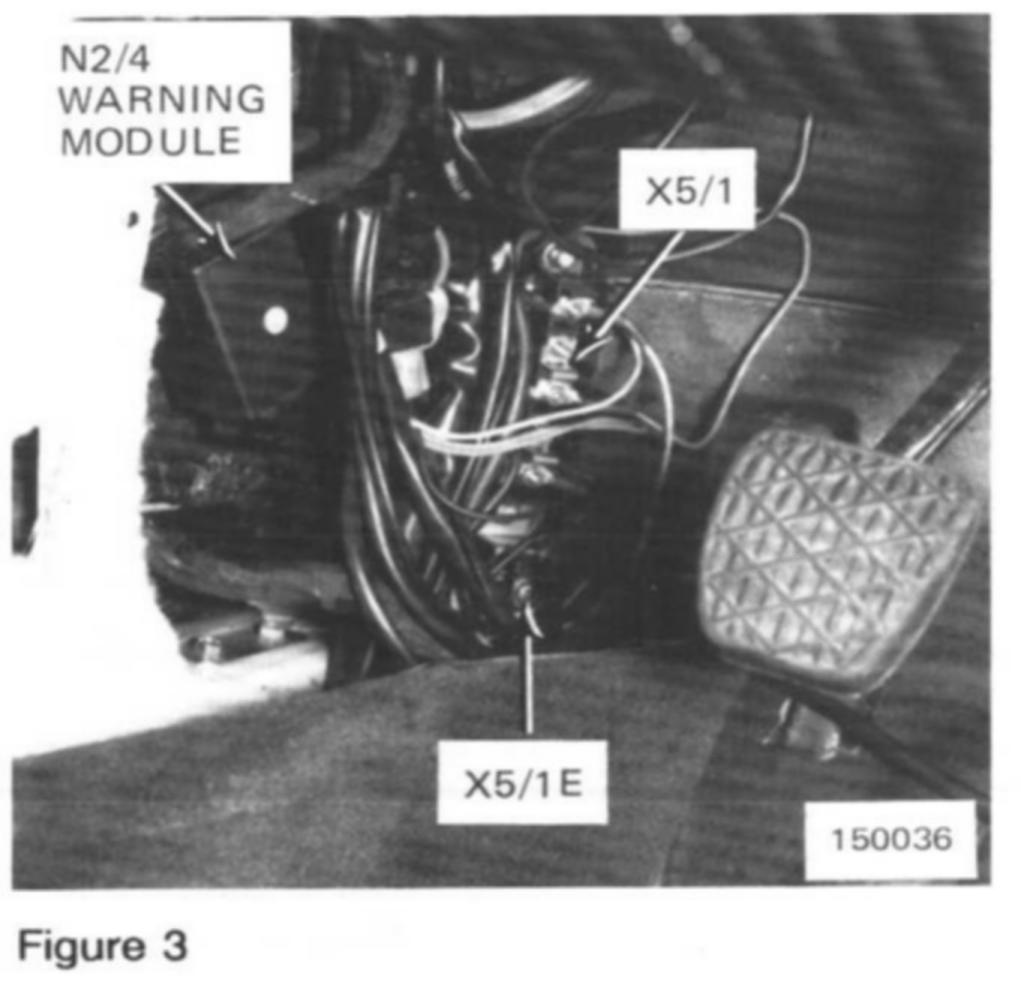

Warning Module (Seat Belts, Keys, Lights)

Component ID: N2/4
Component Name: Warning module (seat belts, keys, lights)
Component Location: Left front footwell area, behind left kickpanel
