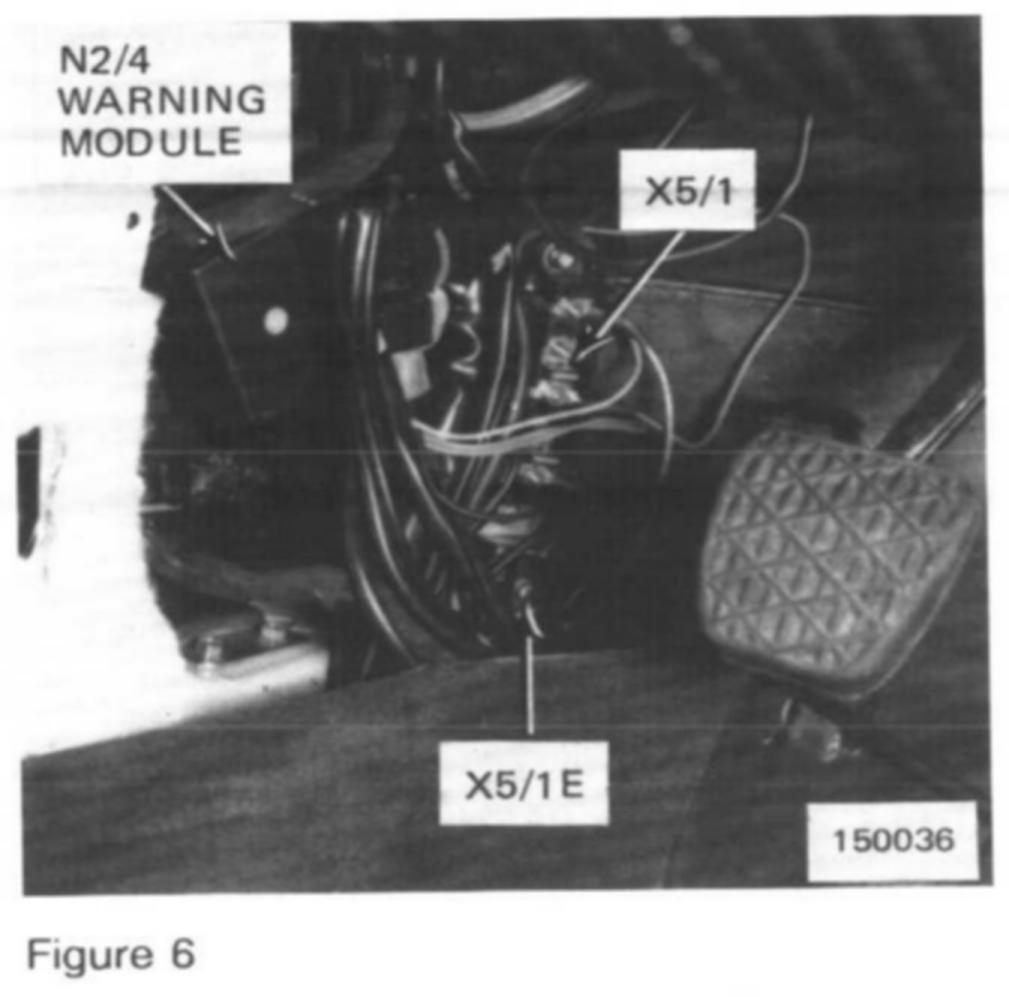

Warning Module




Component ID: N2/4
Component Name: Warning module (seat belts, keys, lights)
Component Location: Left front footwell, behind left kick panel
