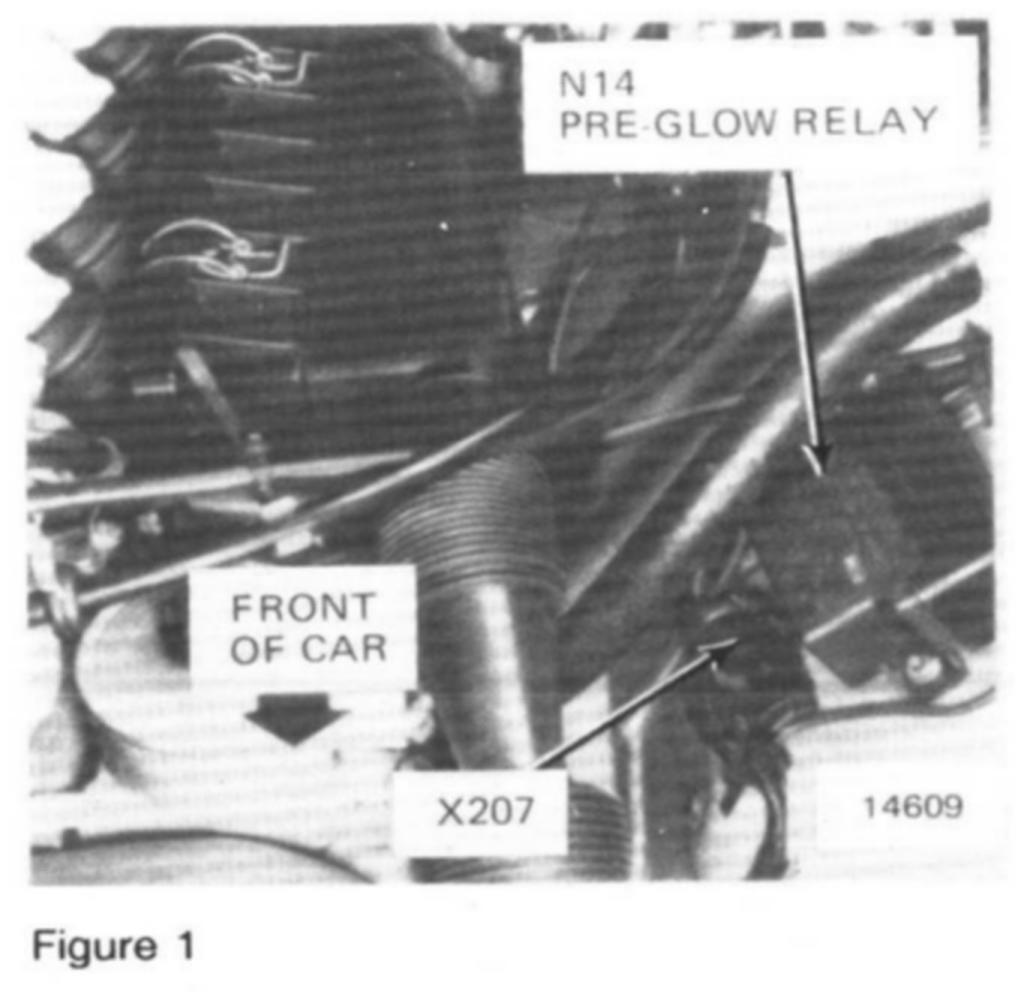

Glow Plug Relay: Locations




Component ID: N14
Component Name: Preglow time relay
Component Location: Left side of engine compartment, on inner fender
