Home >> Mercedes Benz >> 1987 >> 190D 2.5 Turbo (201.128) L5-2.5L DSL Turbo (602.961) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> Diagrams >> 2.5D (Non-Turbo)

2.5D (Non-Turbo)

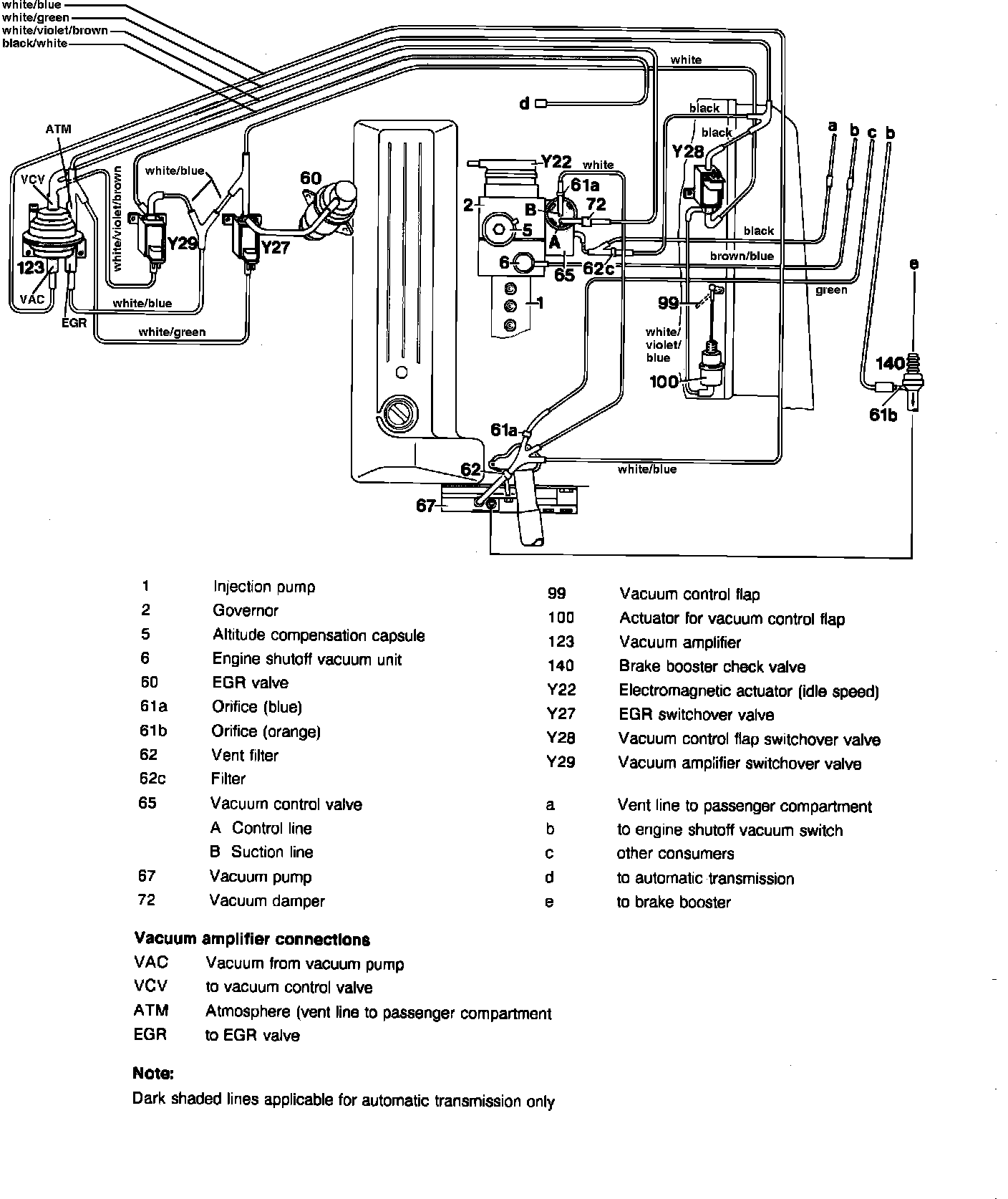

Fig. 67, Vacuum line routing:
