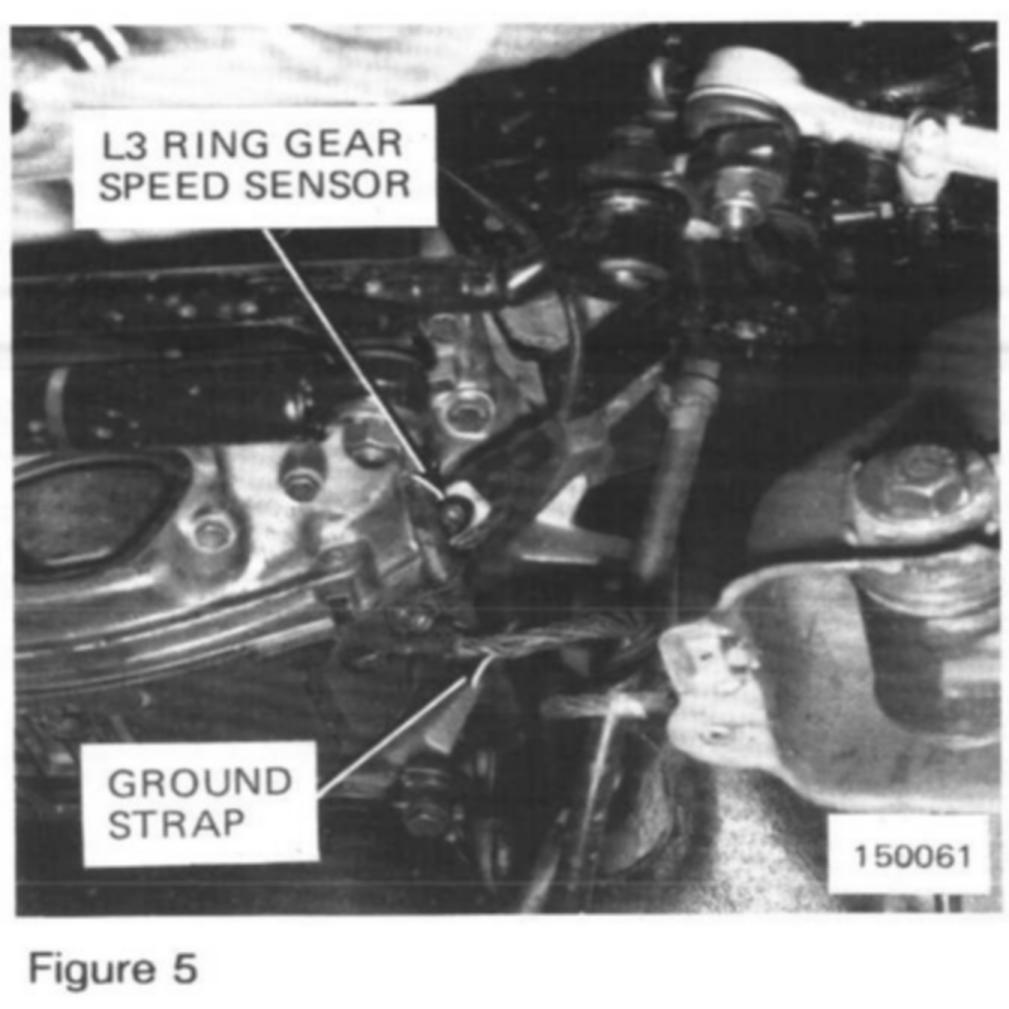

Starter Ring Gear Speed Sensor

Component ID: L3
Component Name: Starter ring gear speed sensor
Component Location: Upper left side of Bell Housing
