Mercedes Benz
>>
1987
>>
190D 2.5 Turbo (201.128) L5-2.5L DSL Turbo (602.961)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Speed/Throttle Actuator - Electronic
>>
Testing and Inspection
>>
Electronic Idle Speed Control Test
>>
Wiring Diagram, Electronic Idle Speed Control
Wiring Diagram, Electronic Idle Speed Control

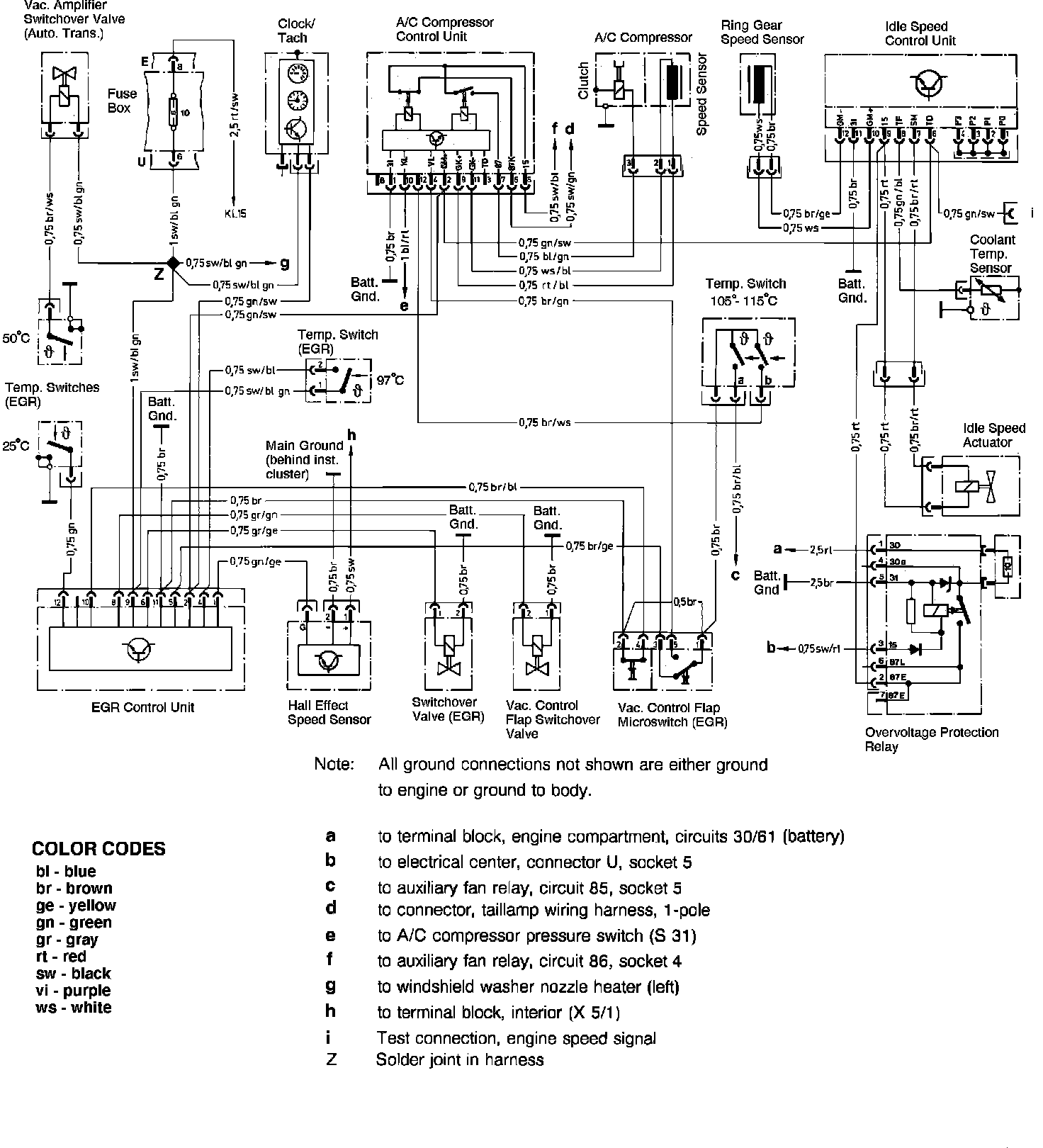

Fig. 21 Electronic Idle Speed Control Wiring Diagram:
