Idle Speed/Throttle Actuator - Electronic: Locations

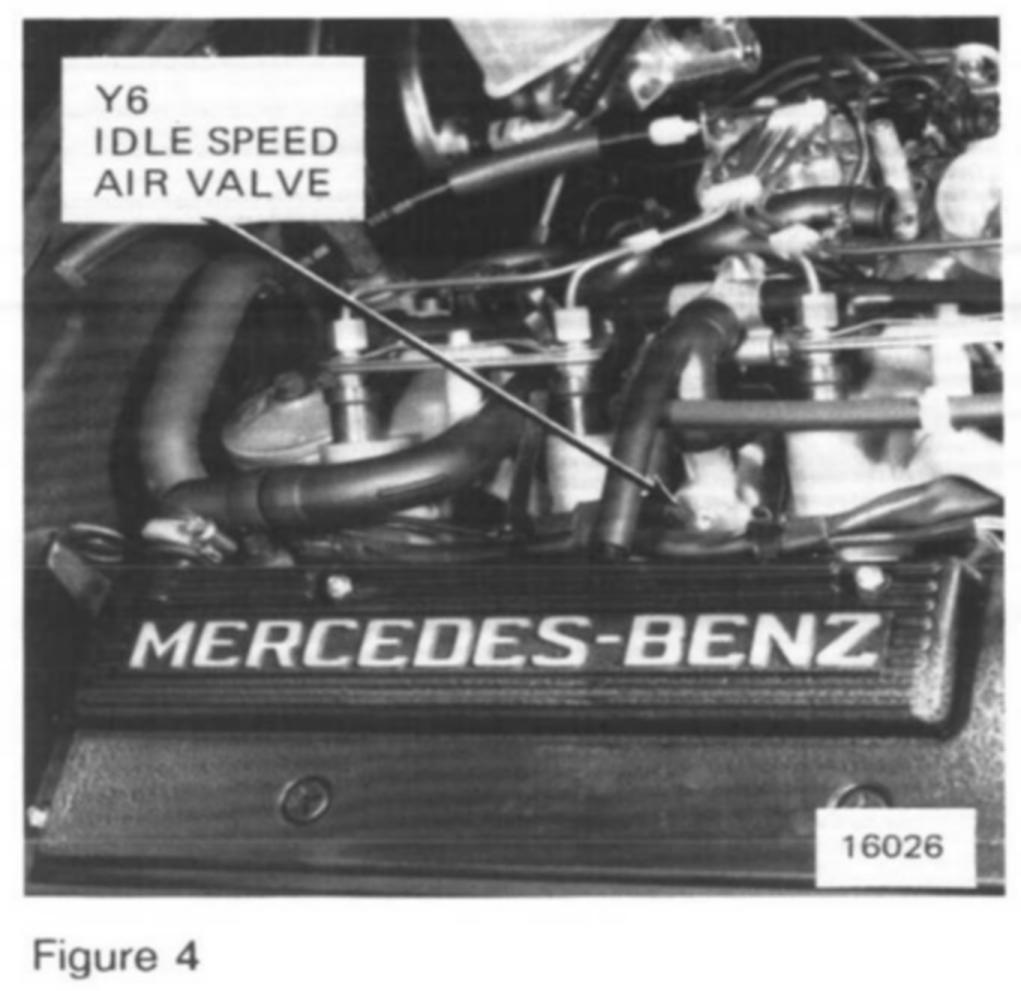

Component ID: Y6
Component Name: Idle speed air valve
Component Location: Left side of engine, behind air flow sensor housing
