Electronic Diesel System (EDS)

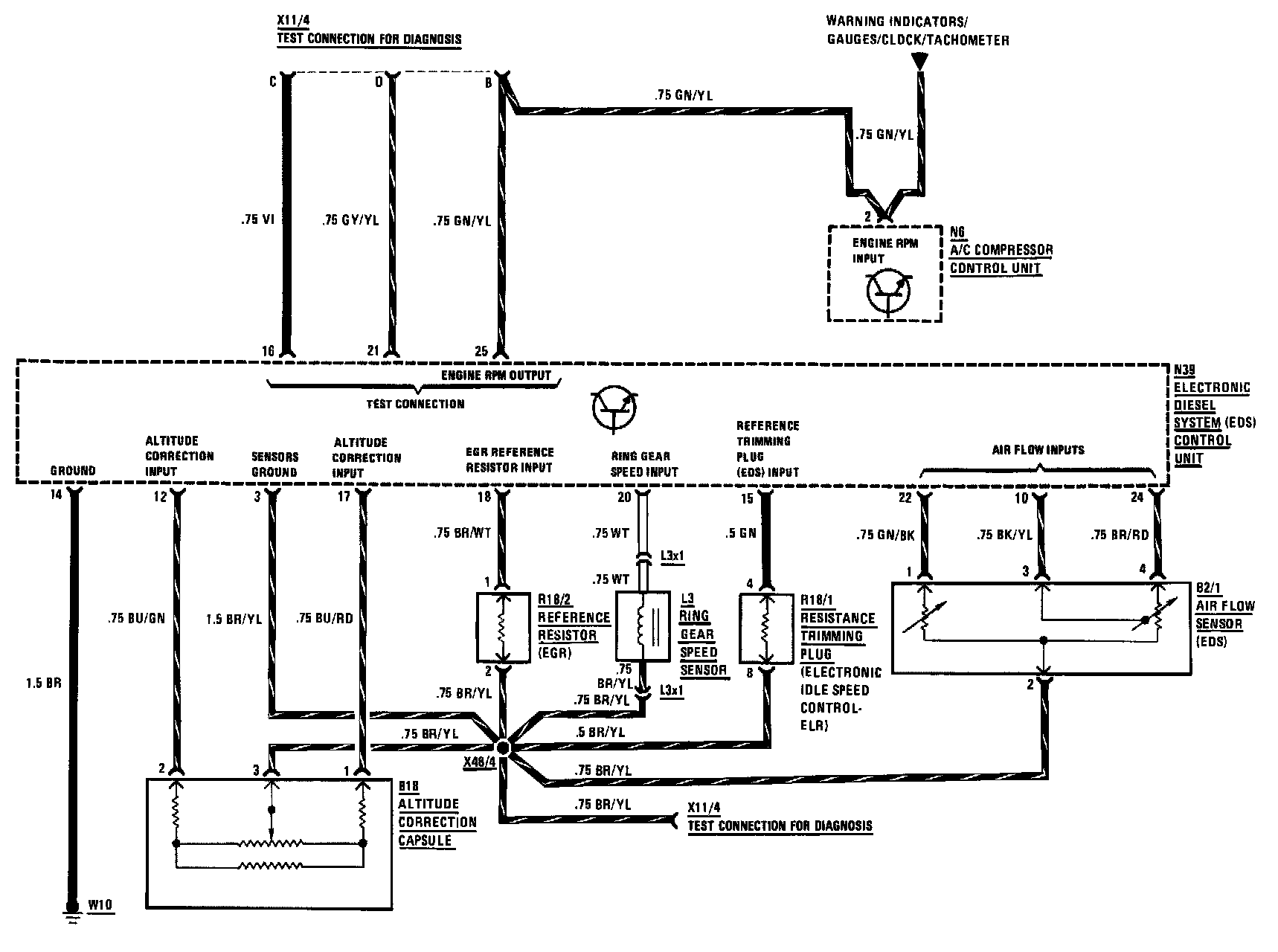

Part 1, Electronic Diesel System (EDS):

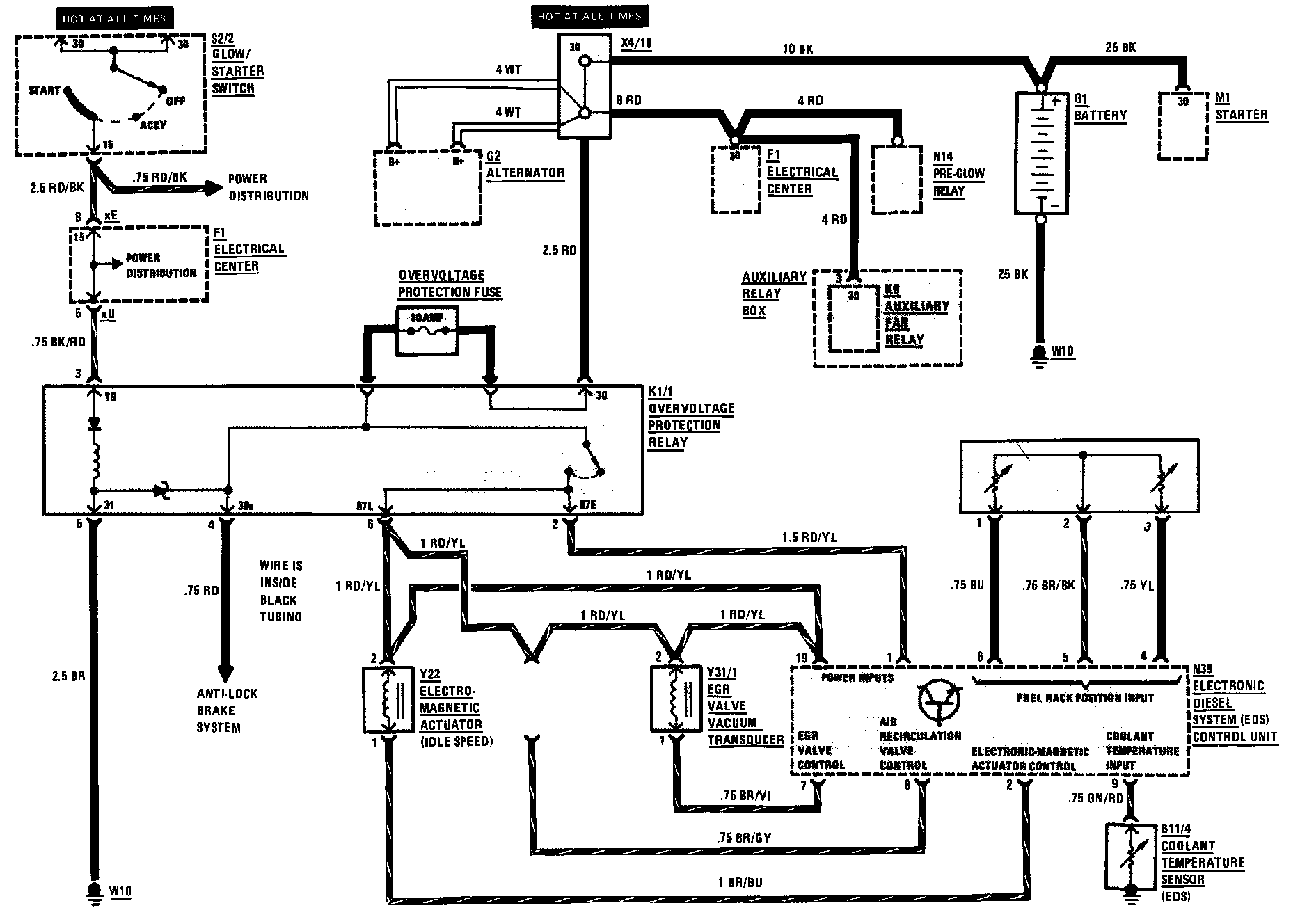

Part 2, Electronic Diesel System (EDS):
