Home >> Mercedes Benz >> 1987 >> 190D 2.5 Turbo (201.128) L5-2.5L DSL Turbo (602.961) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Courtesy Lights

Courtesy Lights

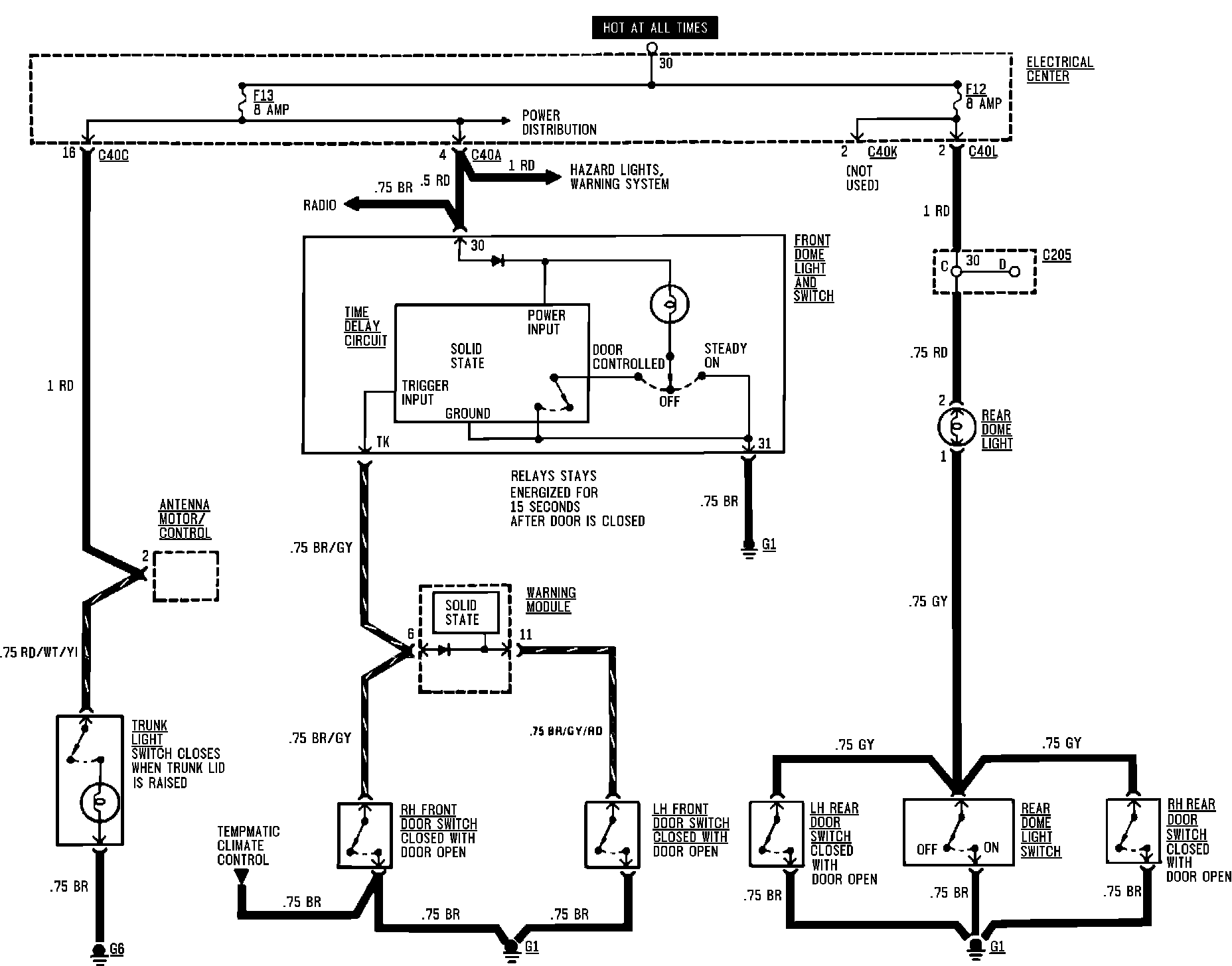

Fig. 21 Courtesy Lamp & Trunk Lamp Wiring:
