Adjustment of Rear Springs

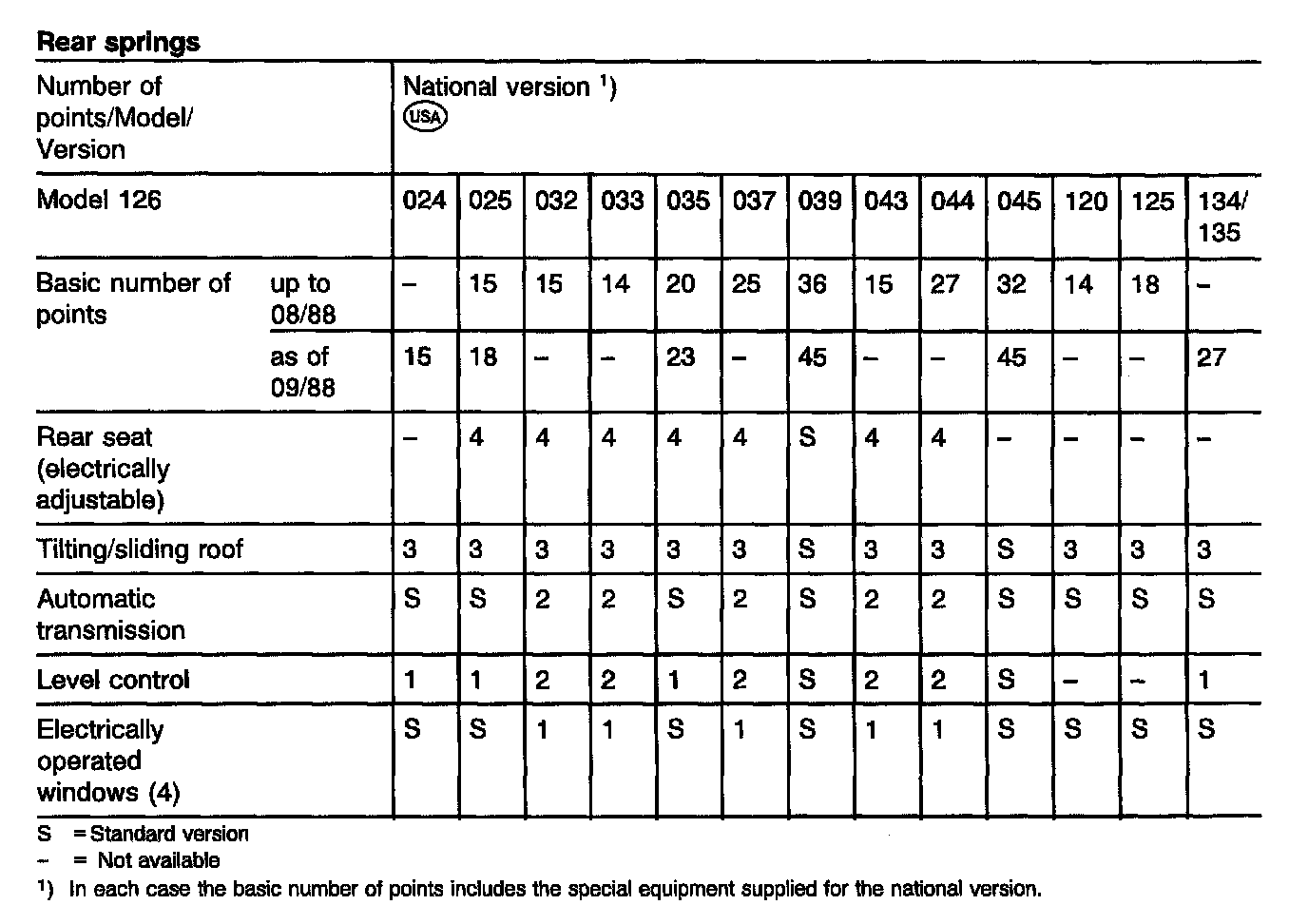

Adjustment of rear springs

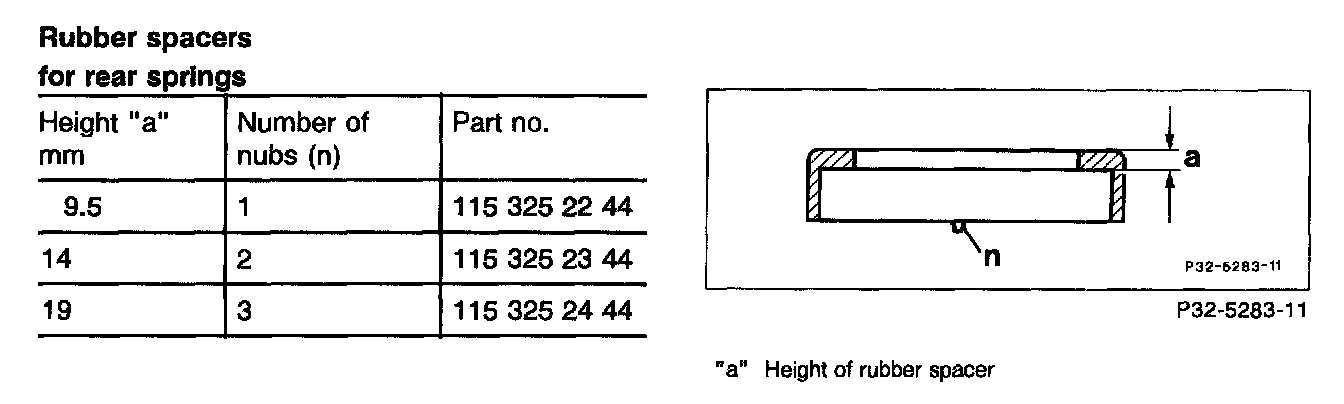

Cross reference of rear springs - rubber spacers
