ABS - Front Speed Sensors Modified, Resistance

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: September 1986 (supersedes 42/94, Feb. 1986) REF.NO. 42/94a


SUBJECT: MODIFIED SPEED SENSORS ON FRONT AXLE MODELS 107, 124 AND 201 WITH ABS


Modified speed sensors have been installed in models 124 and 201 as of May 1985 and as of September 1985 in model 107.

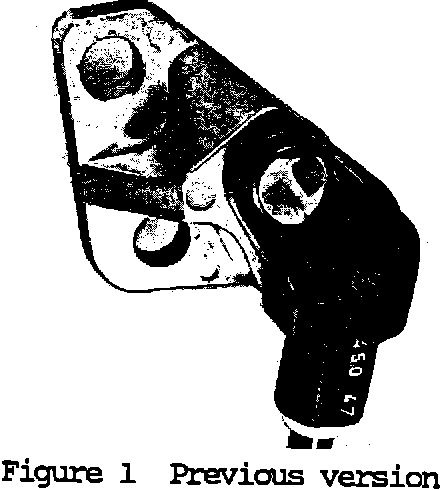

FIGURE 1 - PREVIOUS VERSION:

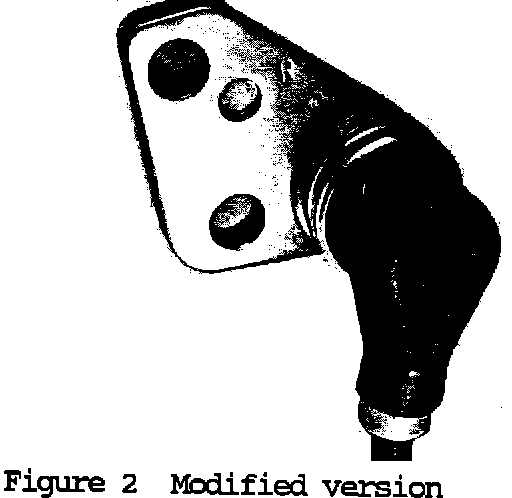

FIGURE 2 - MODIFIED VERSION:

The new sensors have a steel mounting flange and one tooth (previously aluminum mounting flange and two teeth). The internal resistance when checked with the ABS test adapter (126 589 09 21 00) "test steps 4 and 5" has also changed:

Internal Resistance: 850 - 2300 ohms

This test specification is valid for both modified and previous version sensors..
The previous and modified speed sensors are interchangeable.


Parts Information


Model Part Name Part Number


107 Speed sensor, left 107 540 02 17
Speed sensor, right 107 540 03 17

124* Speed sensor, left 124 540 01 17
Speed sensor, right 124 540 02 17

201* Speed sensor, left
201 540 07 17
Speed sensor, right 201 540 08 17

*Optionally supplied in steel or aluminum


Time Allowance

See Time Guide Oper. No's. 42-0100 to 0104
