Wheel Speed Sensors

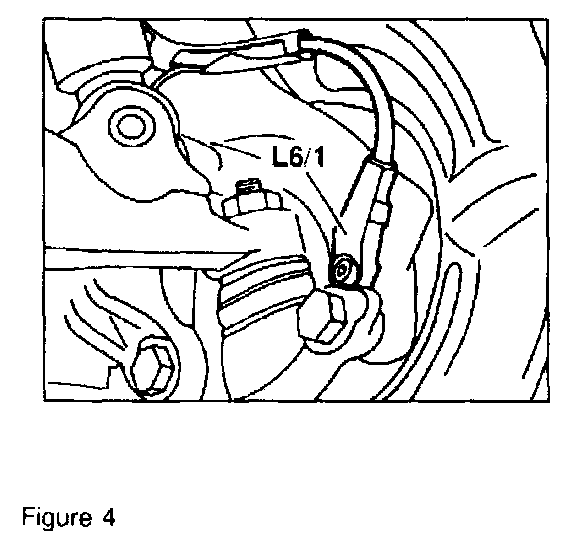

Component ID L6/1
Component Name Left front wheel speed sensor
Component Location Left front steering knuckle

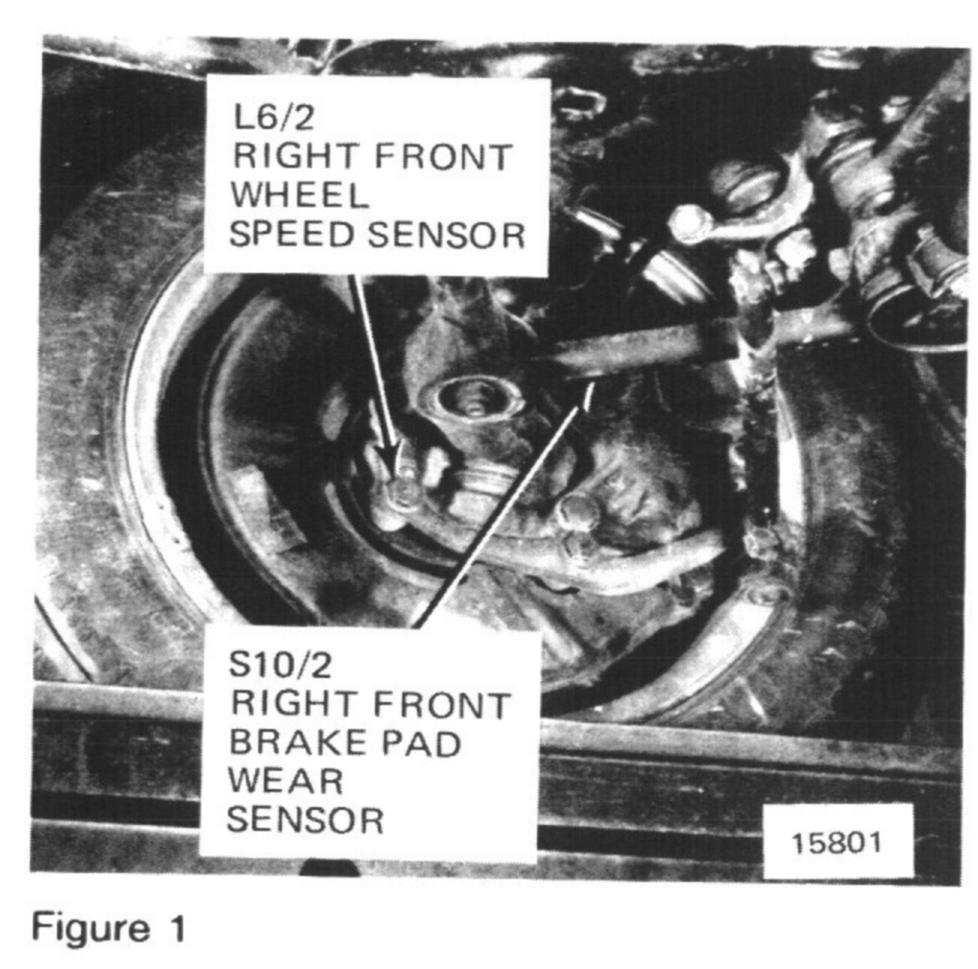

Component ID L6/2
Component Name Right front wheel speed sensor
Component Location Right front steering knuckle

Component ID L6/3
Component Name Left rear wheel speed sensor
Component Location Left side of rear axle center piece

Component ID L6/4
Component Name Right rear wheel speed sensor
Component Location Right side of rear axle center piece
