300SDL (126.125) L6-3.0L DSL Turbo (603.961)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Glow Plug System
>>
Glow Plug Relay
>>
Locations

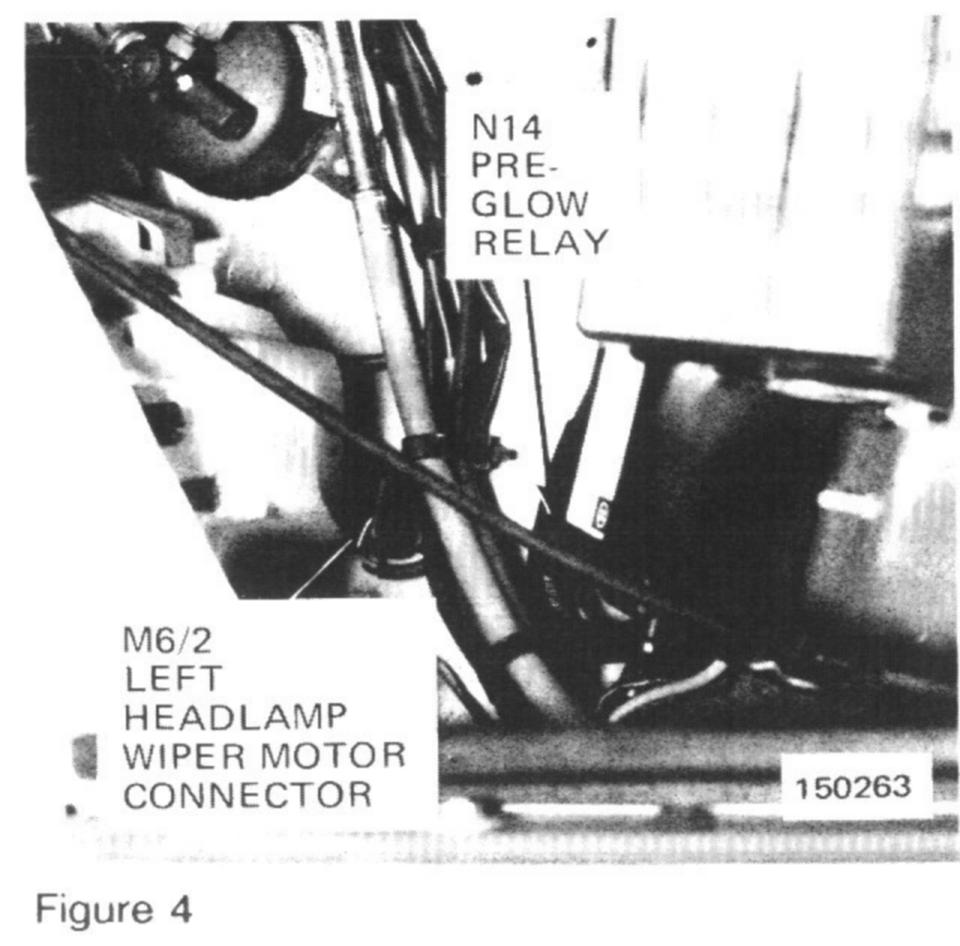

Glow Plug Relay: Locations
Component ID
N14
Component Name
Preglow time-limit relay
Component Location
Left front of engine compartment
