Reconditioning

PRECEDING WORK:

- Removal and installation of timing device.

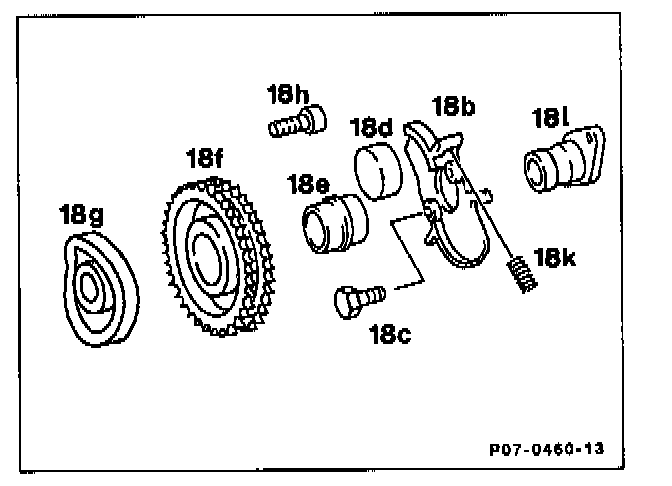

REMOVAL

- Bolt (18h) M6 x 16.
Tightening torque 15 Nm.

- Drive hub (181).

- Bolt (18c) M8 x 16.
Tightening torque 25 Nm.

- Cam (18g)
Examine for signs of wear.

- Sprocket wheel (18f).
Examine for signs of wear.

- Bush (18e).
Examine for signs of wear.

- Segment flange (18e).
Examine for signs of wear.

- Compression spring (18k).

- Flyweight (18d) M8 x 16.
Examine for signs of wear.

INSTALLATION

- Reverse procedure.
