Engine Oil Viscosity, Check (DE-04.01)

Engine Oil Viscosity, Check (DE-04.01)

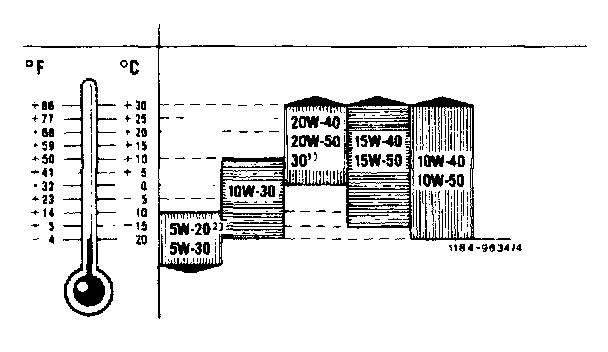

Recommended viscosity classes according to SAE, with prevailing ambient temperatures.
1) At constant ambient temperature above +30°C (86°F), SAE 40 oil can be used.
2) Do not use.

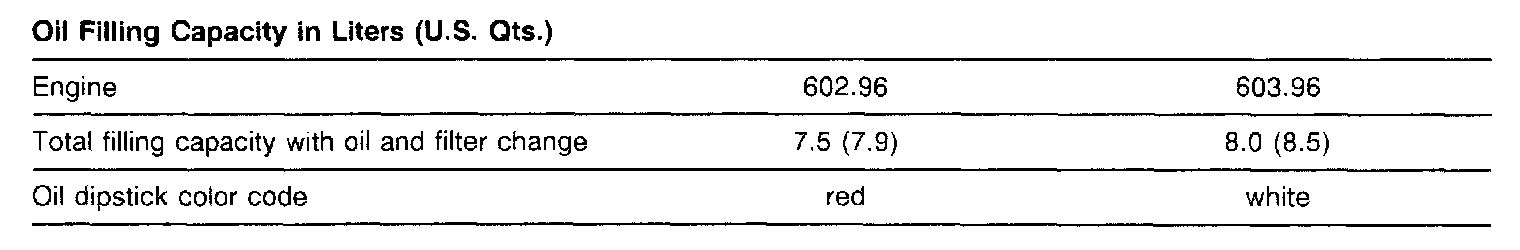

Oil Filing Capacity:

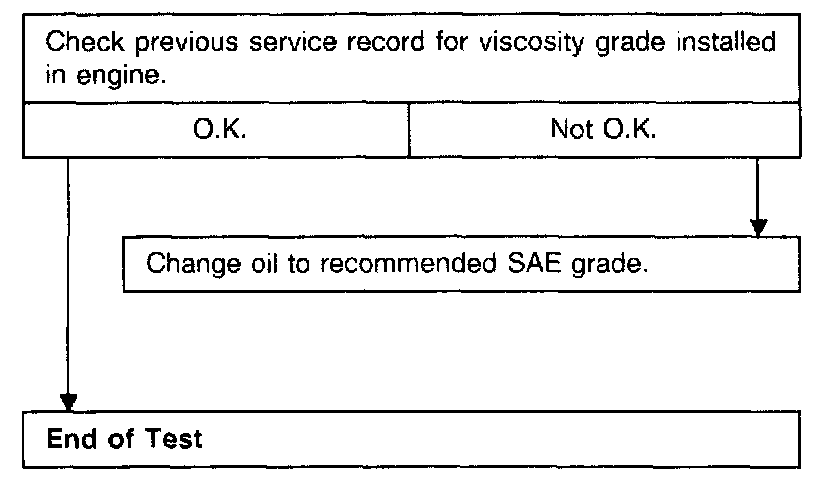

Test

Extremely cold weather will cause the oil to become increasingly viscous. The increased viscosity may prevent the engine from reaching the minimum rpm required for starting. Change to a lighter weight oil.
