Boost Pressure Test (DE-04.11)
Boost Pressure Test (DE-04.11)
Boost Pressure Test
(DE-04.11)

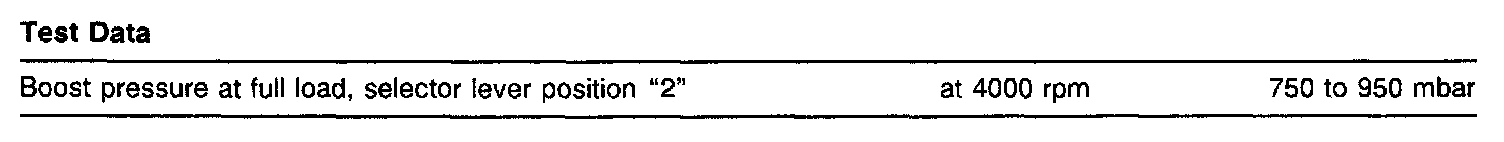

Test Data:

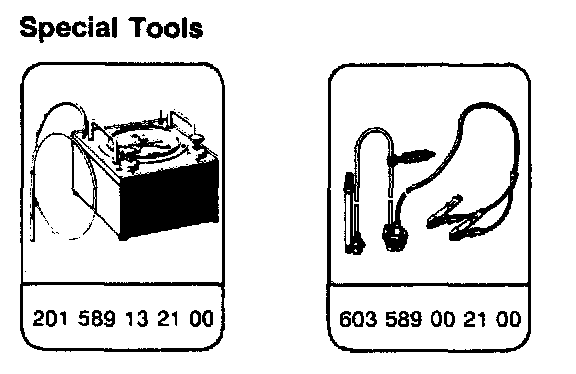

Special Tools:

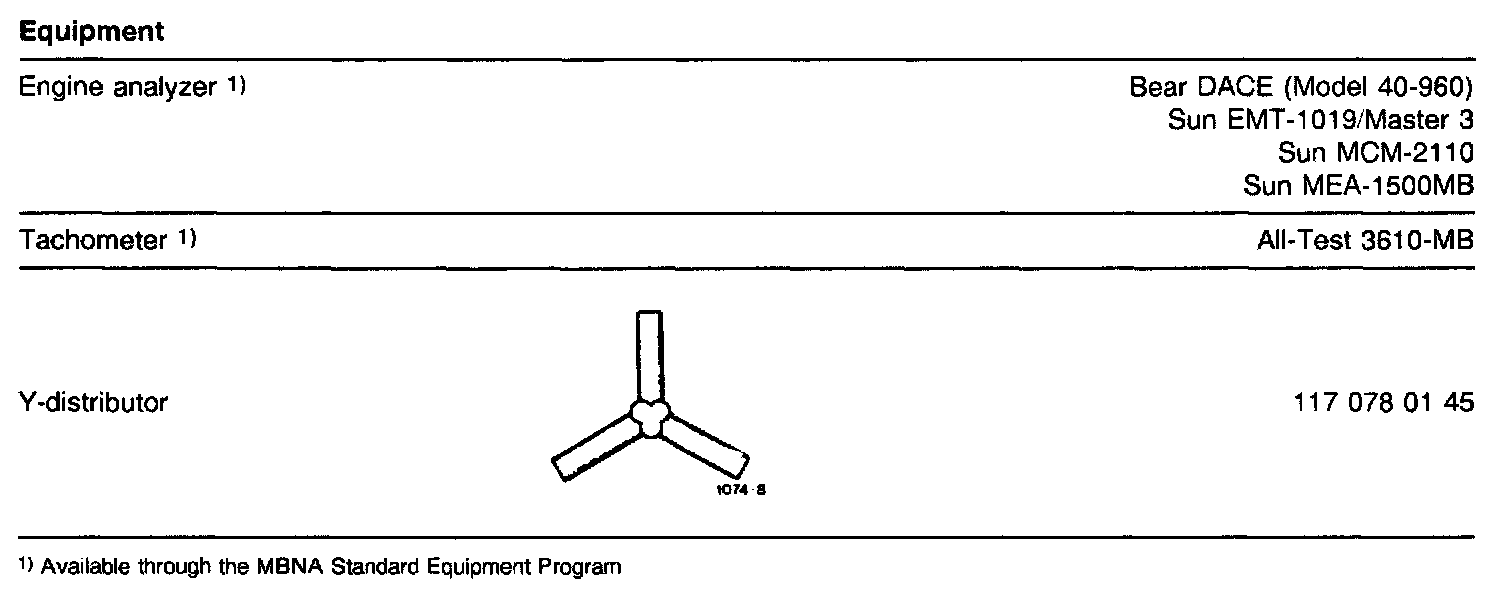

Equipment:

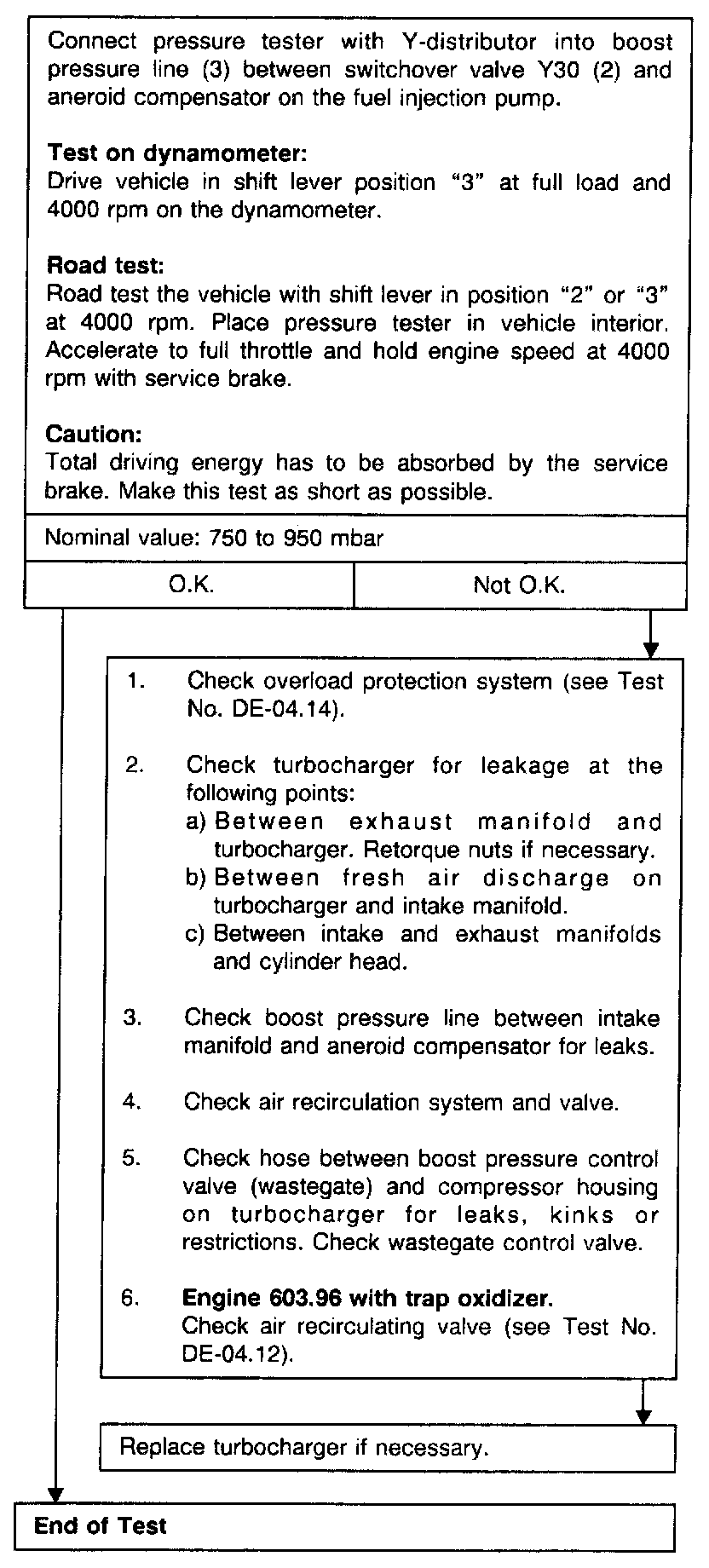

Test
