Test Compressor Cutoff If Electomagnetic Clutch Fails to Cut In

A. TESTING COMPRESSOR CUTOUT IF ELECTROMAGNETIC CLUTCH OF REFRIGERANT COMPRESSOR FAILS TO CUT IN

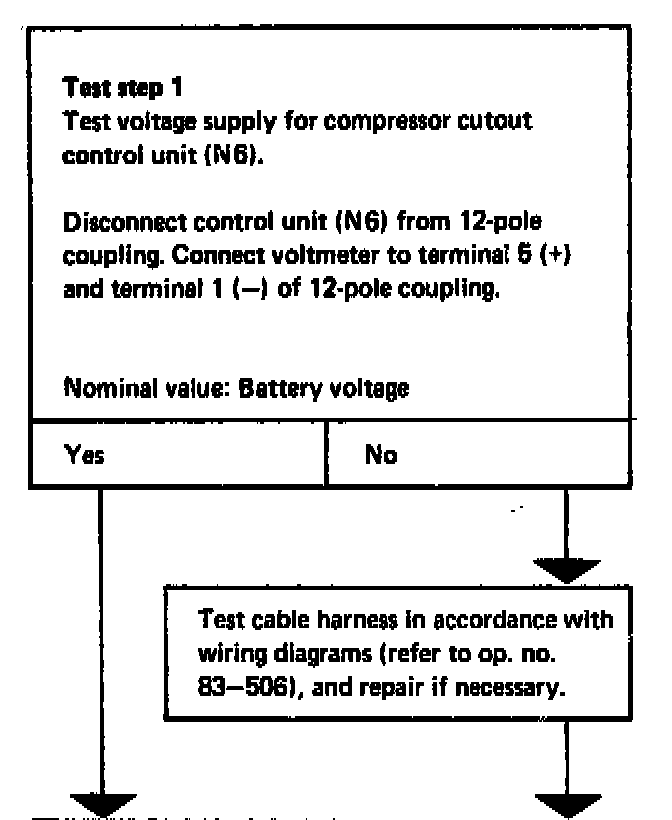

Test Step 1

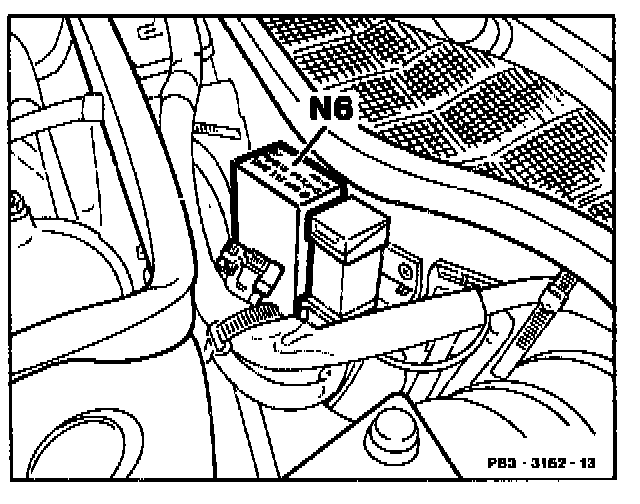

Compressor cutout control unit (N6)

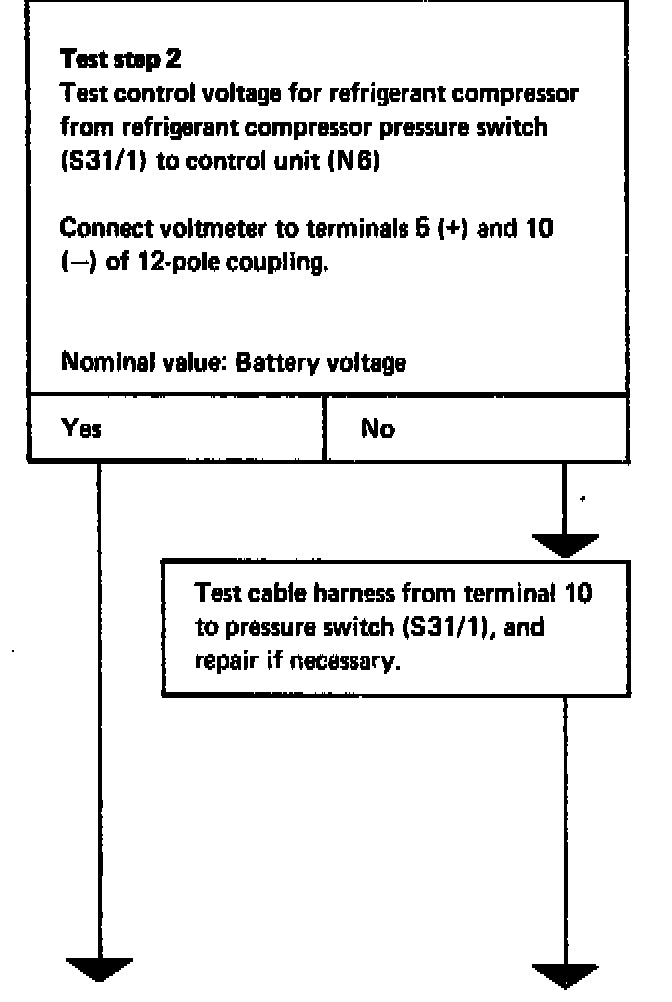

Test Step 2

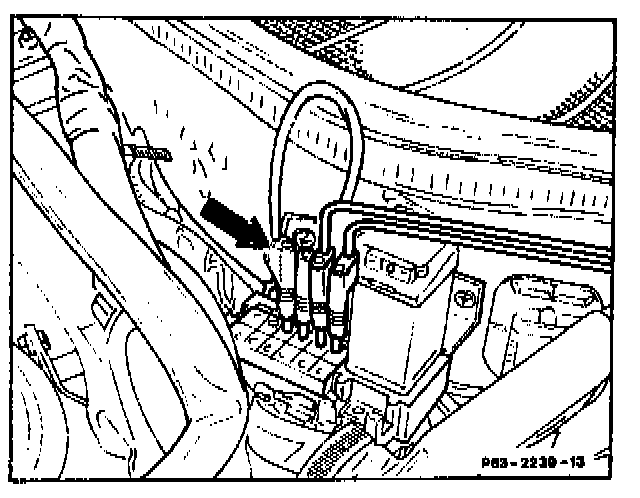

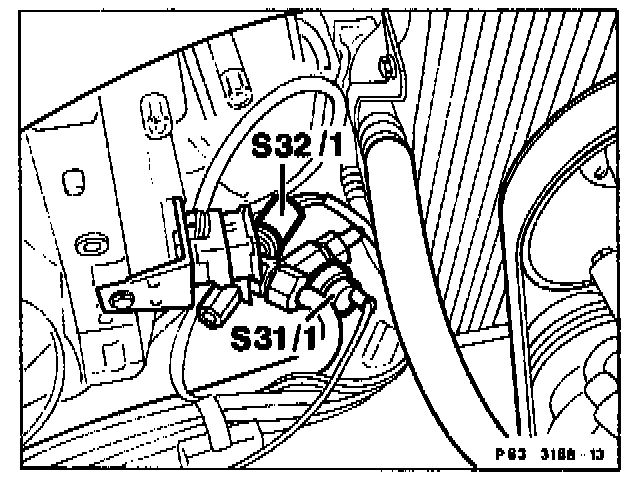

Compressor pressure switch (S31/1)

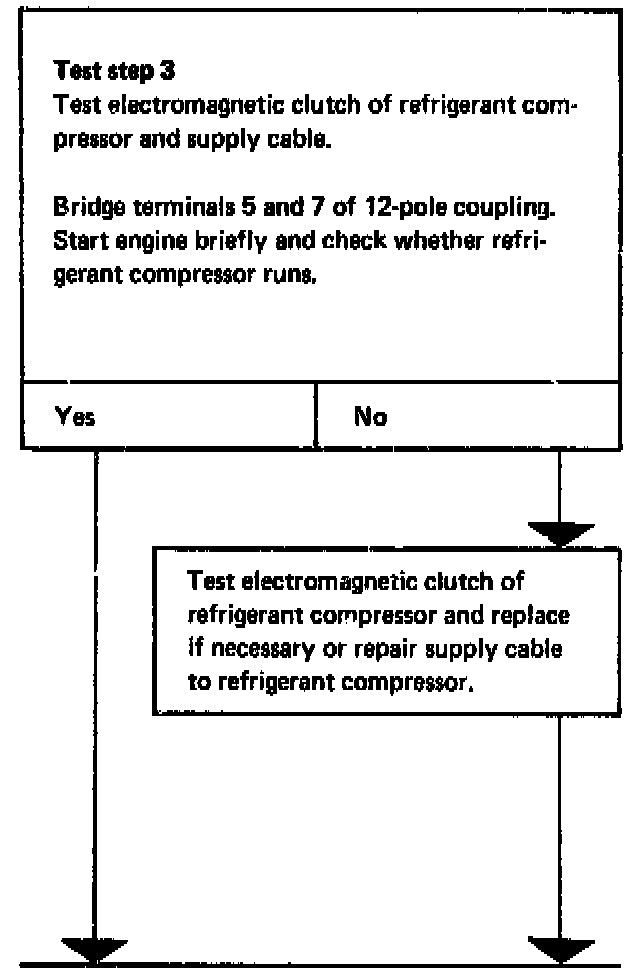

Test Step 3

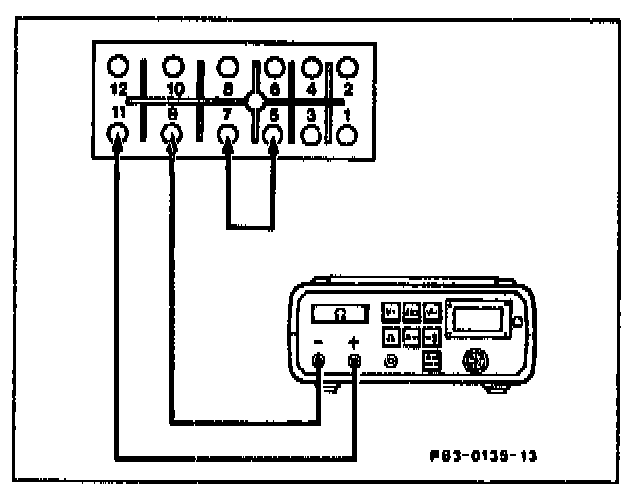

12-pole coupling

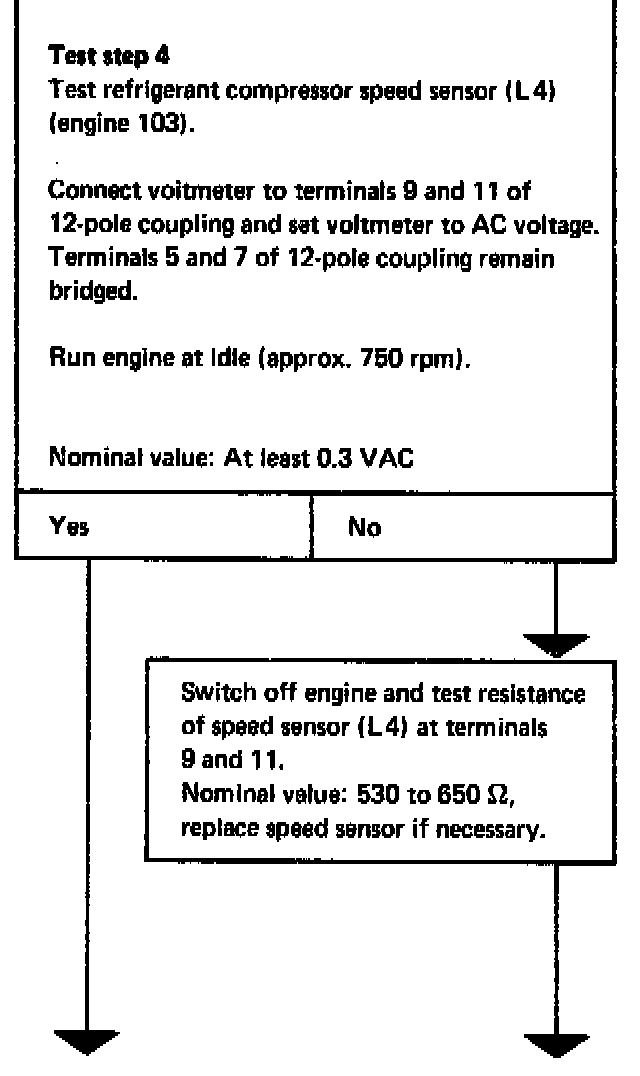

Test Step 4

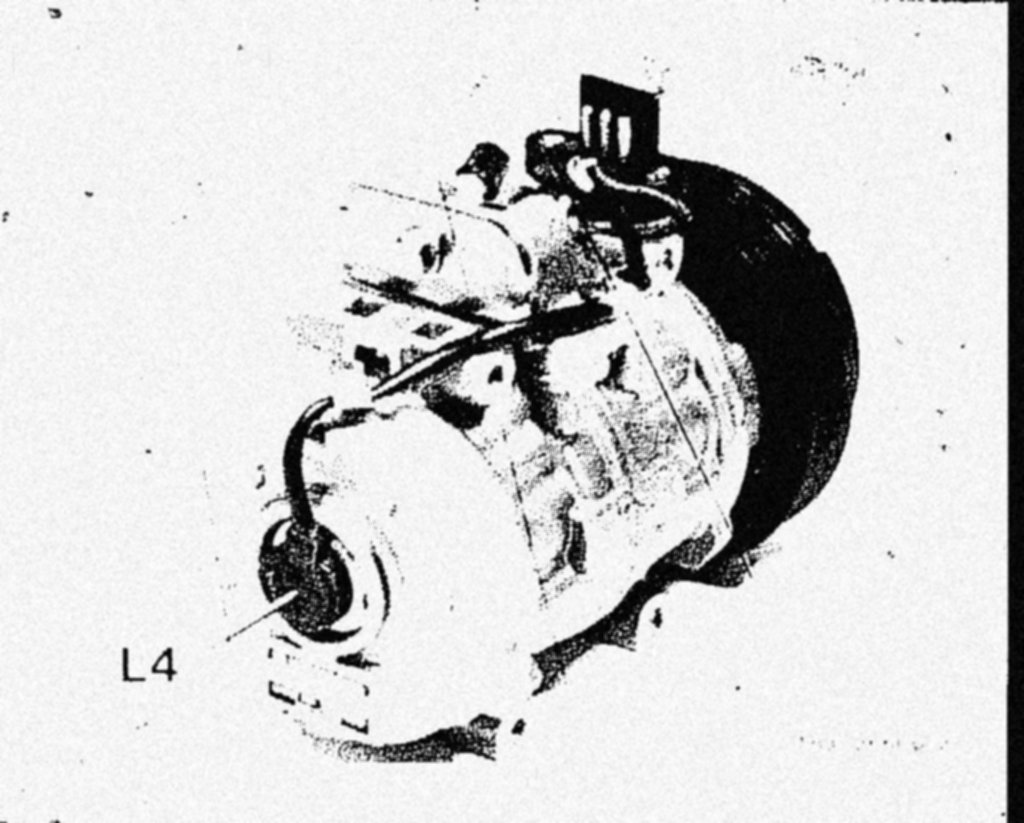

Compressor speed sensor (L4)






Compressor speed sensor (L4) terminal view

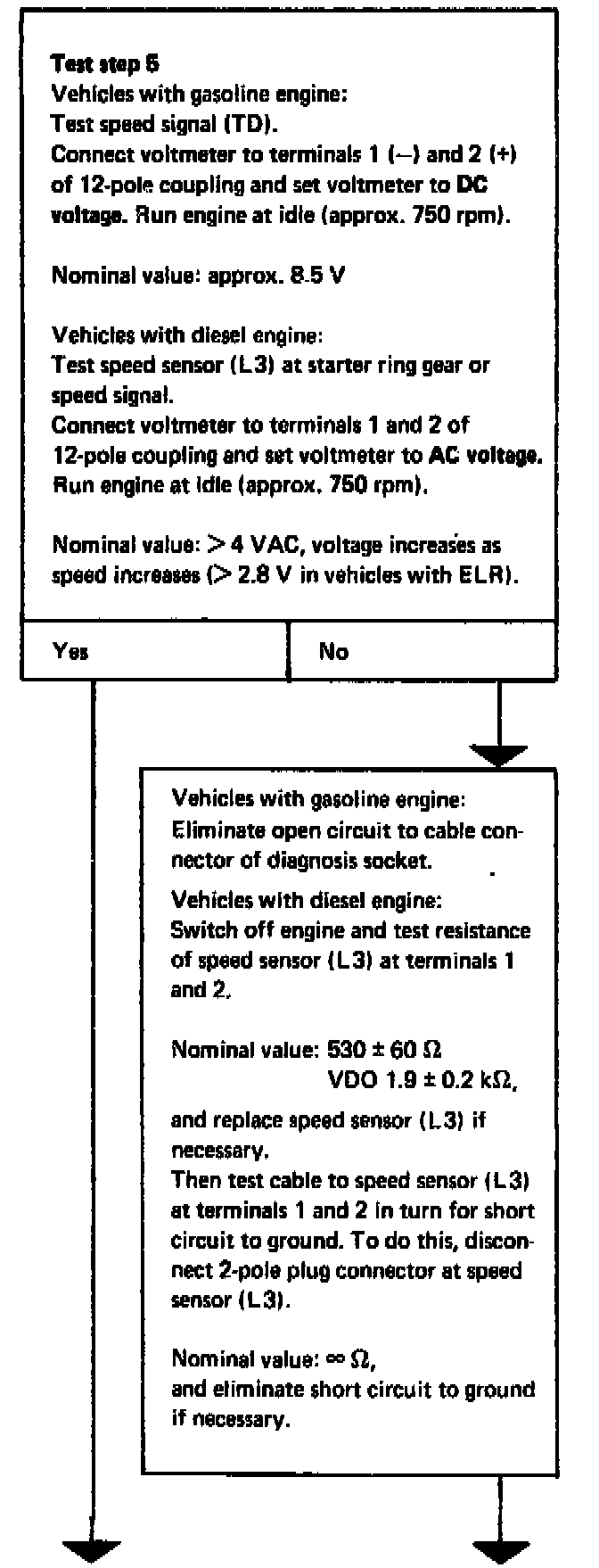

Test Step 5






Speed sensor (L3)

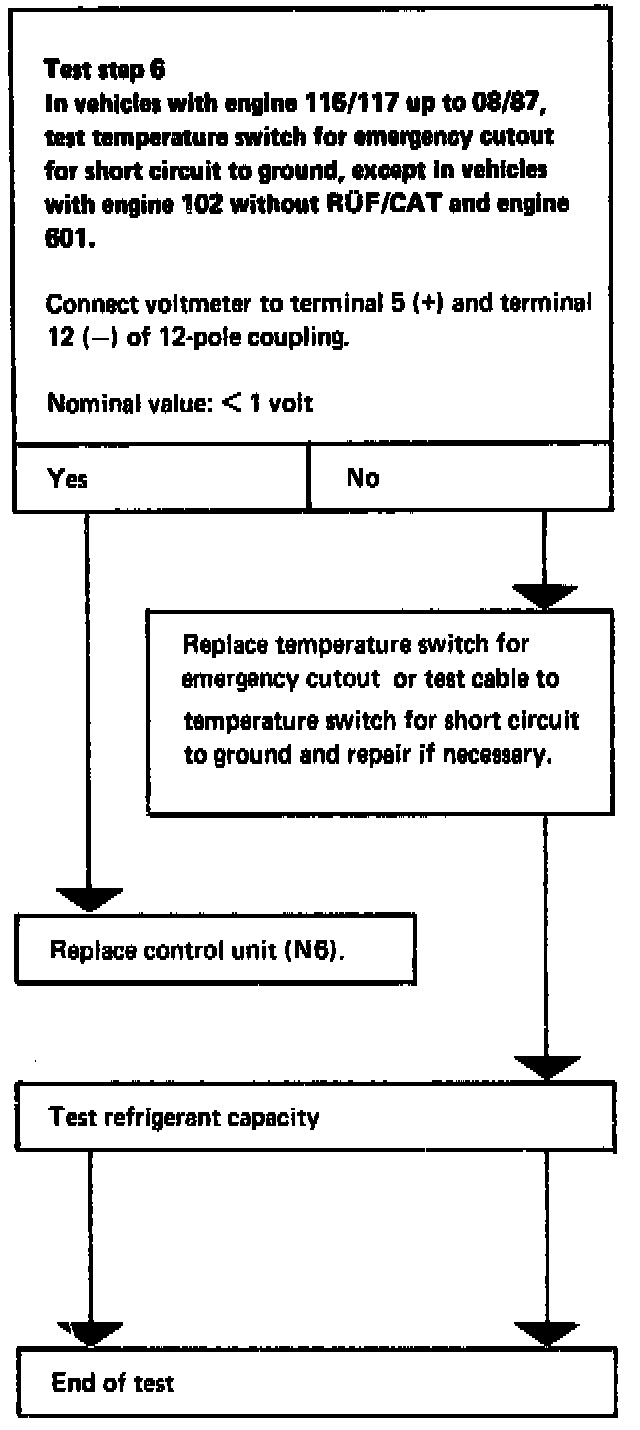

Test Step 6

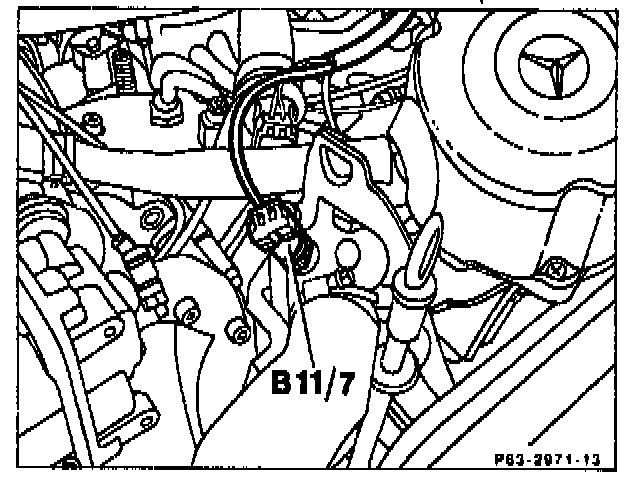

Engine 103






Engine 116/117
