300SDL (126.125) L6-3.0L DSL Turbo (603.961)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Test Procedures
>>
Automatic Air Conditioning (Auto A/C)
>>
Function Test of Total System and Remedies (with adaptor)
>>

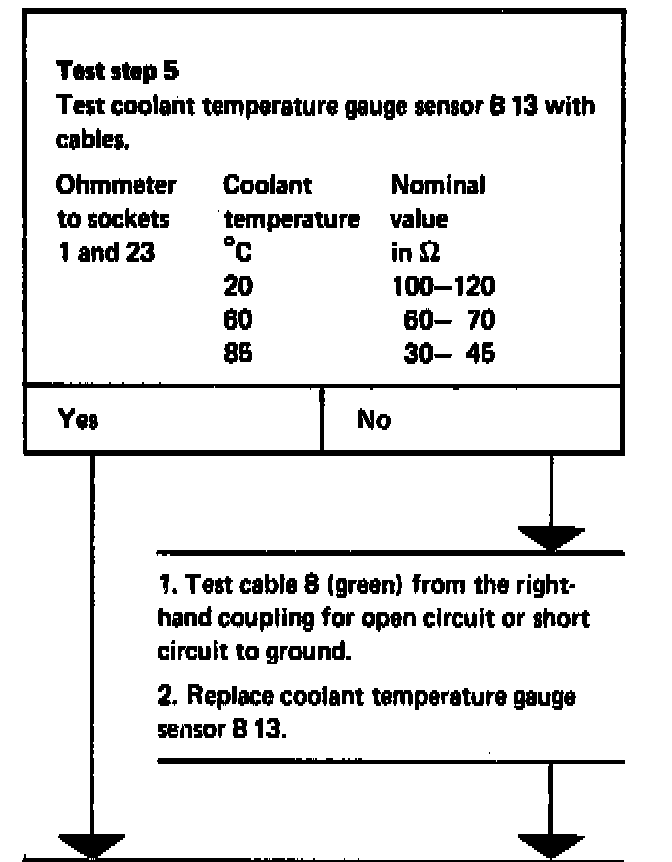

Test Step 5
Test Step 5
Test step 5

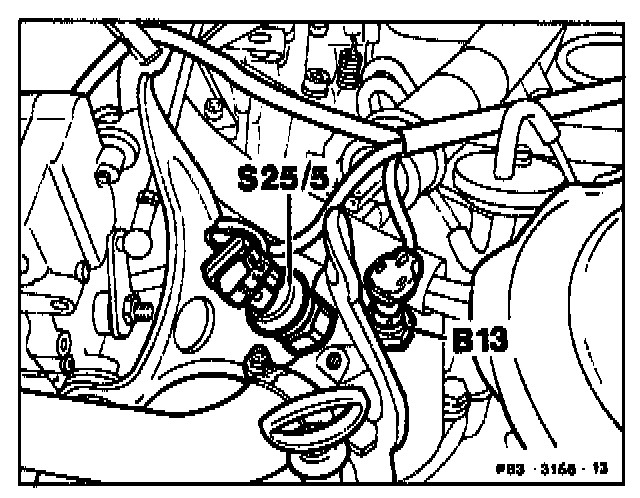

B 13 Temperature sensor in 6-cylinder engines

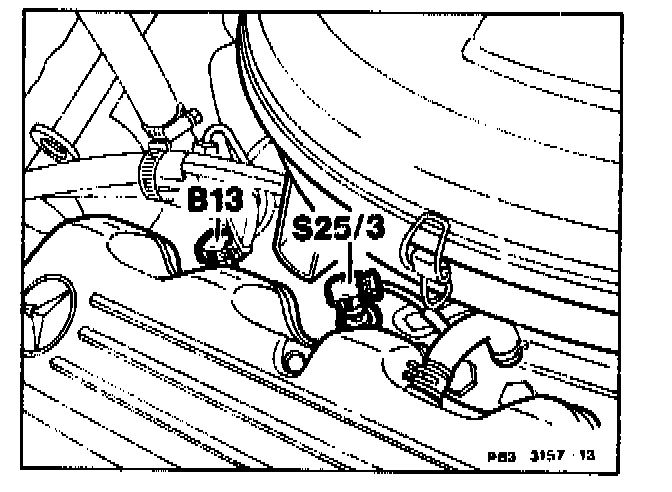

B 13 Temperature sensor in 8-cylinder engines
