Timing Component Alignment Marks: Locations

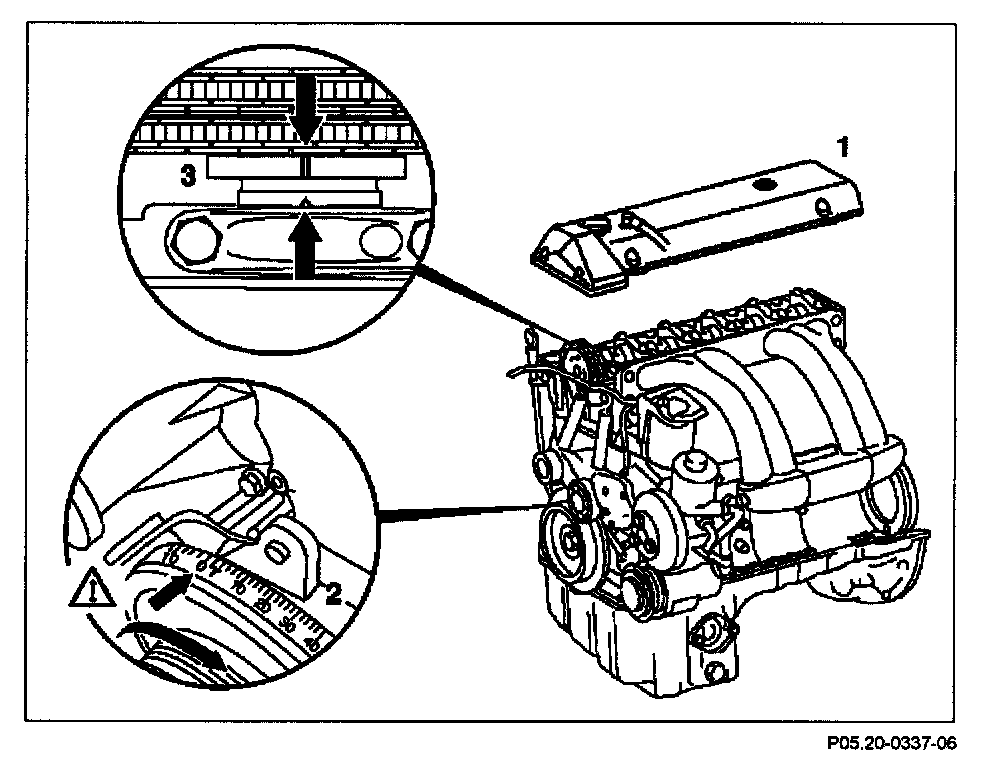

Checking basic position of camshafts

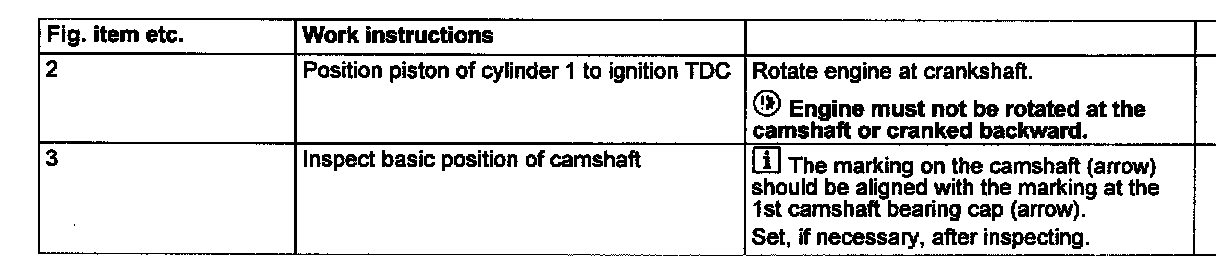

Work Instruction:

For further information refer to Camshaft, Engine : Service and Repair Service and Repair
and Timing Chain : Service and Repair Service and Repair
