Home >> Mercedes Benz >> 1986 >> 300SDL (126.125) L6-3.0L DSL Turbo (603.961) >> Repair and Diagnosis >> Diagrams >> Components >> Component Location >> A1-B11/2 -- Warning Lamps/Radio/ABS/AC/Seat Belts/Sensors

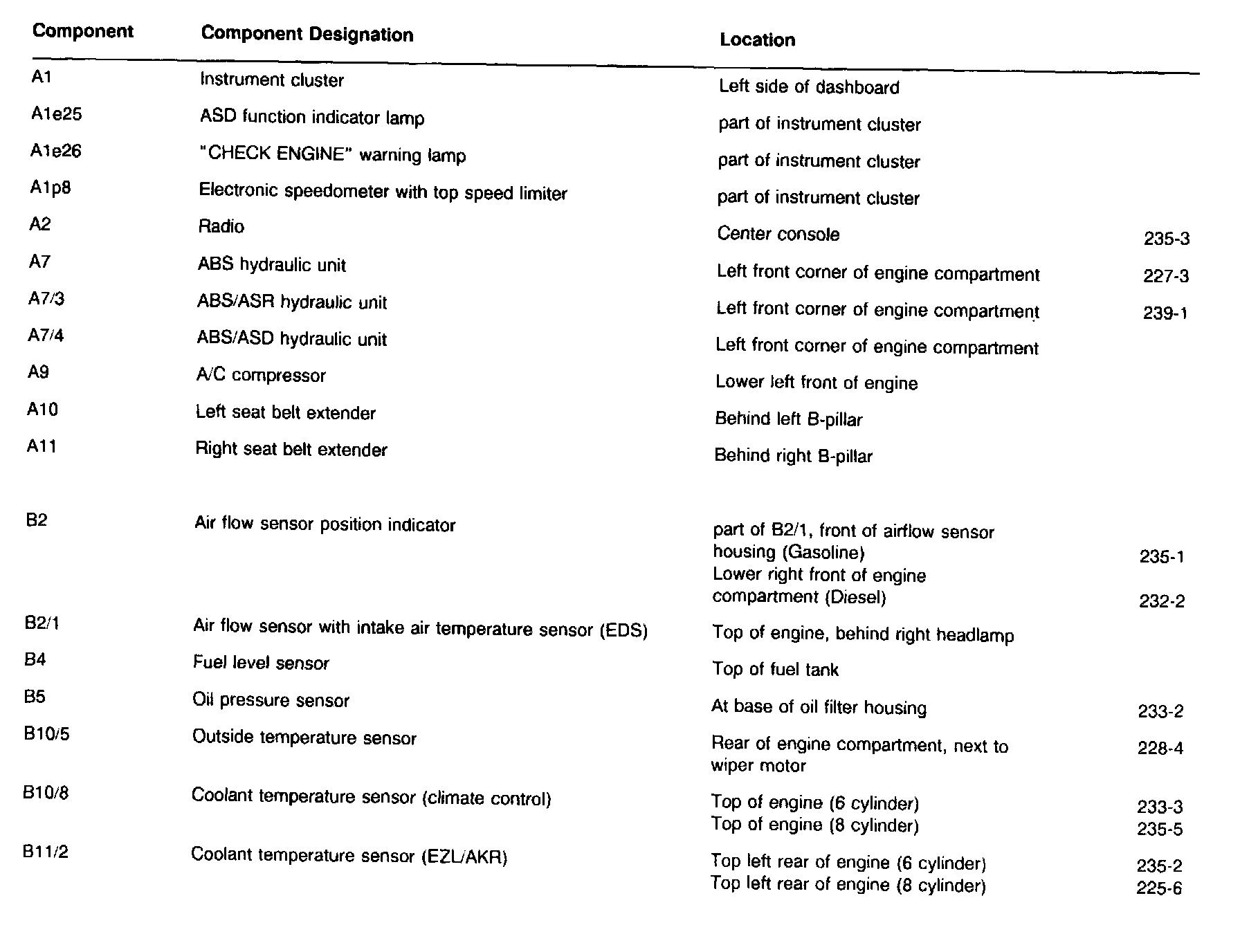

A1-B11/2 -- Warning Lamps/Radio/ABS/AC/Seat Belts/Sensors
