Removing/Installing Control & Element (S47, S48, S49)

Removal and installation of control and working element (S47, S48, S49)

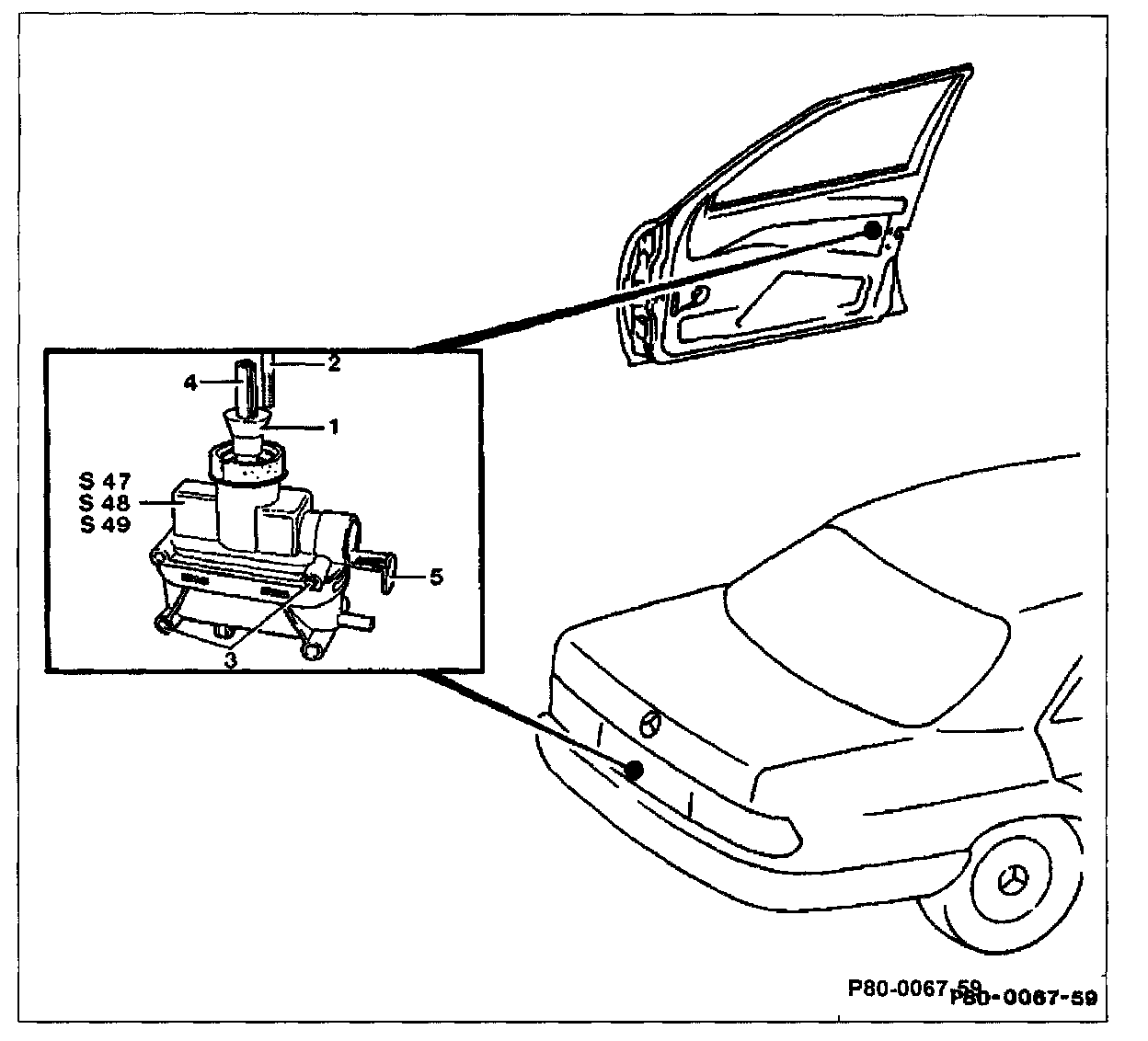

- Remove door lining or trunk lining. Service and Repair
- Push back sliding sleeve (1).
- Push out control rod (2).
- Loosen screws (3).
- Disconnect control and working element (S47, 848, S49).
- Push away tension unloading lever (5).
- Remove electric cable and pneumatic pipe.
- To bring control and working element (S47, S48, S49) in installation position, push sliding sleeve (1) fully back and pull control rod attachment (4) out until it engages. On the control and working element for the trunk lid lock (S49), push control rod (2) fully away from the element.
- Install in reverse order.
