A.Modified Anti-Theft Alarm Connection At Radio

1. Models 107, 124.193 and 201

As of August 1986 production, a positive-lock spade connection on the lower left rear of the radio chassis is installed (version 2).

Effective Serial Number

Model As of Chassis End Number

107.048 1A 055174
124.193 1F 019828
201 1F 269878

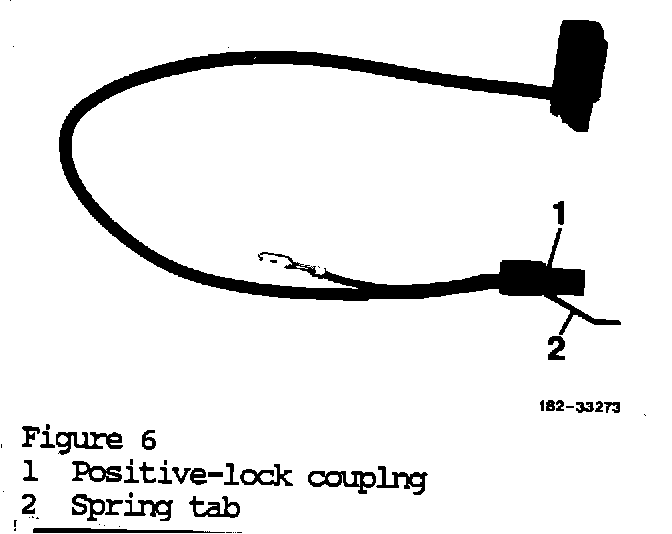

FIGURE 6:

Model 107 vehicles prior to the production change must be updated to version 3 during their next scheduled maintenance or repair by removing the spring contact and bracket installing a harness with positivelock coupling and spring tab (1 and 2, Figure 6) (refer to modification procedure).


Model 124.193 and 201 vehicles prior to the production change should be updated to version 3 only when replacing a defective radio chassis (refer to modification procedure).
2. Models 124 and 126

Models 124 and 126 were produced with the first version radios until December 1986.

As of the following chassis numbers version 3 is installed:

Effective Serial Number

Model As of chassis Number

124 1A 3962
126 1A 309780

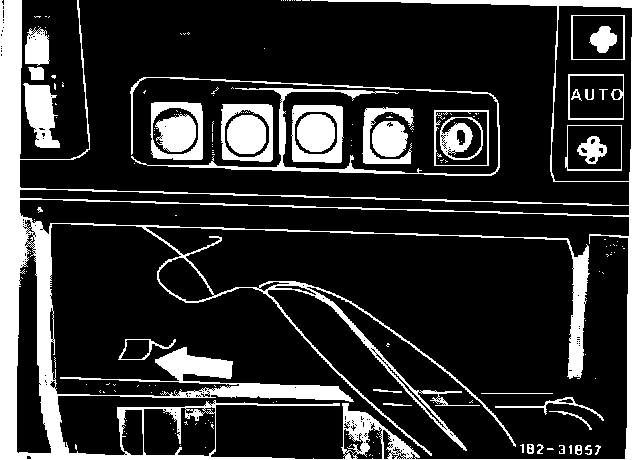

FIGURE 7 - (MODEL 124 SHOWN):

Remove the spring contact with harness and discard (arrow, Figure 7) and install a harness with positive-lock coupling and spring tab (1 and 2, Figure 6) whenever a defective radio chassis is replaced (refer to modification procedure).

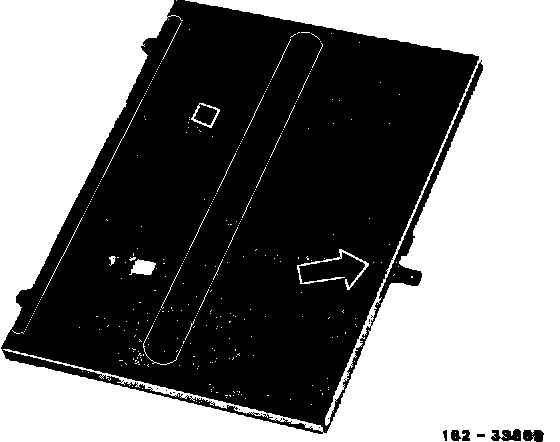

FIGURE 8:

To connect a positive-lock coupling to a radio chassis, the bottom cover of the radio chassis must have a spade connector (arrow, Figure 8) at its rear center (when installed). If not so equipped, the bottom cover must be replaced.

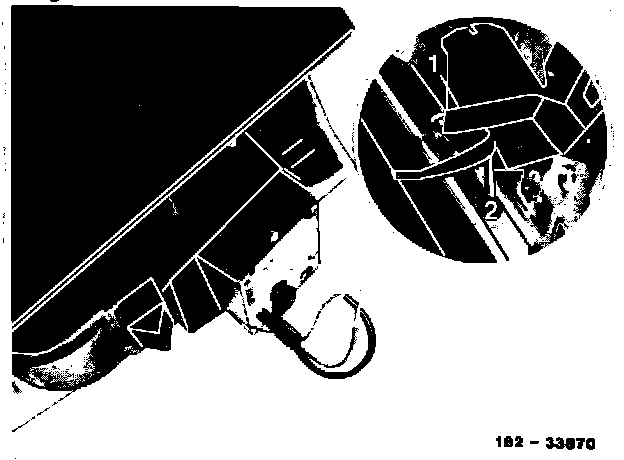

FIGURE 9:

Note: When removing a radio chassis equipped with the positive-lock plug connection, the spring tab (2, Figure 9) is pushed against the console causing the positive-lock coupling to slide off the spade connector.

FIGURE 8:

Modification Procedure

1. Remove radio.

2. Remove spring contact with harness and discard.

3. Exchange the radio chassis bottom cover for one equipped with a spade connector at its rear center, if not already so equipped (Figure 8).
4. Affix installation note label directly below existing label reading "2 X 20 Watt..." to top cover of radio chassis.

Note: Exchange radios manufactured after 10/86 already have the new cover and label. For these radios, disregard steps 2 and 3.

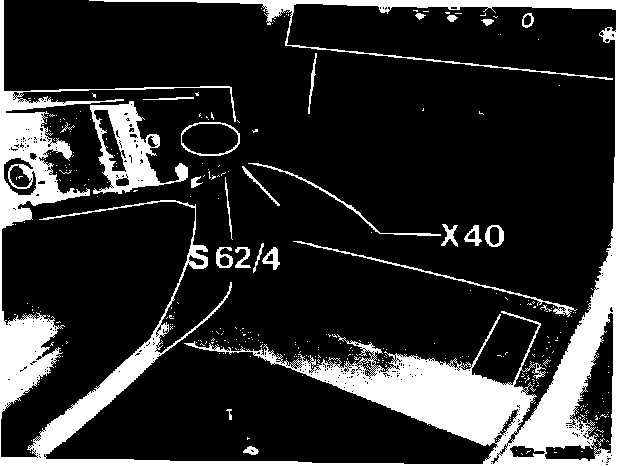

FIGURE 11:

5. Push positive-lock plug (S 62/4, Figure 11) of the new harness onto spade connector (ground) and 5-pole plug onto radio chassis.


Caution: Connect positive-lock plug first, the 5-pole plug second.


6. Push 1-pole (X 40, Figure 11) of harness onto coupling of anti-theft alarm wiring harness, where previous spring contact was connected.

7. Make sure that the positive-lock plug is not disconnected when installing the radio chassis in the console.

8. Enter remark, "Positive-lock connection installed on radio antitheft alarm harness: (date)", in inside cover of vehicle's maintenance booklet.
Parts Information

Part Name Part

Harness 201 540 50 34
Bottom cover and 900 820 00 22
label (installation note by Becker)



Time Allowance
