Testing Vacuum Control

Testing Vacuum Control Engine 602.96

In the event of complaints such as:

Hard transmission shifts.
Transmission slip when shifting.


Test conditions:
Engine at normal operating temperature. run at idle speed. Check vacuum lines according to vacuum diagram.

The following components are tested:
Vacuum control valve. vacuum amplifier, electric switchover valve and temperature switch.

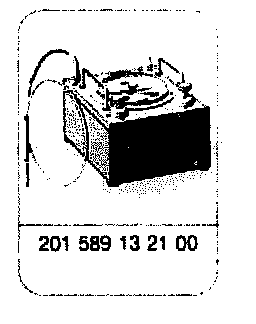

Special Tool:

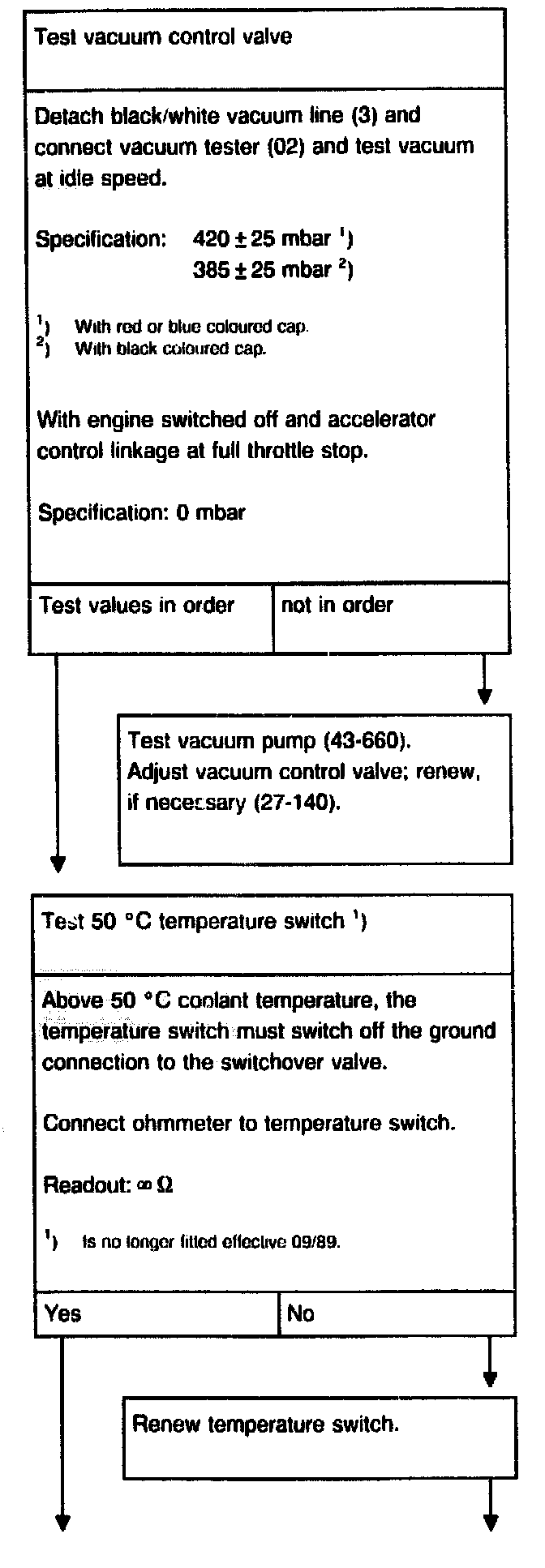

Testing:

Testing:

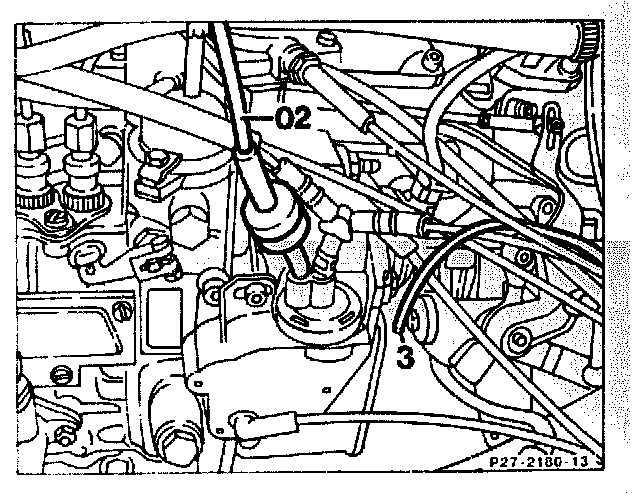

02 Black/White Vacuum Line:

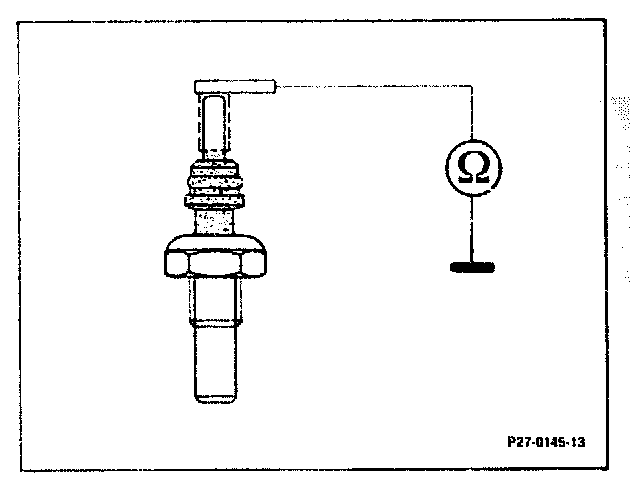

Temperature Switch:

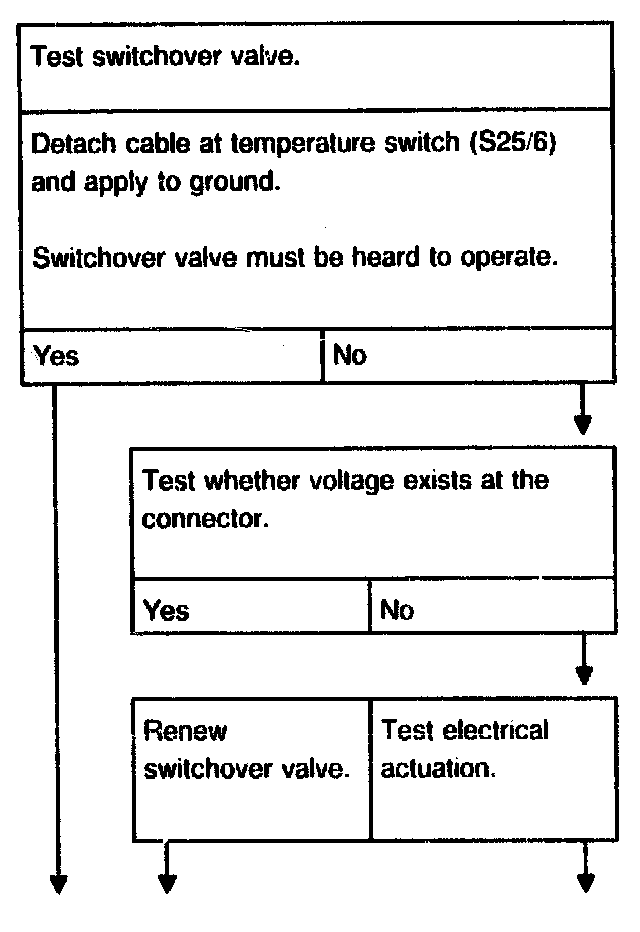

Test Switchover Valve:

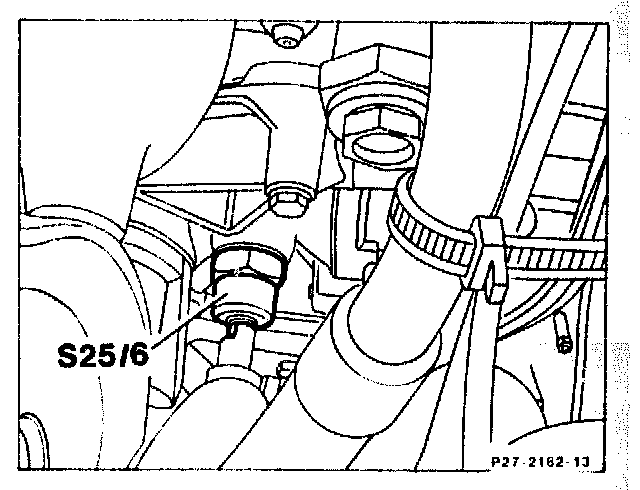

Temperature Switch:
