Delayed Frictional Connection In Drive Position "D"

Delayed Frictional Connection In Drive Position "D" (engagement period is more than 2-3 seconds)

Cause/remedy:






1. Correct play in brake band B2 and check T-moulded ring of brake band piston B2.

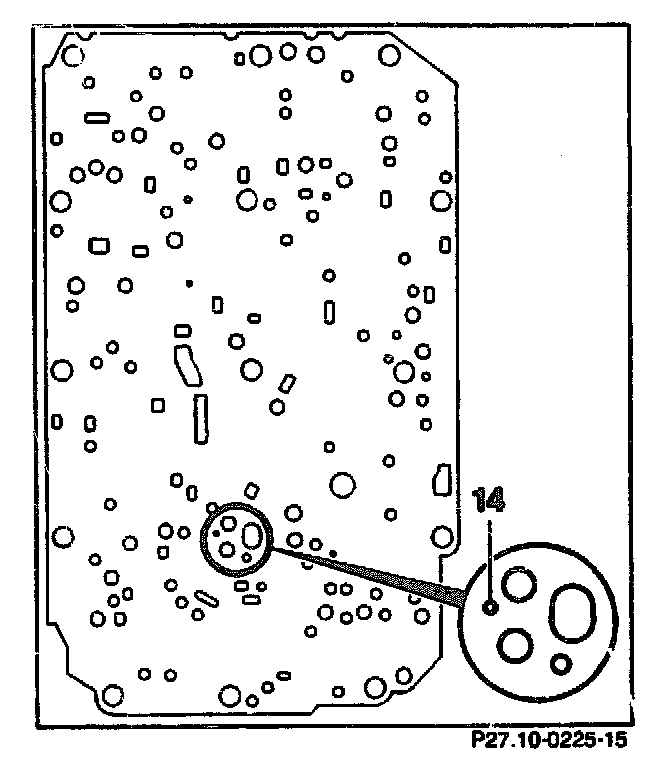

2. Drill Out hole (14) in small intermediate plate 1.1 mm.

Note:
Engagement process is therefore less refined, especially during rapid change from "D" to "R".
