Home >> Mercedes Benz >> 1986 >> 190E 2.3 (201.024) L4-2.3L (102.961) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> W5, W6, W7

W5, W6, W7

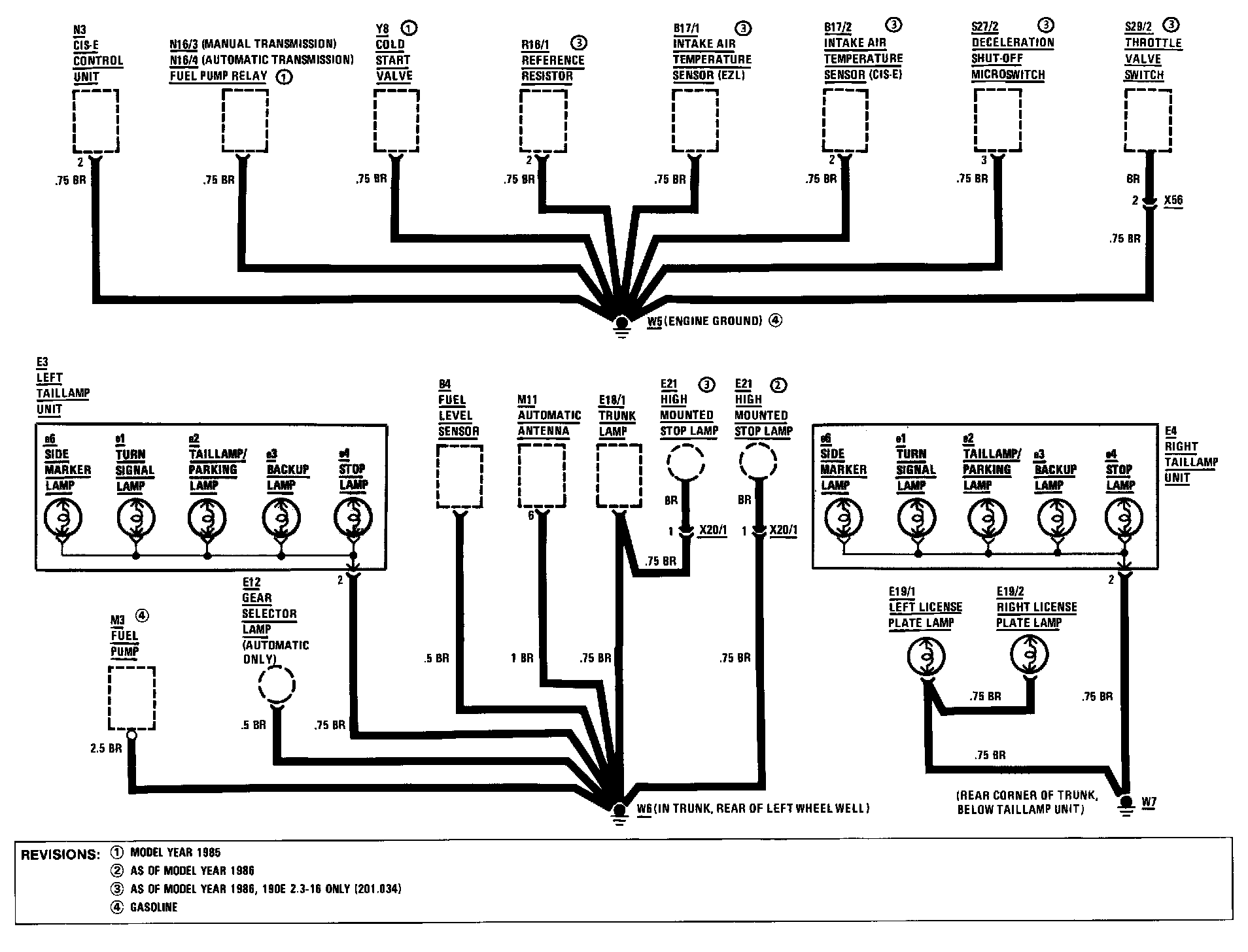

Ground Distribution; W5, W6, W7:
