Home >> Mercedes Benz >> 1986 >> 190E 2.3 (201.024) L4-2.3L (102.961) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> W1, W2, W3, W4

W1, W2, W3, W4

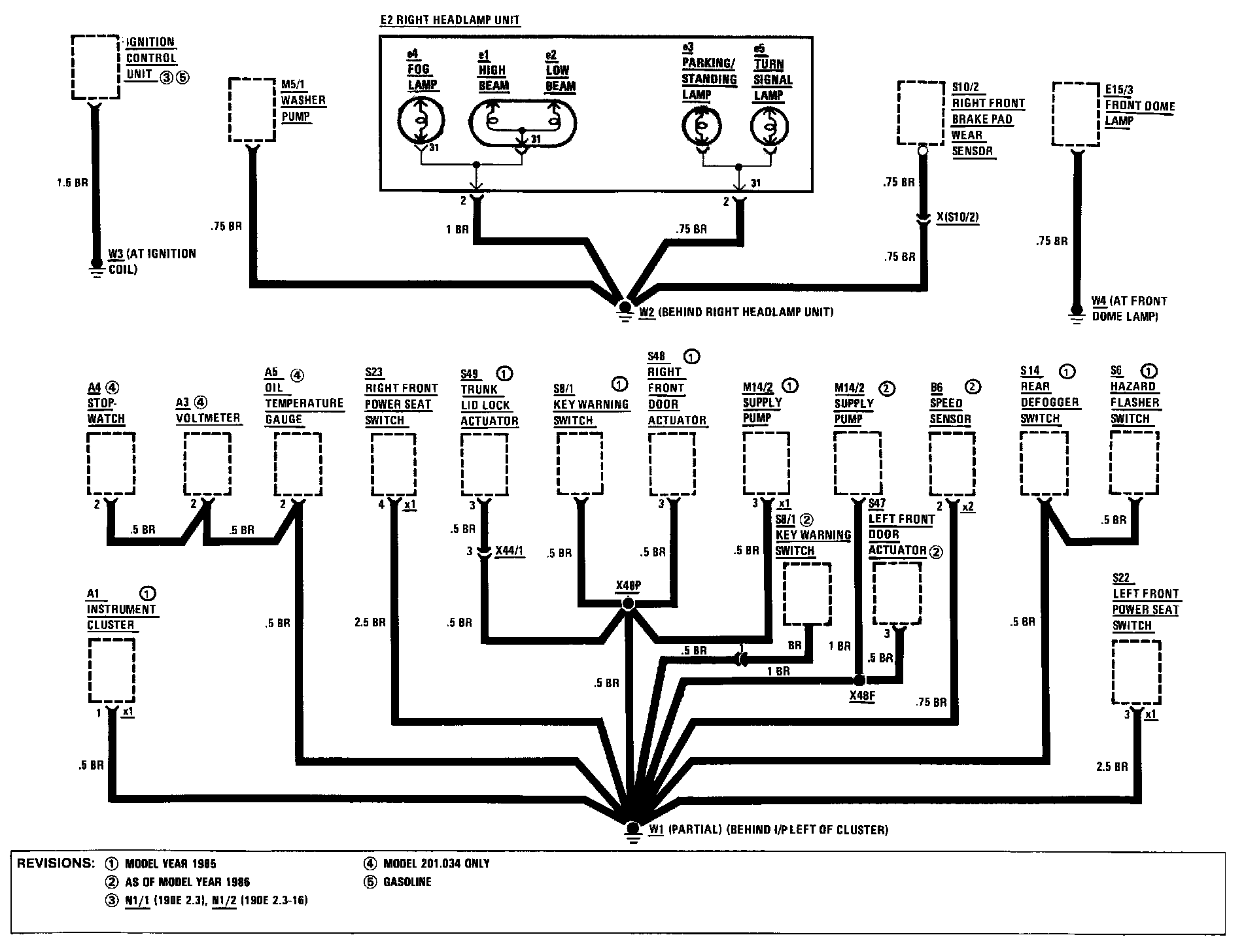

Ground Distribution; W1, W2, W3, W4:
