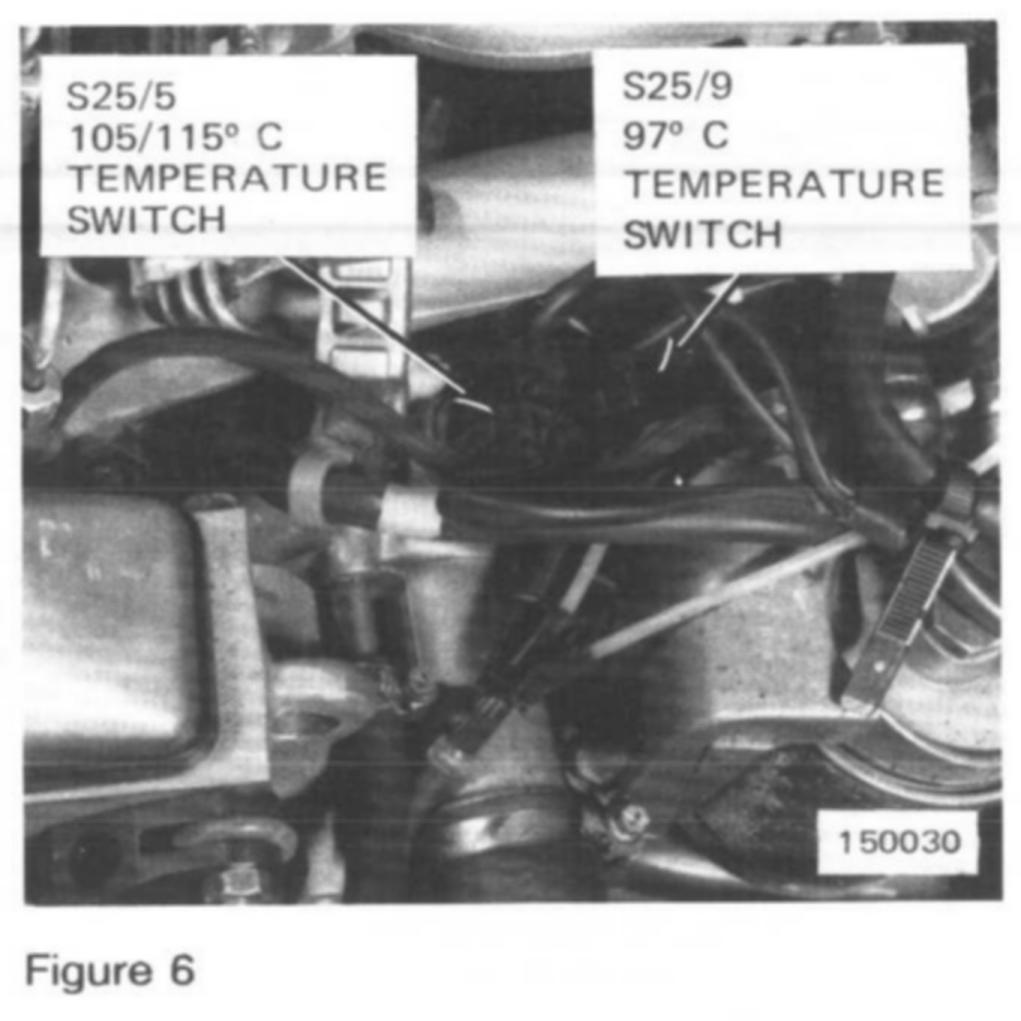

97 Degrees Temperature Switch (EGR)

Component ID: S25/9
Component Name: 97°C Temperature switch (EGR)
Component Location: Top front of engine, rear of coolant outlet
