Brake Light Switch: Adjustments

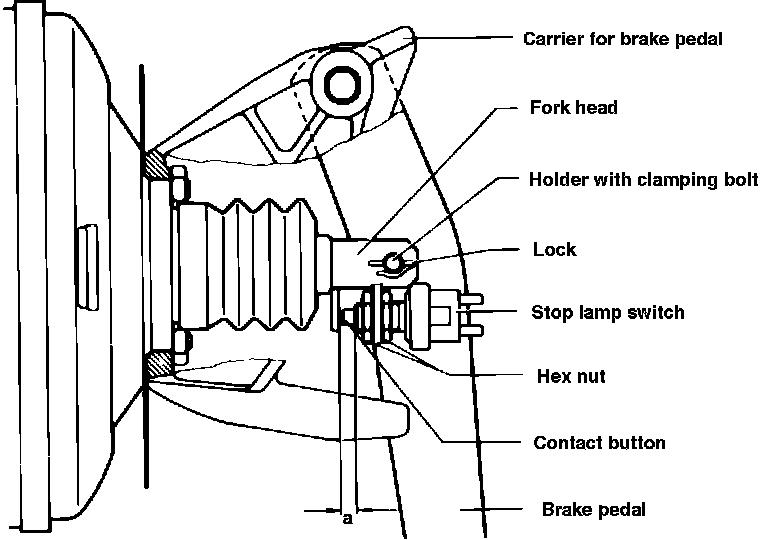

Fig. 3 Brake light switch adjustment:

201 SERIES

1. Ensure brake pedal travel, dimension ``a'', in Fig. 3, measures .118-.787 inch (3-20 mm) before center of pedal plate touches switch contact button.
2. If pedal travel is not within specifications, adjust by turning the two hex nuts, Fig. 3, as necessary.
