Evaporator Temperature Sensor / Switch: Service and Repair

Test values

Sensor temperature Resistance
+ 0 °C 57 - 67 k Ohms
+ 5 °C 46 - 54 k Ohms
+ 10 °C 37 - 45 k Ohms
+ 15 °C 31 - 36 k Ohms
+ 20 °C 24 - 28 k Ohms
+ 25 °C 20 - 24 k Ohms
+ 30 °C 14 - 16 k Ohms
+ 35 °C 13 - 15 k Ohms




NOTE

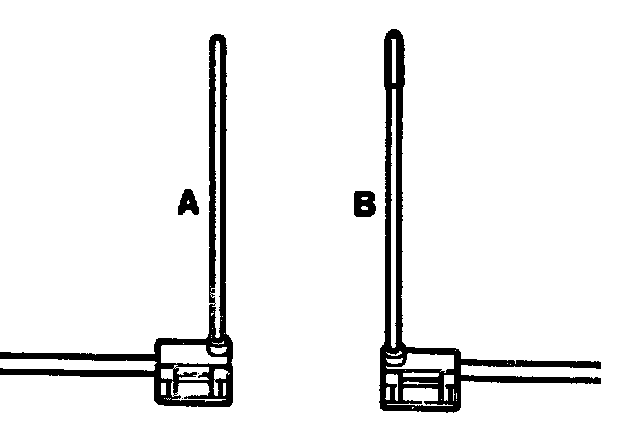

Modified temperature sensor for evaporator







A Modified temperature sensor
B Previous temperature sensor


If the modified temperature sensor (figure, version A) with metal tube is not yet installed in model 201, it must be renewed. (Production breakpoint June 1987)







Removing

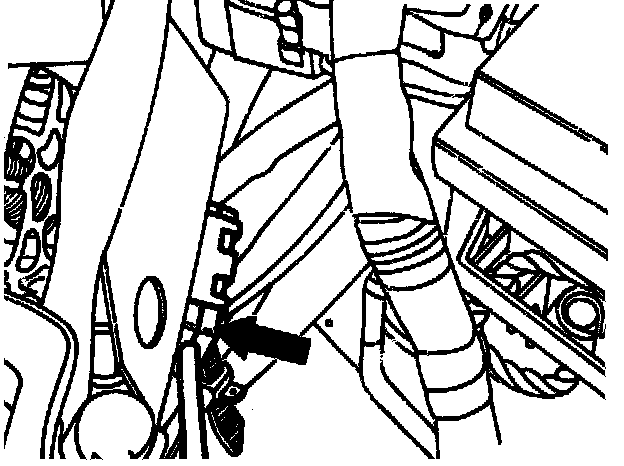

1 Disconnect 2-pole connector (arrow). Test temperature sensor (B10/6) using ohmmeter. If the temperature sensor is faulty, release the cable straps on the cable harness.
2 Remove cover on air inlet Procedures

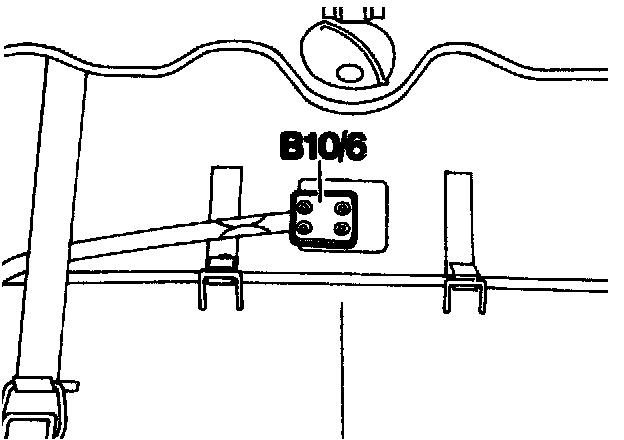

3 Pull temperature sensor (B10/6) out of guide tube.


Installing
Install in the reverse sequence.Test temperature sensor (B10/6) with ohmmeter beforehand.
