Blower Override Switch: Service and Repair

1 Remove push-button switch unit (83-112, section A).

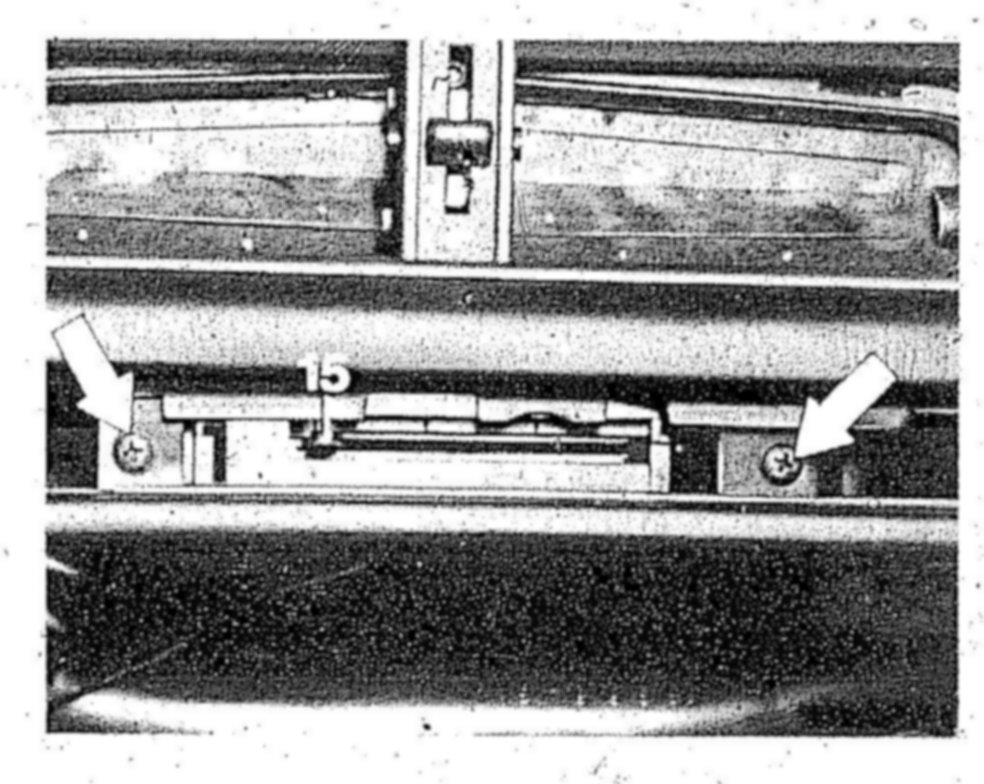

2 Unscrew both screws (arrow) and remove blower switch (15) through opening for push-button switch unit.

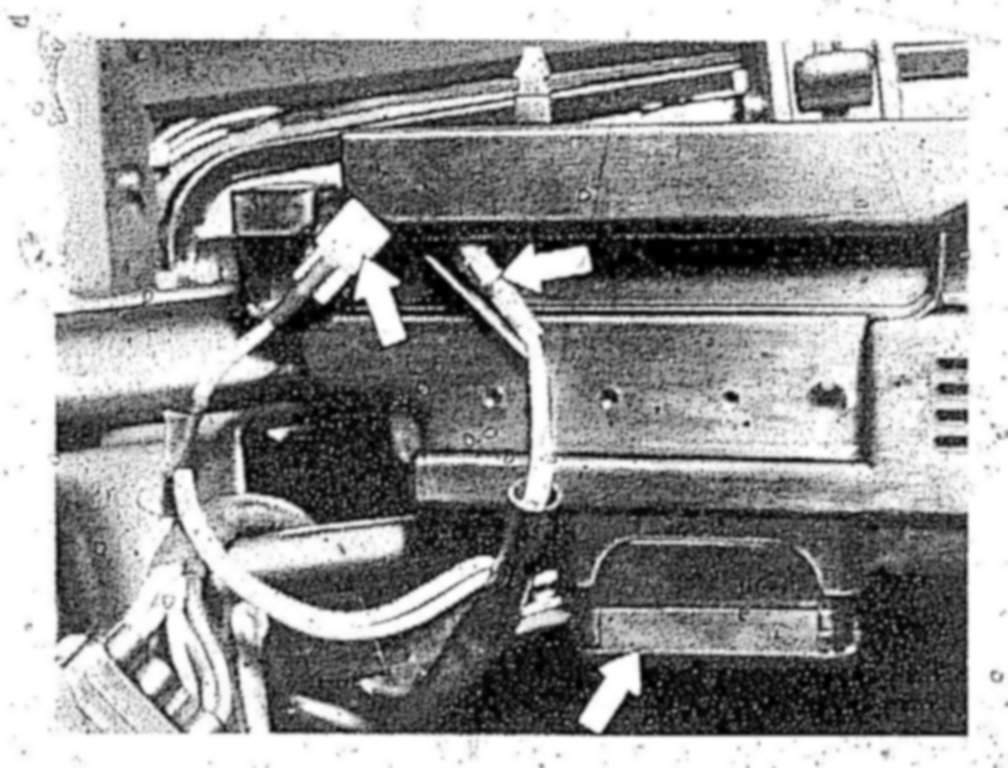

3 Pull electric connector, glow bulb socket and light conductor (arrow) from blower switch.
4 Install in vice-versa sequence.
