Coolant Temperature Sensor (EZL/CIS-E)

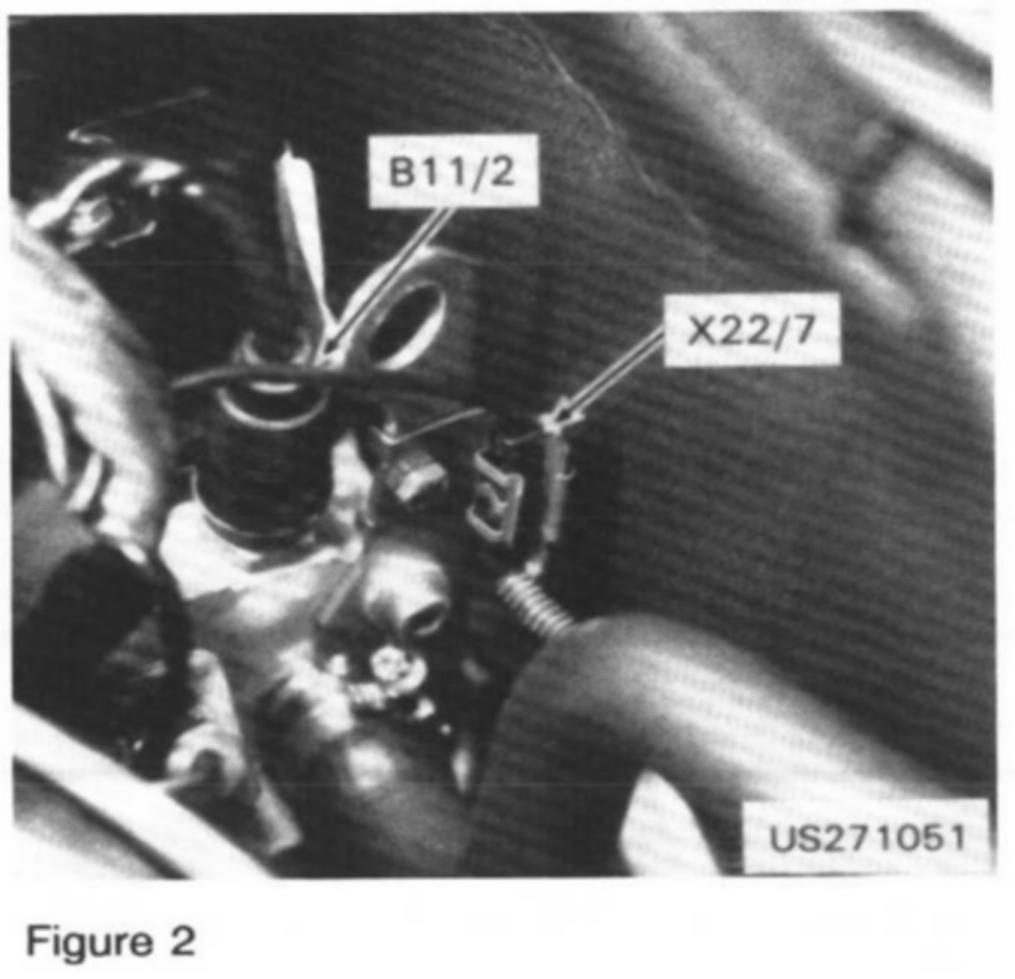

Component ID: B11/2
Component Name: Coolant temperature sensor (EZL/CIS-E)
Component Location: Top front of engine (4 cylinder, 16V)

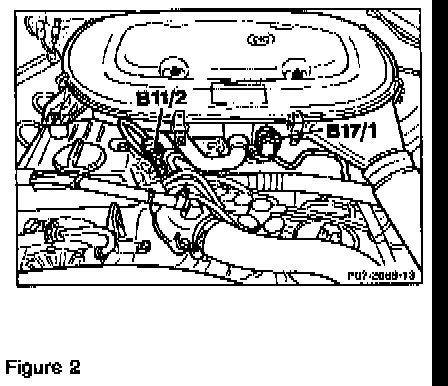

Component ID: B11/2
Component Name: Coolant temperature sensor (EZL/CIS-E)
Component Location: Top front of engine (4 cylinder)




Component ID: B11/2
Component Name: Coolant temperature sensor (EZL/CIS-E)
Component Location: Top front of engine (4 cyl. M.Y. 91)

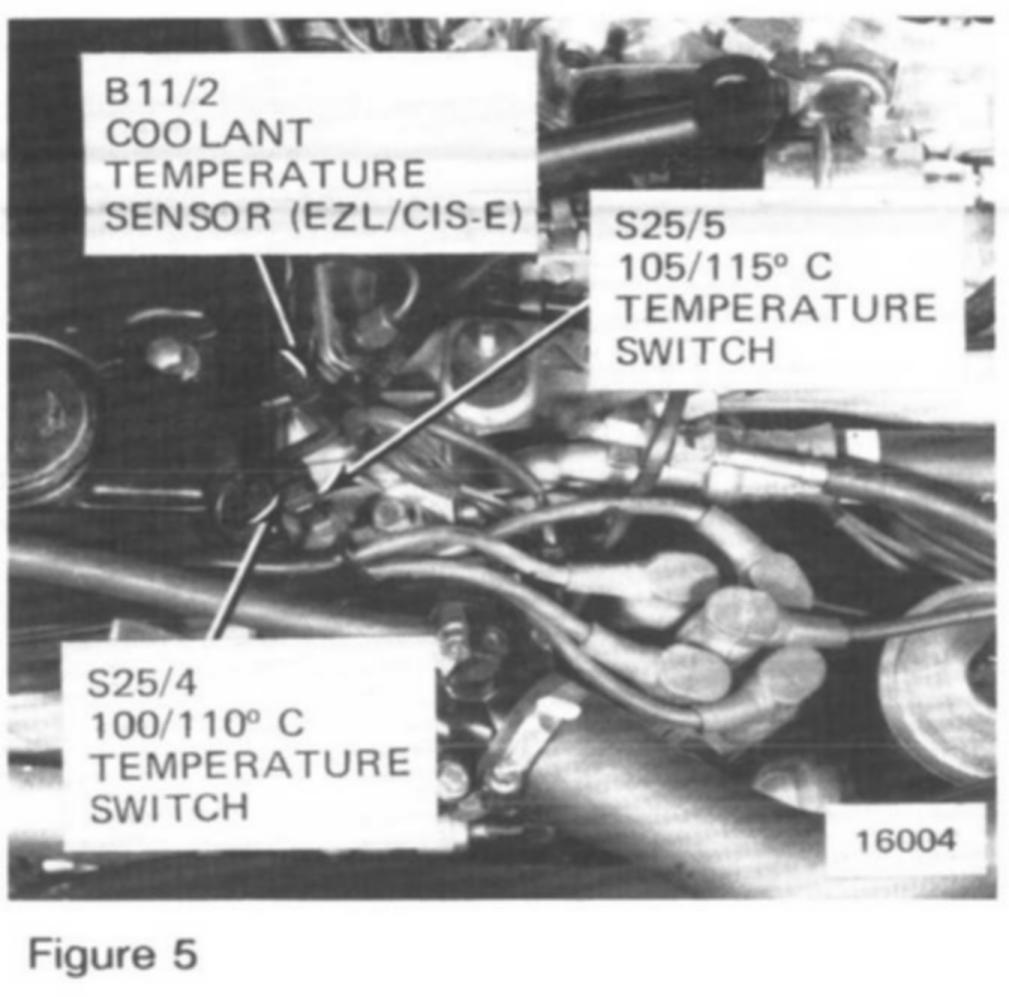

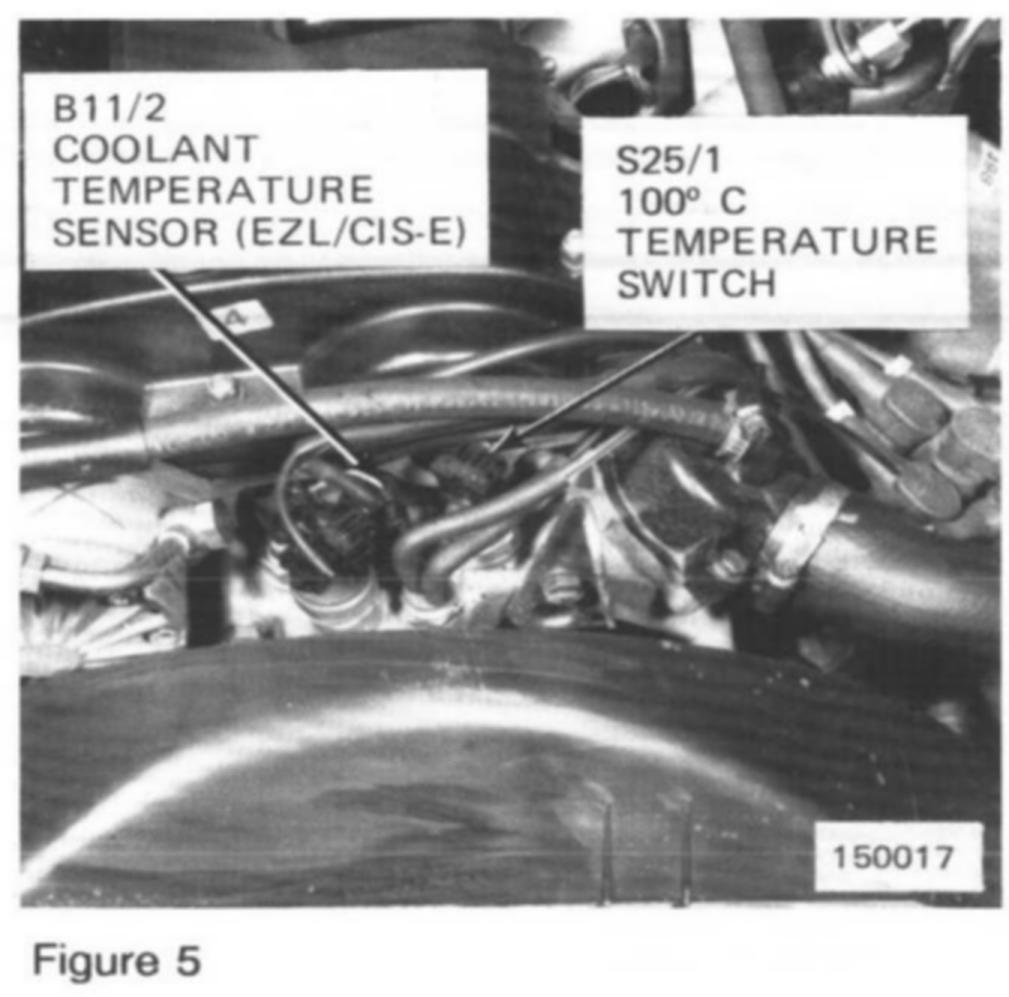

Component ID: B11/2
Component Name: Coolant temperature sensor (EZL/CIS-E)
Component Location: Top rear of engine (6 cylinder)
