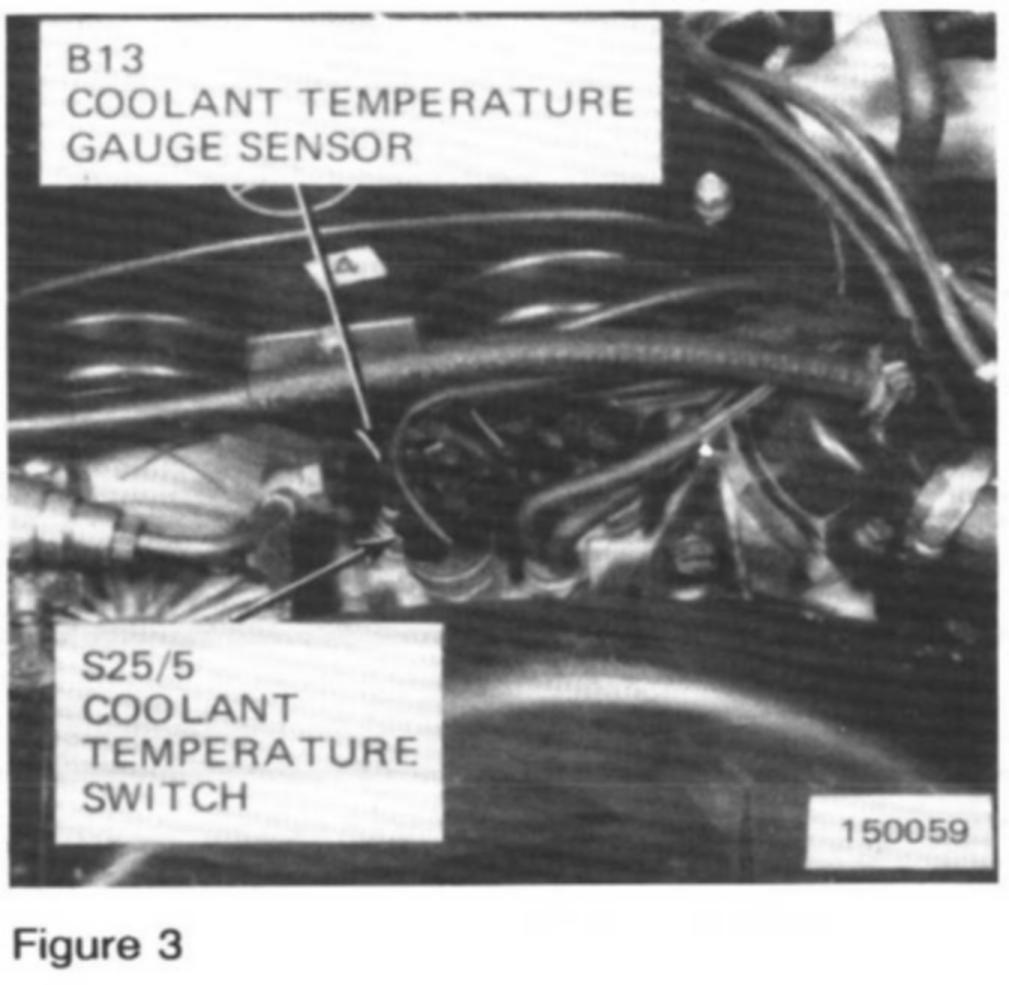

Coolant Temperature Gauge Sensor




Component ID: B13
Component Name: Coolant temperature gauge sensor
Component Location: Front of engine, behind thermostat housing
