Cruise Control Reference Resistor (Coding Plug)

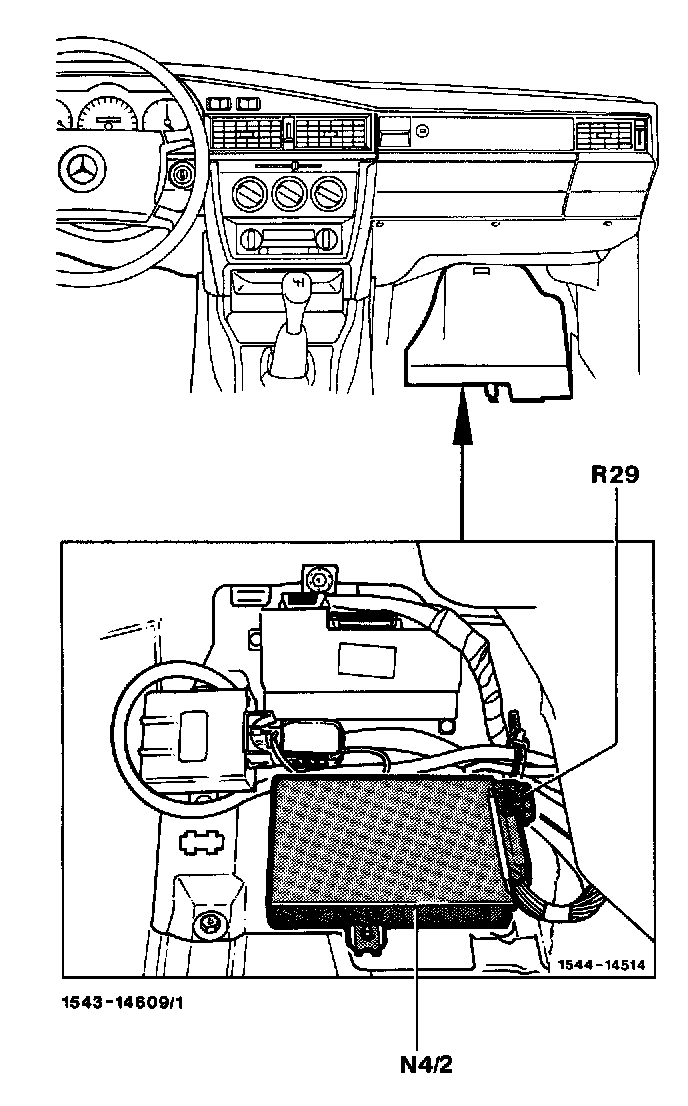

Component ID: R29
Component Name: Cruise control reference resistor
Component Location: Under right front footrest, part of N4/2
