ASD Control Unit

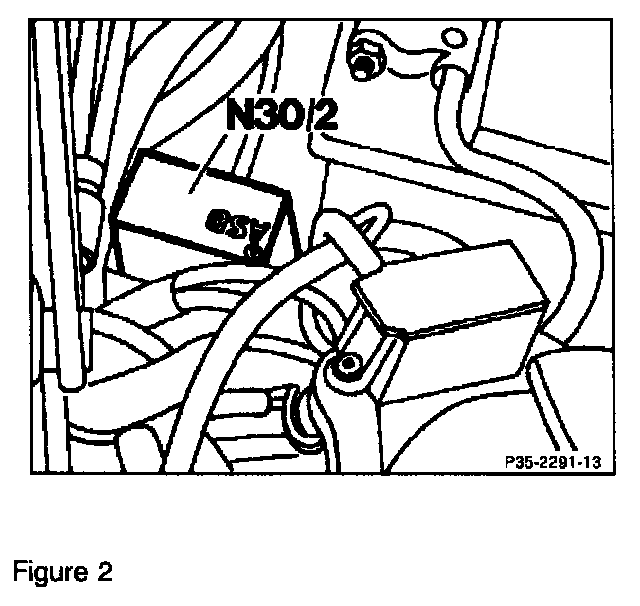

Component ID: N30/2
Component Name: ASD control unit
Component Location: Right side of component compartment, behind shock tower
