Testing Breakerless Transistorized Ignition (TSZ)
Testing breakerless transistorized ignition (TSZ)Preceding work:
Testing, adjusting engine. Refer to Engine Testing, Adjustment. Testing and Inspection
Precondition for test
Spark plugs, ignition cables, distributor rotor and distributor cap in proper mechanical and electrical condition.
Test e.g. by visual inspection, measuring resistance and ignition oscilloscope.
Note: Pay attention to the safety precautions when performing work on the ignition system. Switch off ignition when unplugging and connecting the contacters at the TSZ control module.

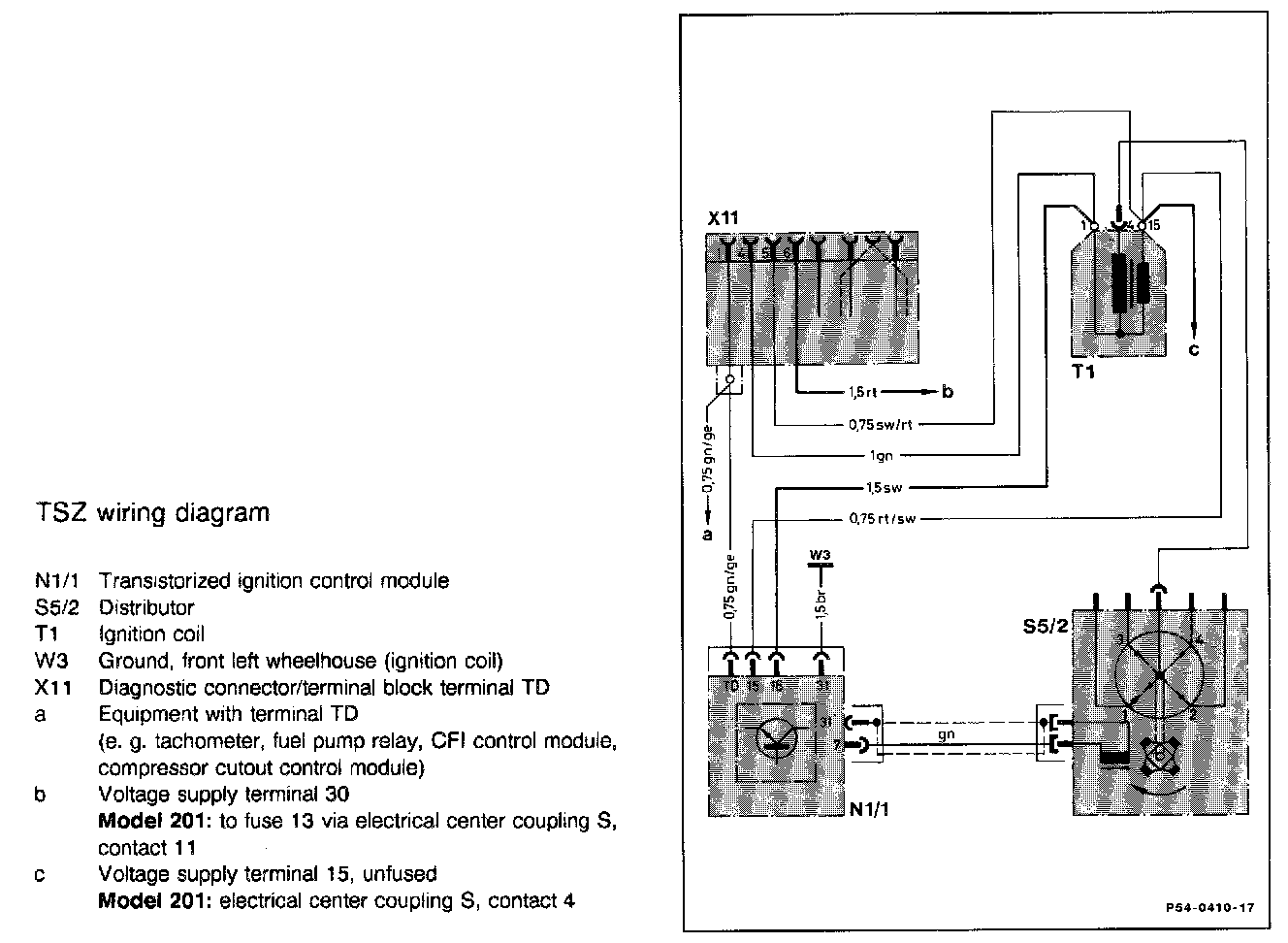

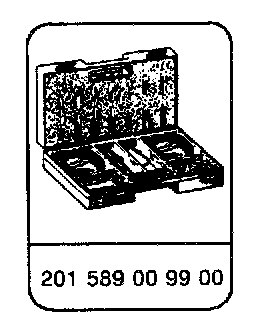

Special Tool:

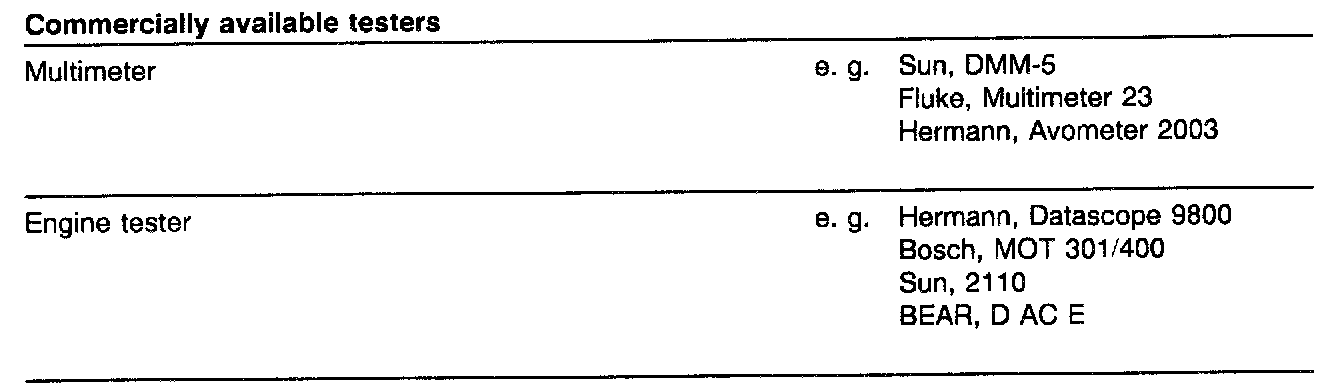

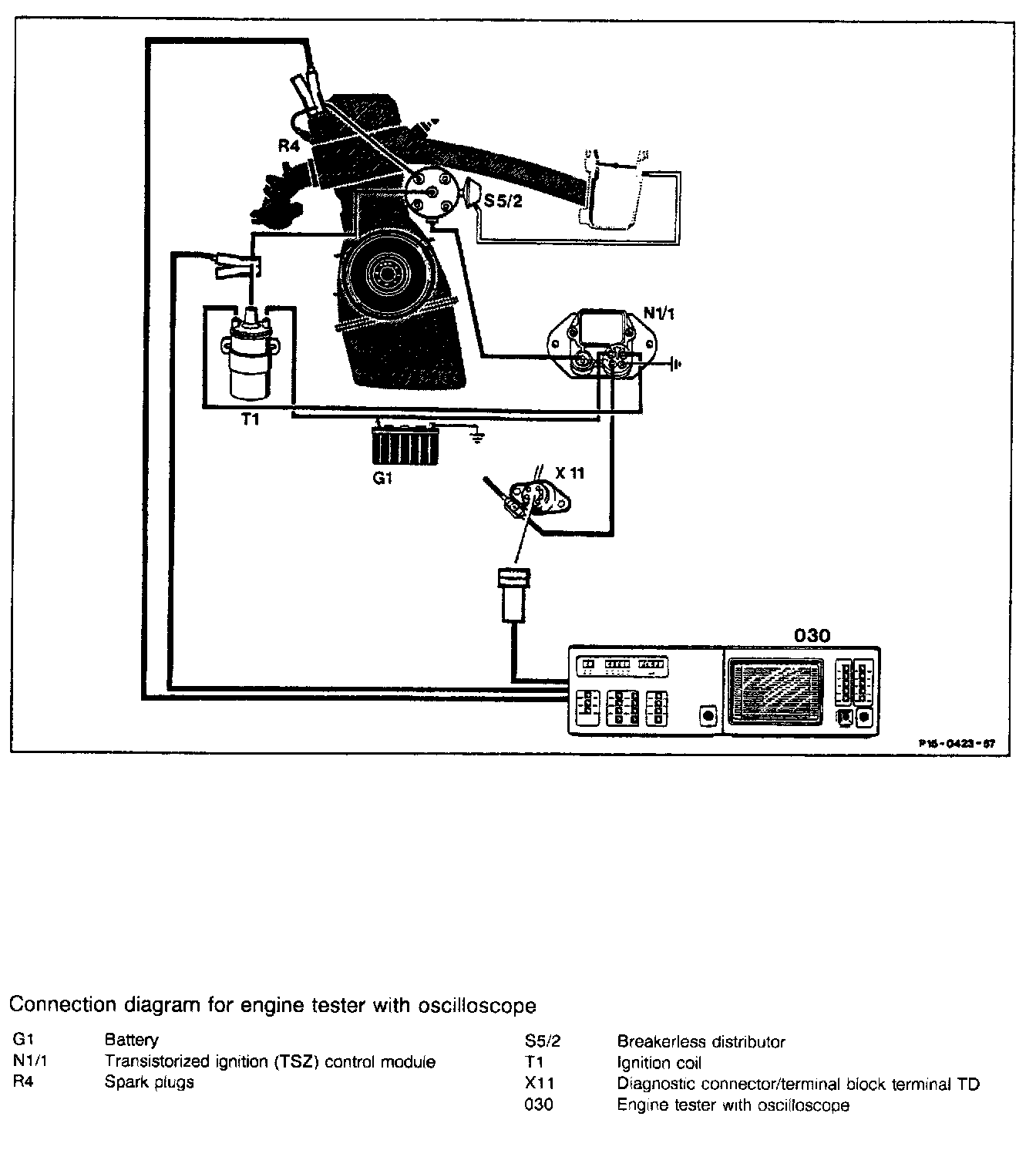

Commercially Available Testers:

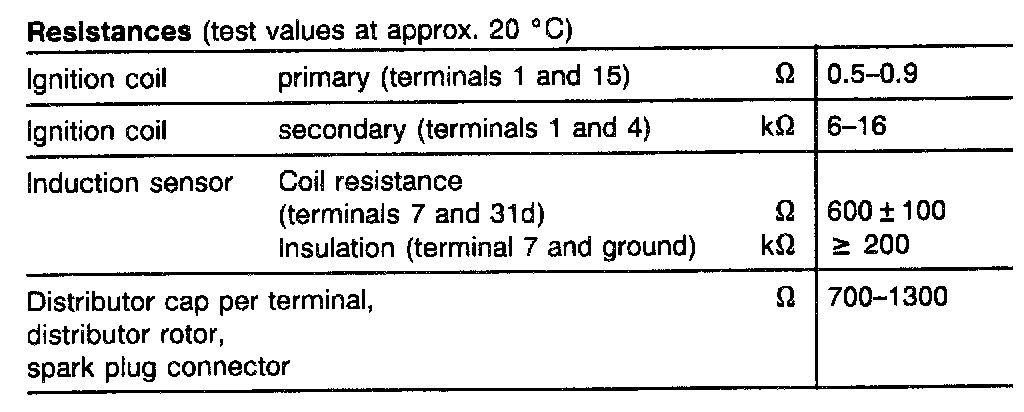

Test Data, Resistances:

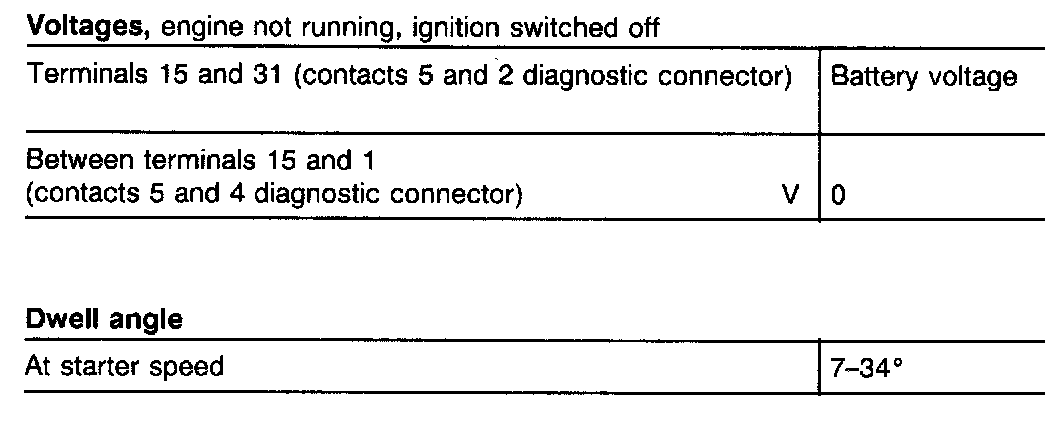

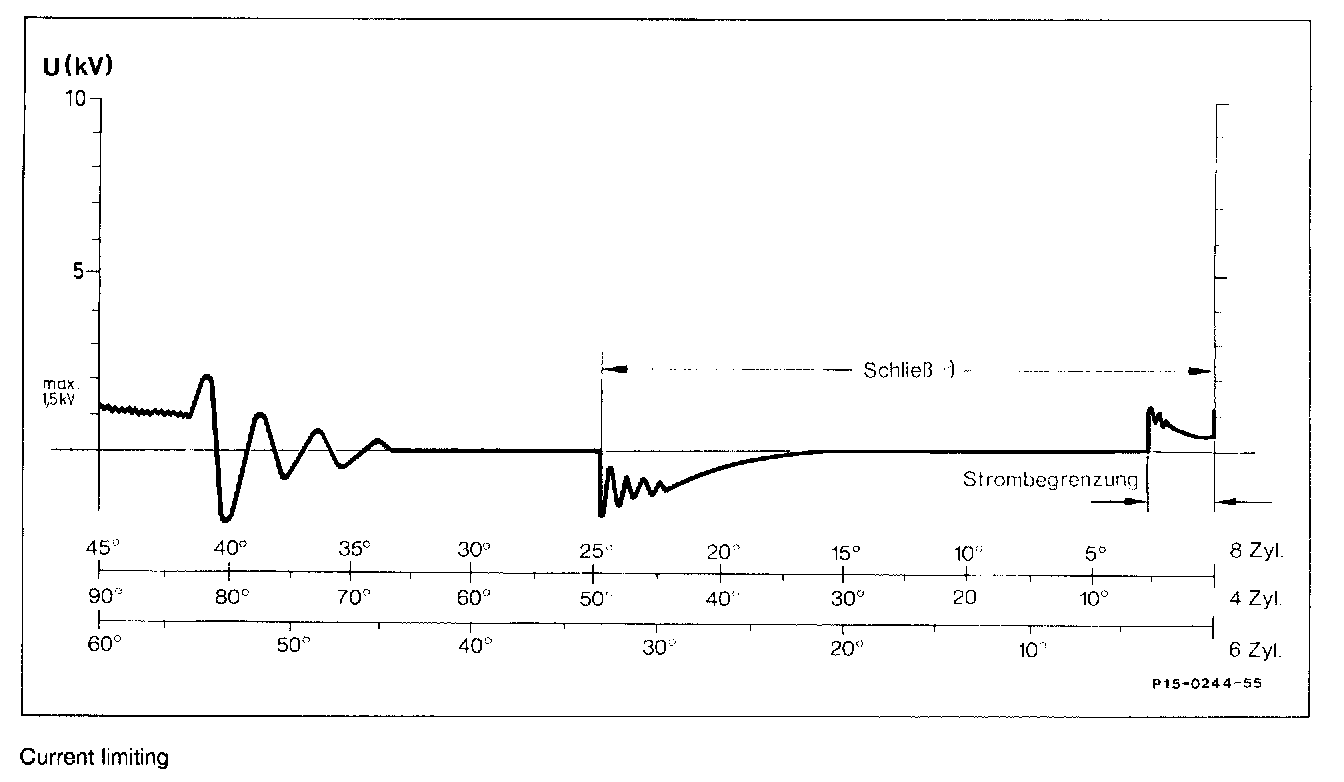

Test Data, Voltages/Dwell Angle:
Test Data, Ignition Point:
Note:
- If the specified value of a test step, e.g. test step 1 .0, is in order, continue immediately with test step 2.0.
- If the specified value of step 1.0 is not in order, it is then necessary to continue with step 1.1.

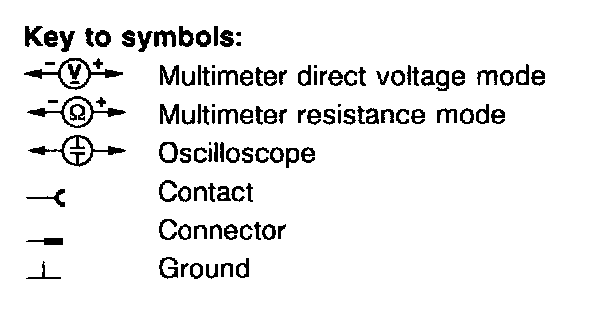

Key To Symbols:

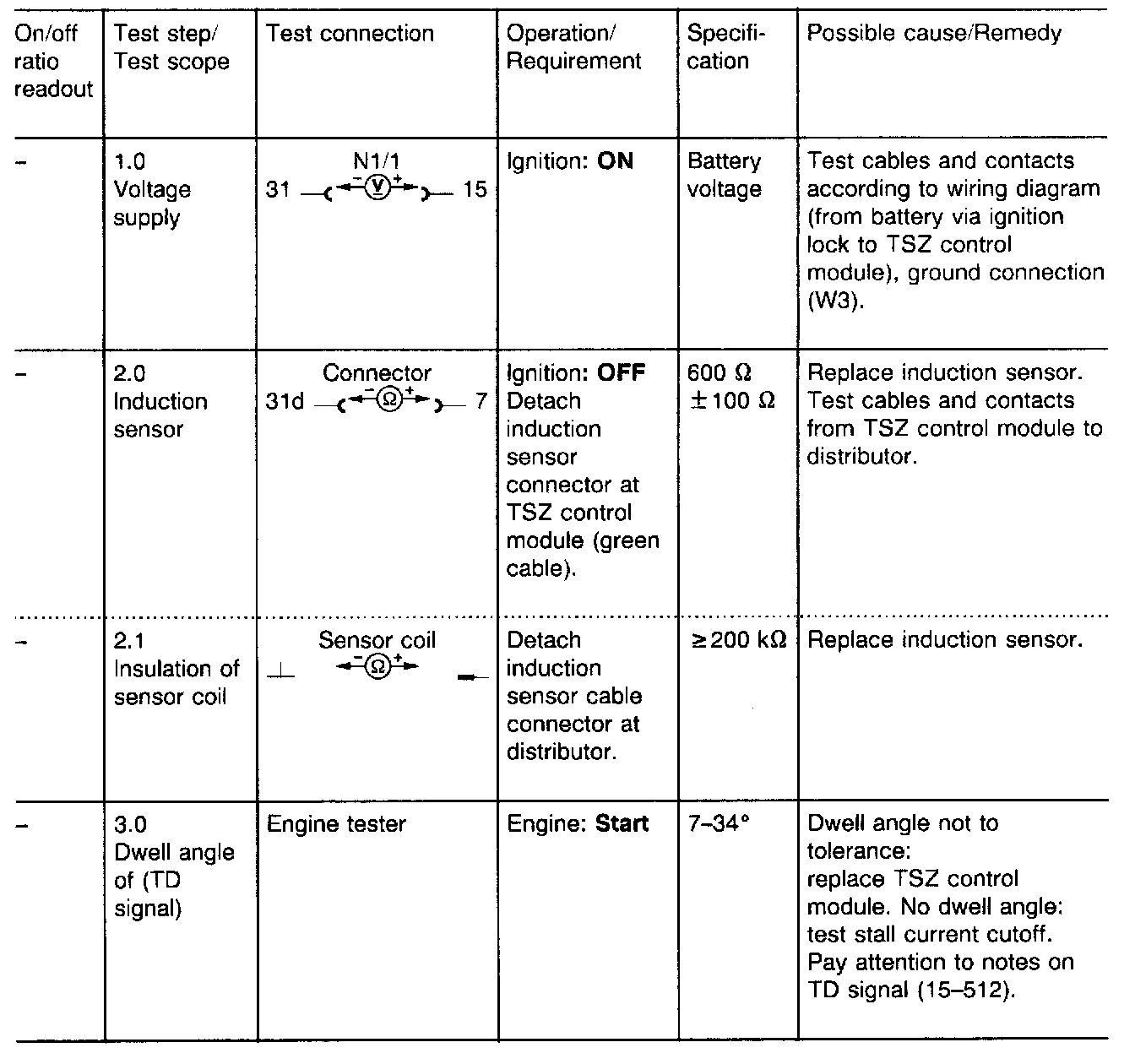

Test Steps 1.0 - 3.0:

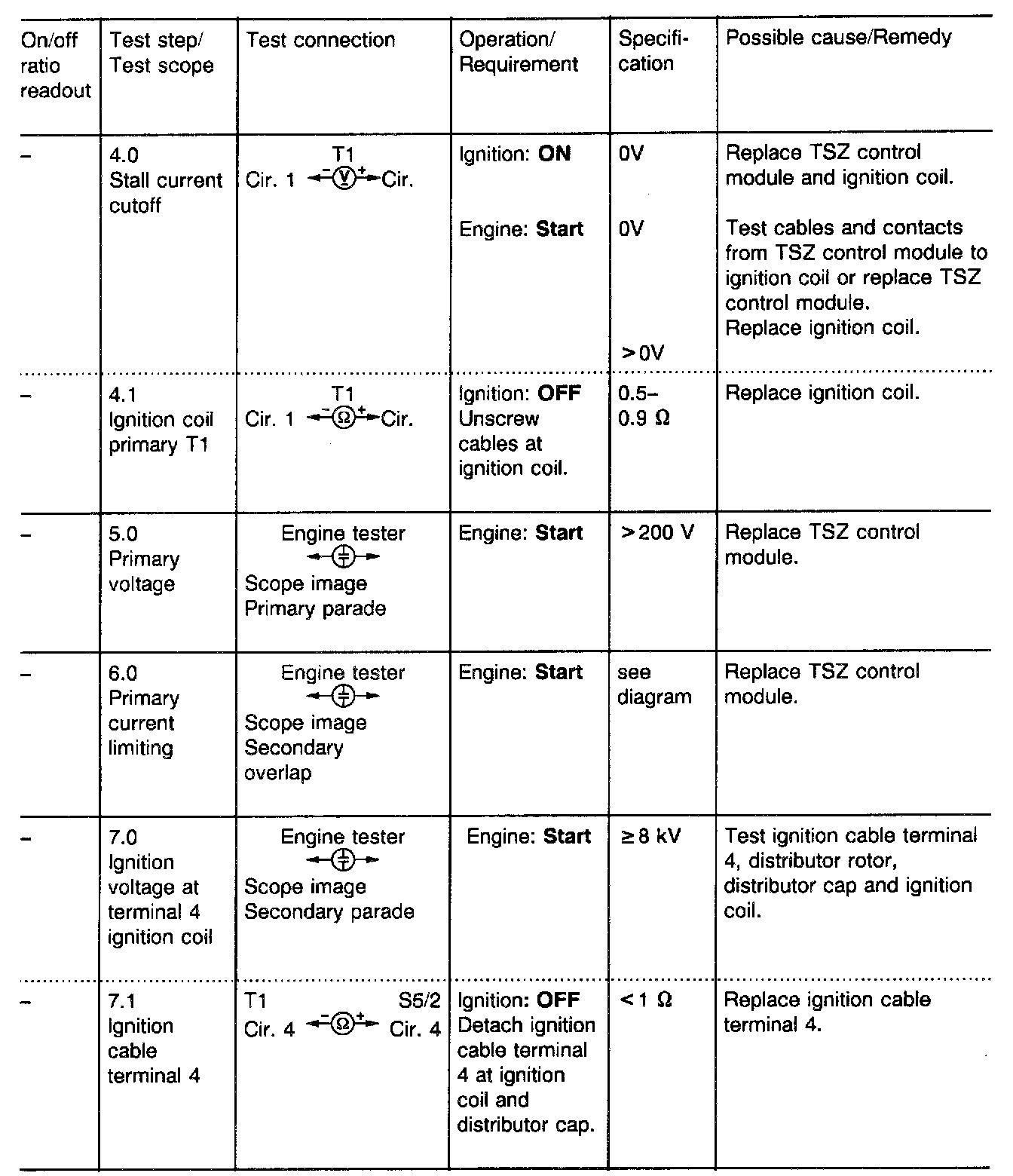

Test Steps 4.0 - 7.1:

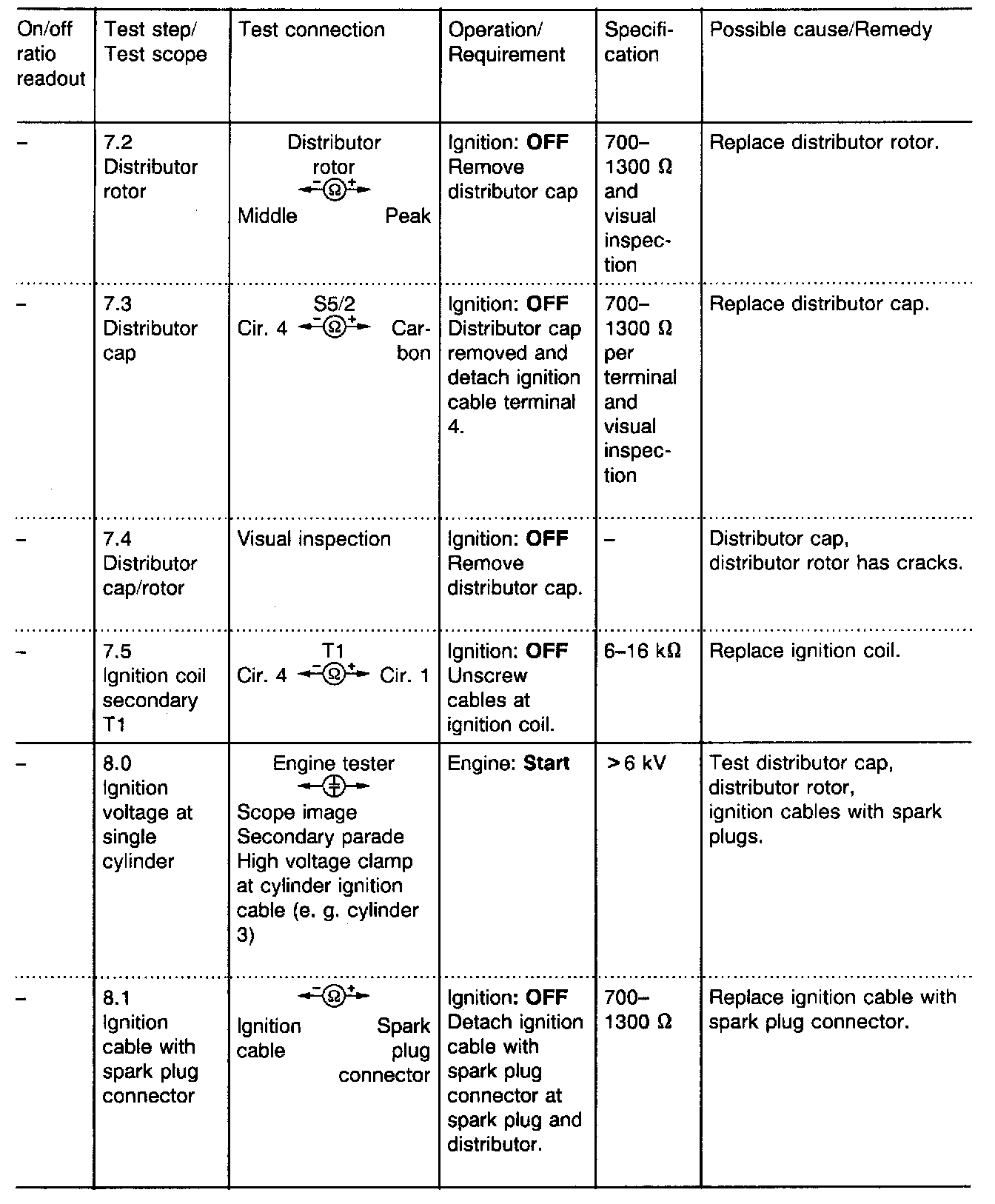

Test Steps 7.2 - 8.1:

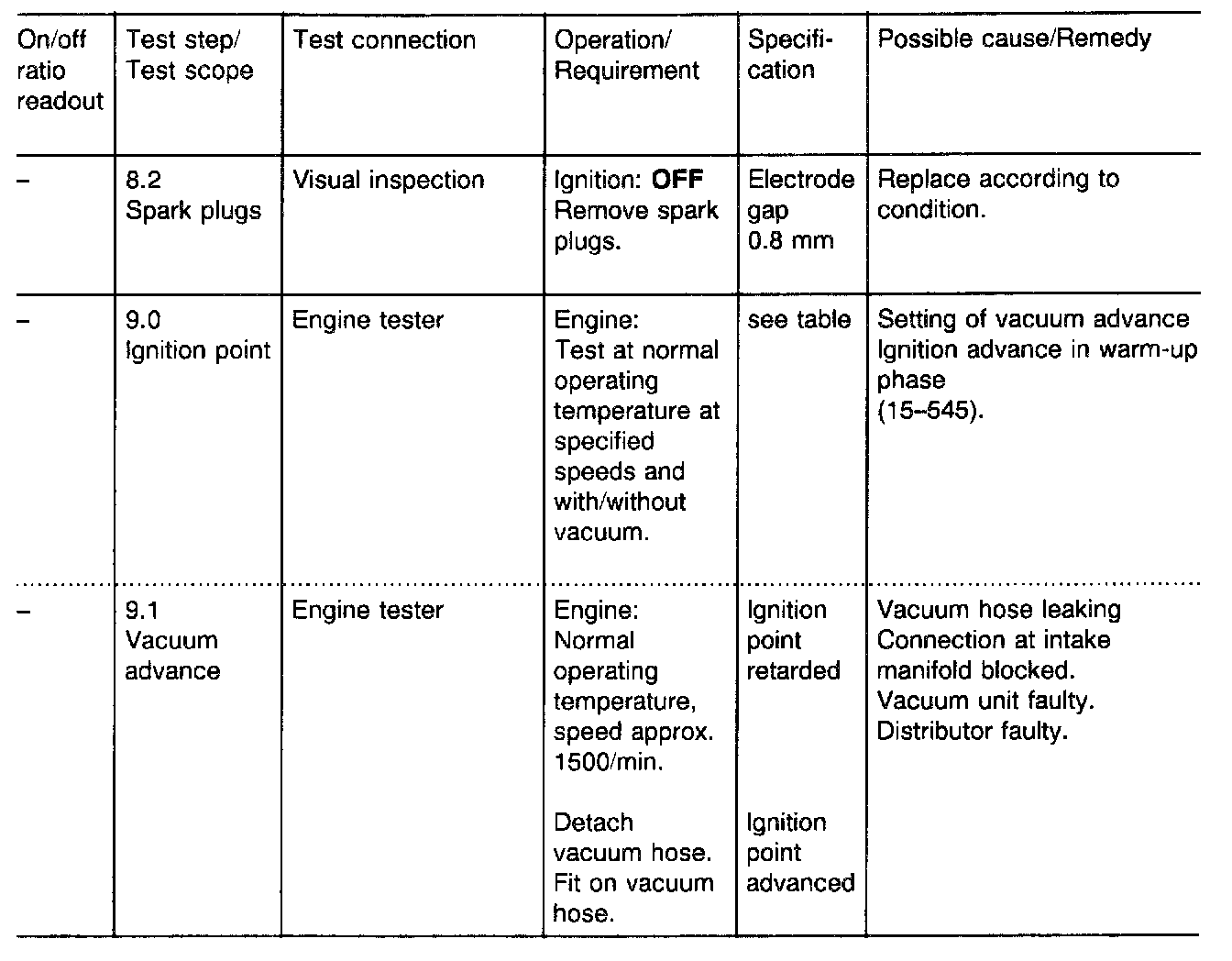

Test Steps 8.2 - 9.1:

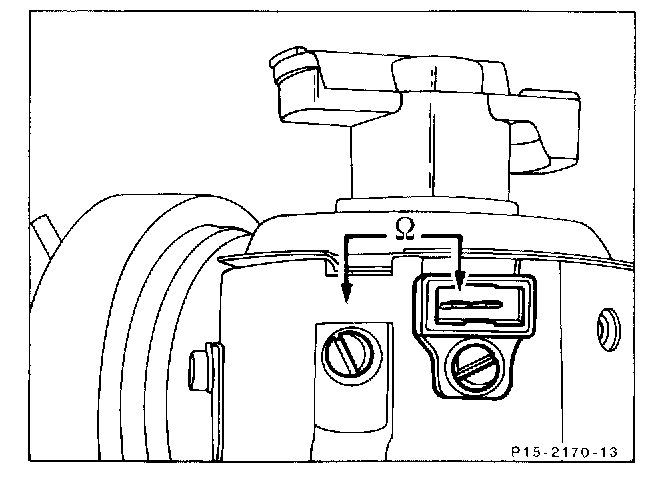

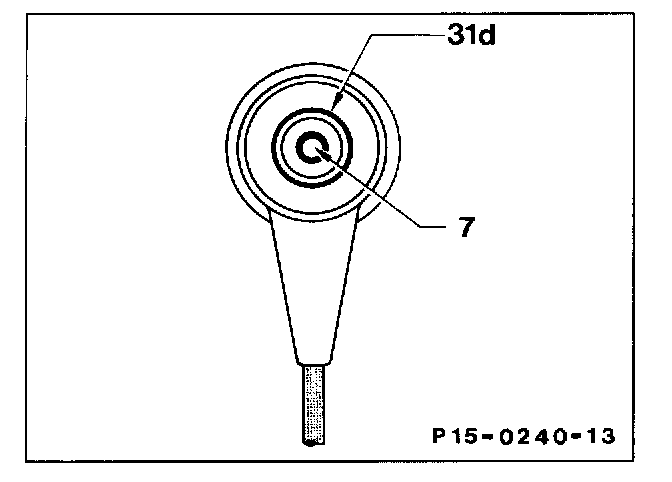

Induction sensor connector
Test resistance between connections 7 and 31d.
Test insulation of induction sensor coil to ground (>=200 kohm).

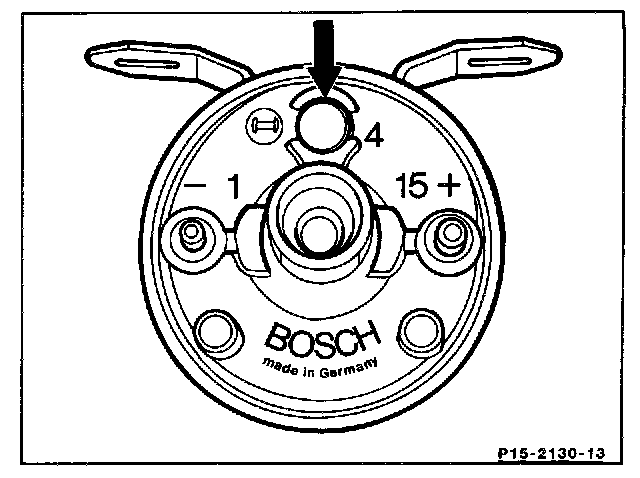

Ignition coil (T1)
If plug (arrow) pressed Out, replace.
