Testing Deceleration Shut-Off
Testing Deceleration Shut-Off
K) Testing deceleration shut-off
Connection diagram of socket box, see section g)

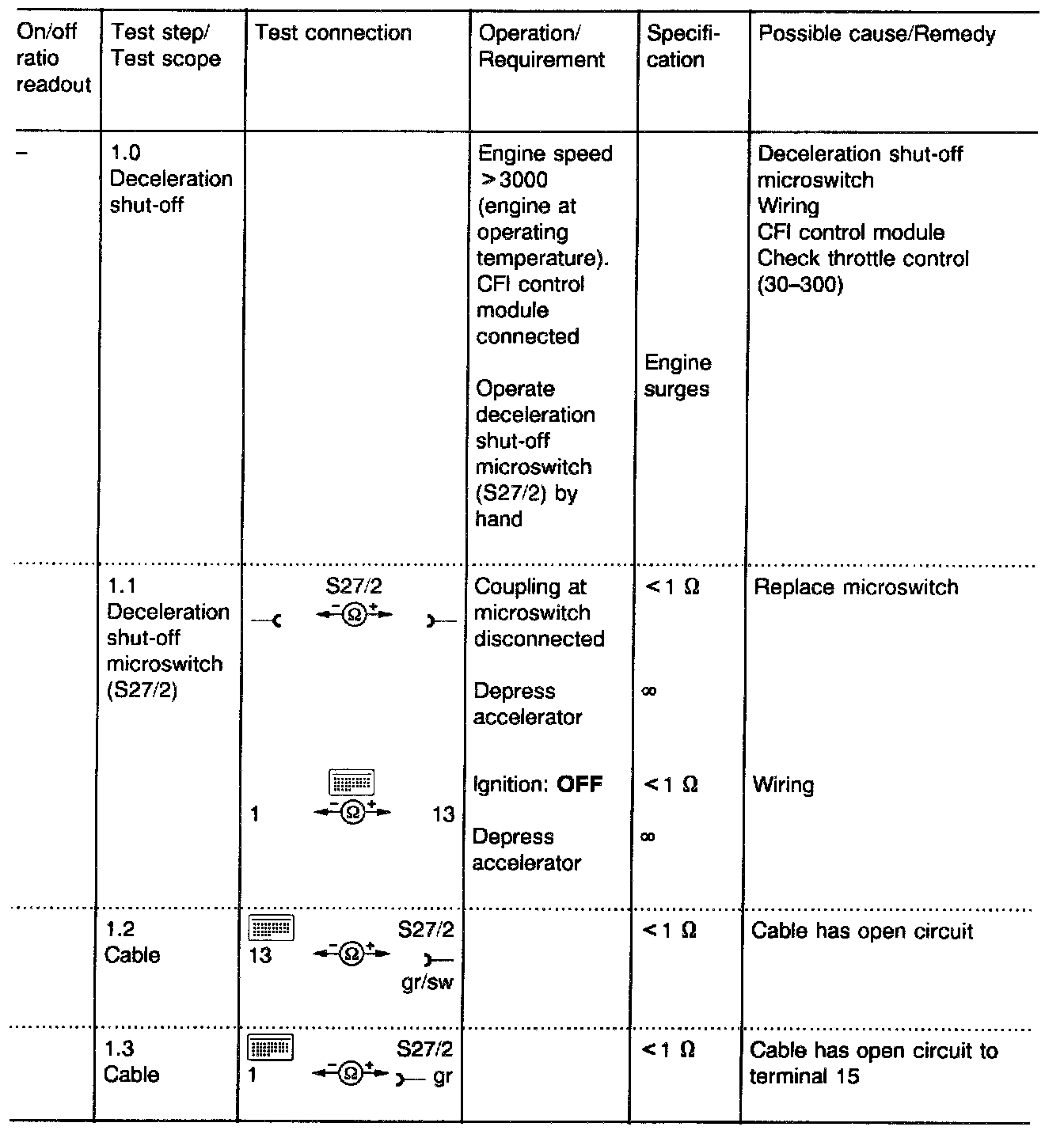

Test Steps 1.0 - 1.3:

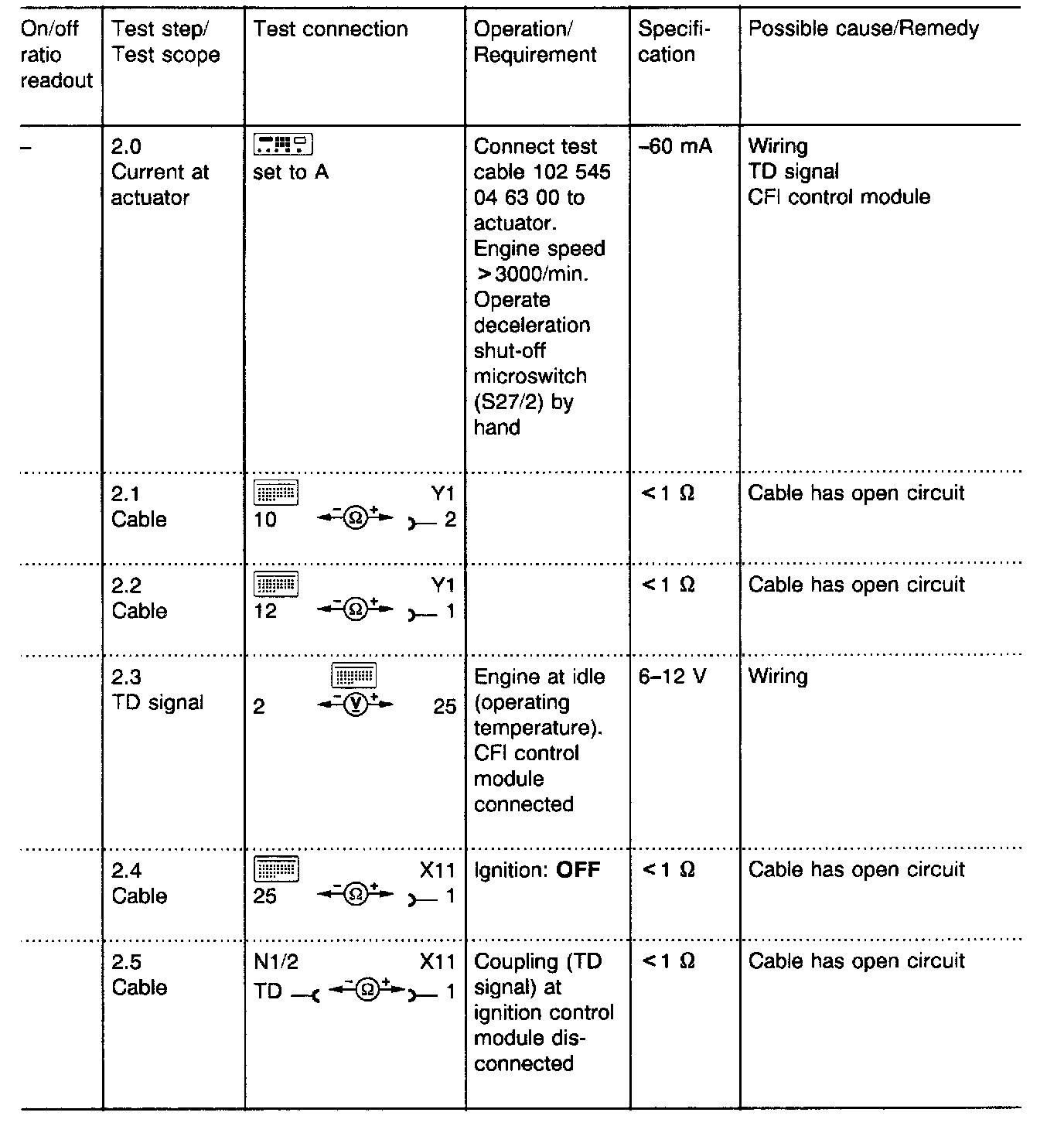

Test Steps 2.0 - 2.5:
