Test Program With Contact Box

H) Test program with contact box

Key To Symbols:

Note:
If the specified value of a test step, e. g. step 4.0, is in order, it is not necessary to perform test step 4.1.

Different component designations are possible depending on the wiring diagram or in the case of vehicles with optional equipment. These designations are given in parentheses.

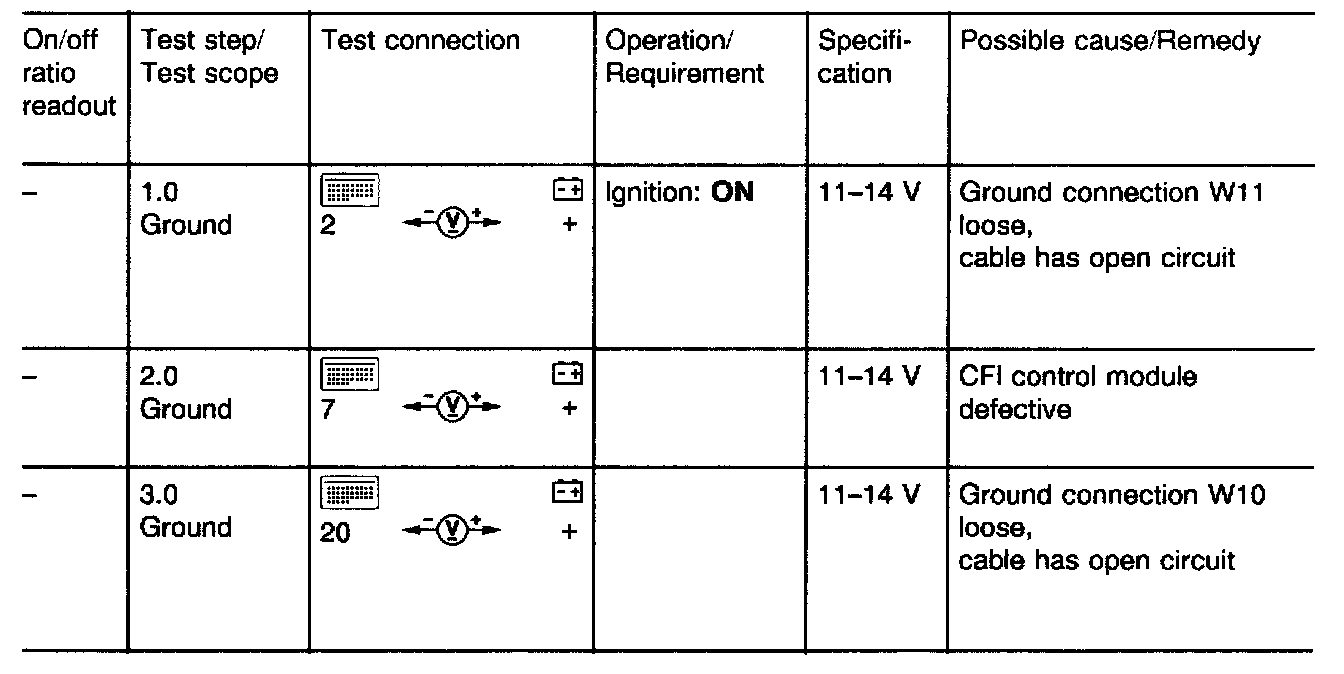

Test Steps 1.0 - 3.0:

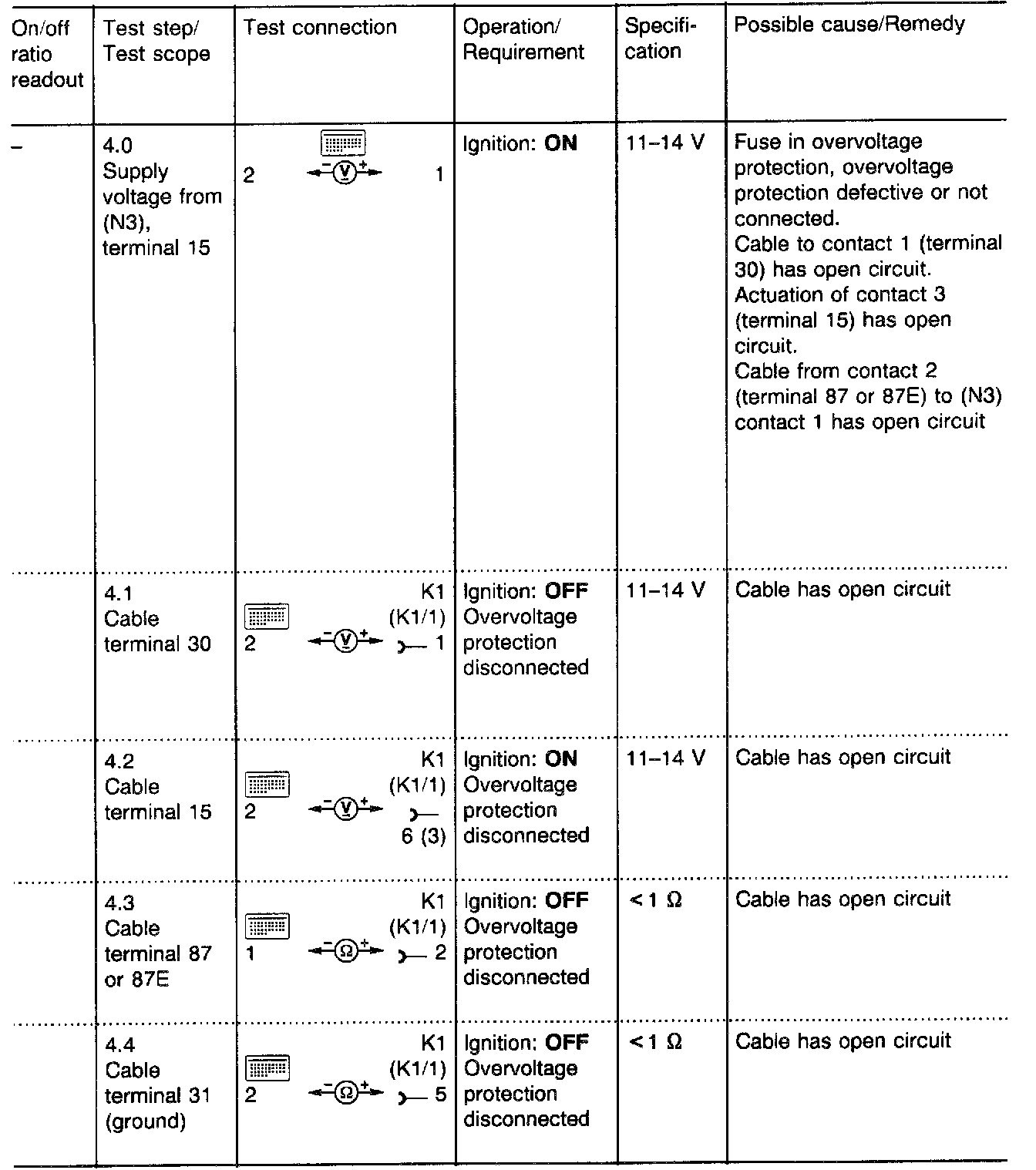

Test Steps 4.0 - 4.4:

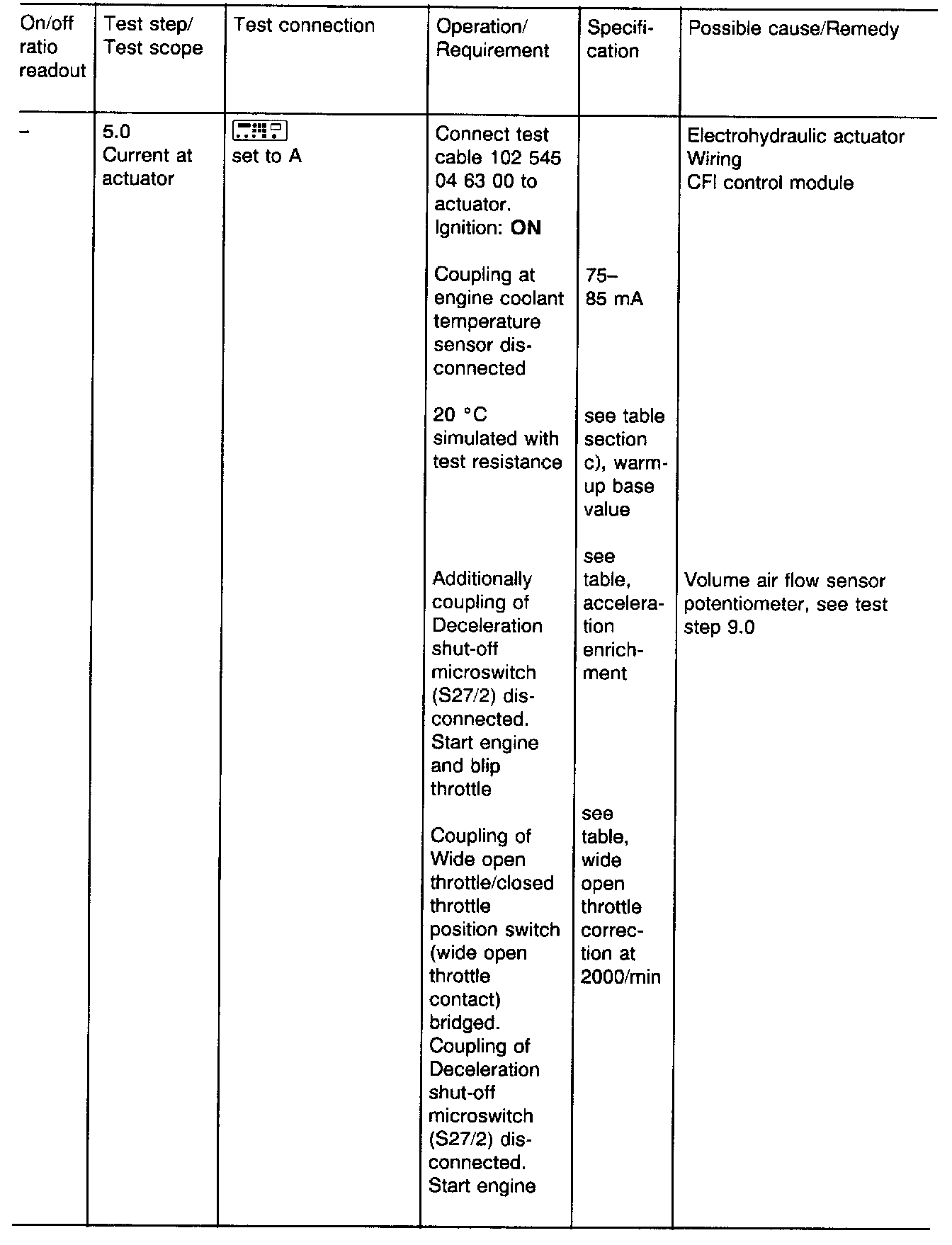

Test Step 5.0:

Test Steps 6.0 - 8.0:

Test Steps 8.1 - 9.2:

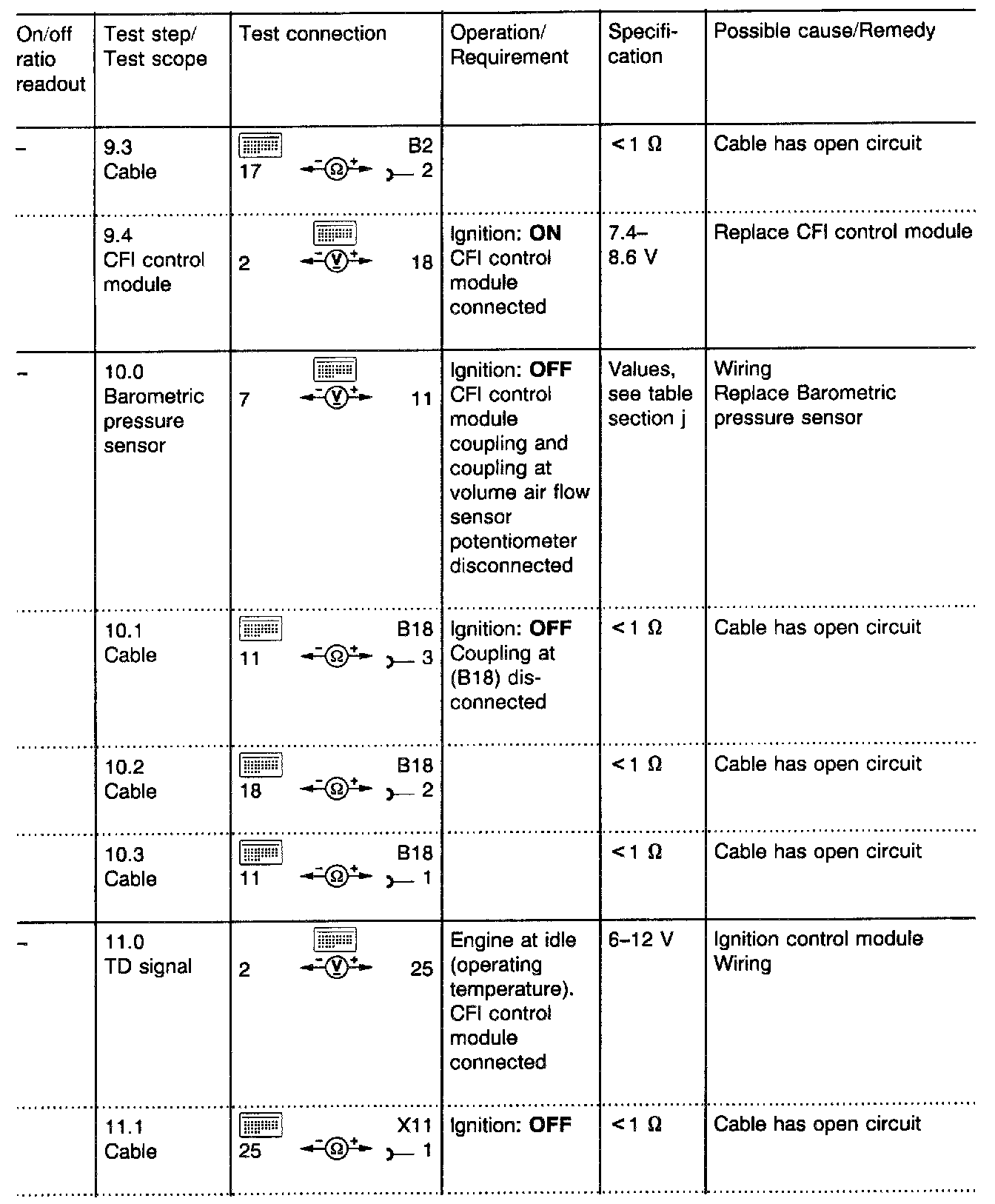

Test Steps 9.3 - 11.1:

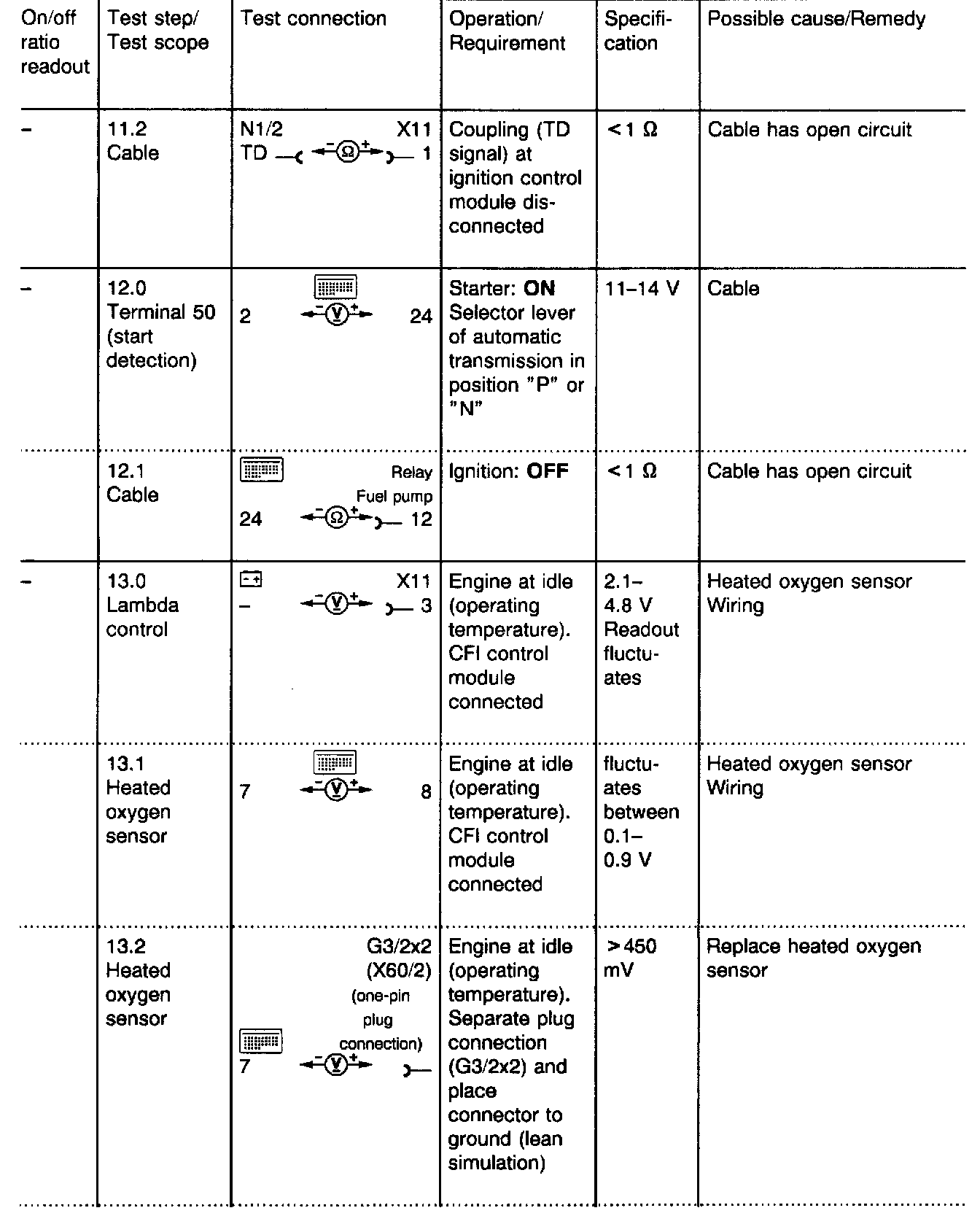

Test Steps 11.2 - 13.2:

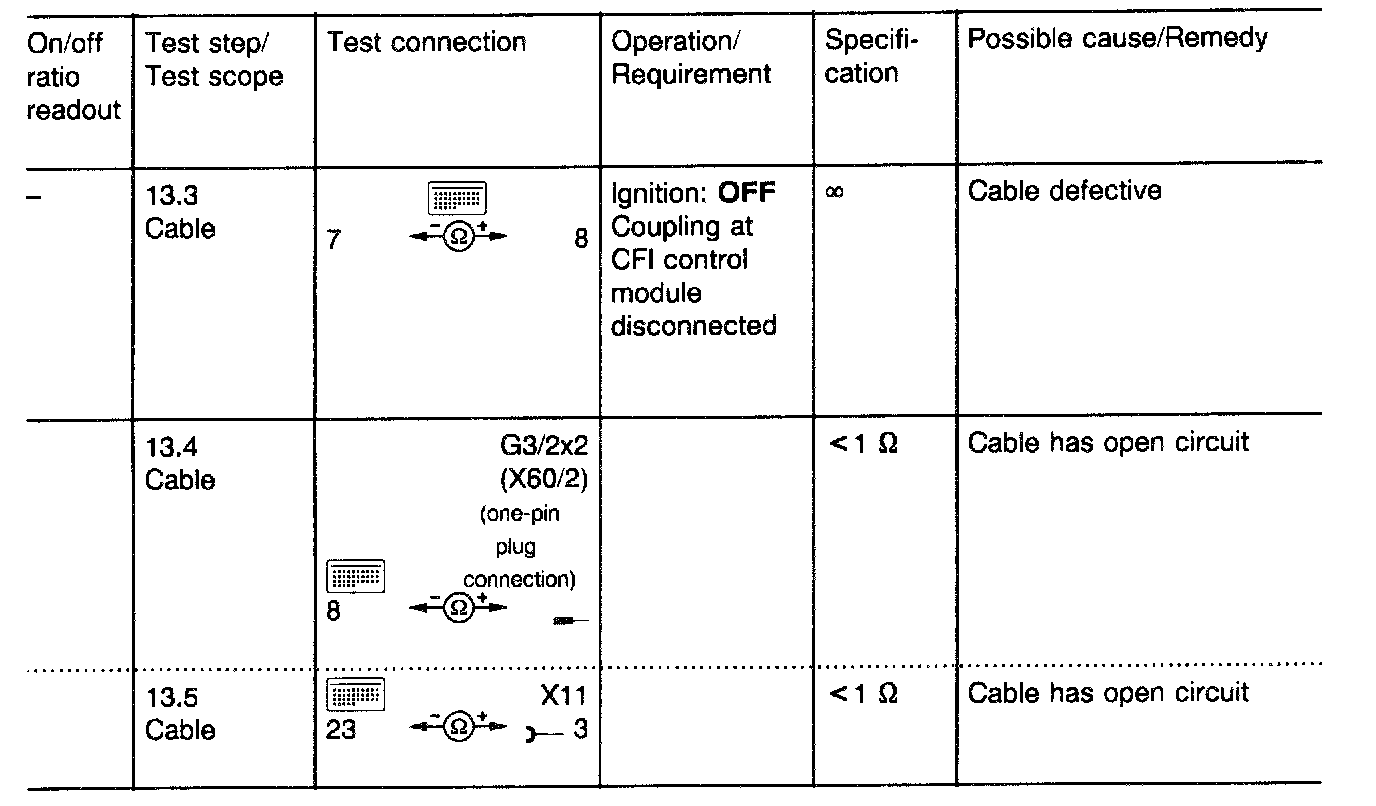

Test Steps 13.3 - 13.5:
