Testing Continuity of Inductor In Fuel Distributor
Testing continuity of Inductor in fuel distributorPreceding work:
Testing fuel pressures and internal leaktightness. Testing Fuel Pressure and Internal Leaktightness

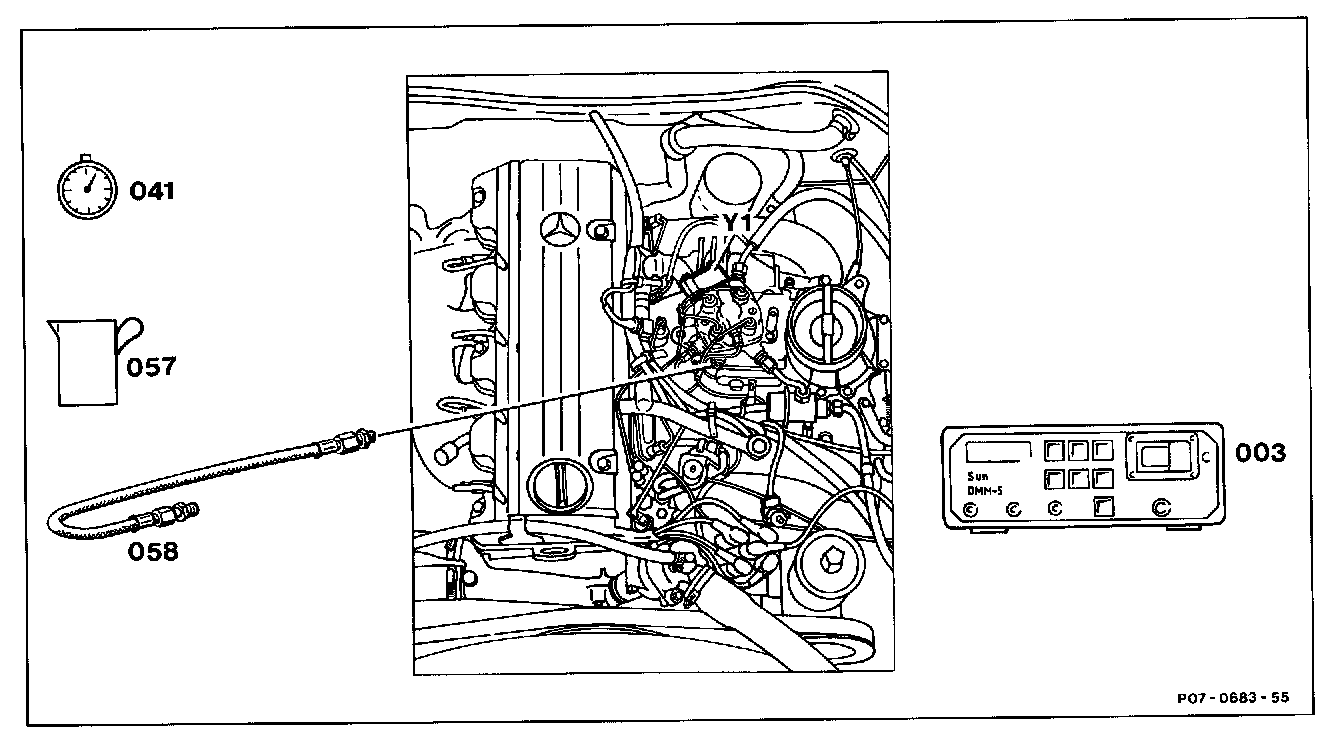

- Detach connector at electrohydraulic actuator (Y1).
With lambda control: switch on ignition. Detach oxygen sensor signal plug connection.
- Unscrew fuel line at fuel distributor and seal with M10x1 plug.
- Connect pressure hose (058) to fuel distributor and hold into measuring beaker. Special tool 103 589 00 21 05.
- Detach fuel pump relay module and bridge contacts 7 and 8. (Fuel pump running) Special tool 201 589 00 99 00.
- Test inductor continuity
Specification: 130 - 150 cm3/min at minimum voltage of 11.5 V at fuel pump.
- If specification is not reached, replace fuel distributor.
