Cold Start Injector: Locations

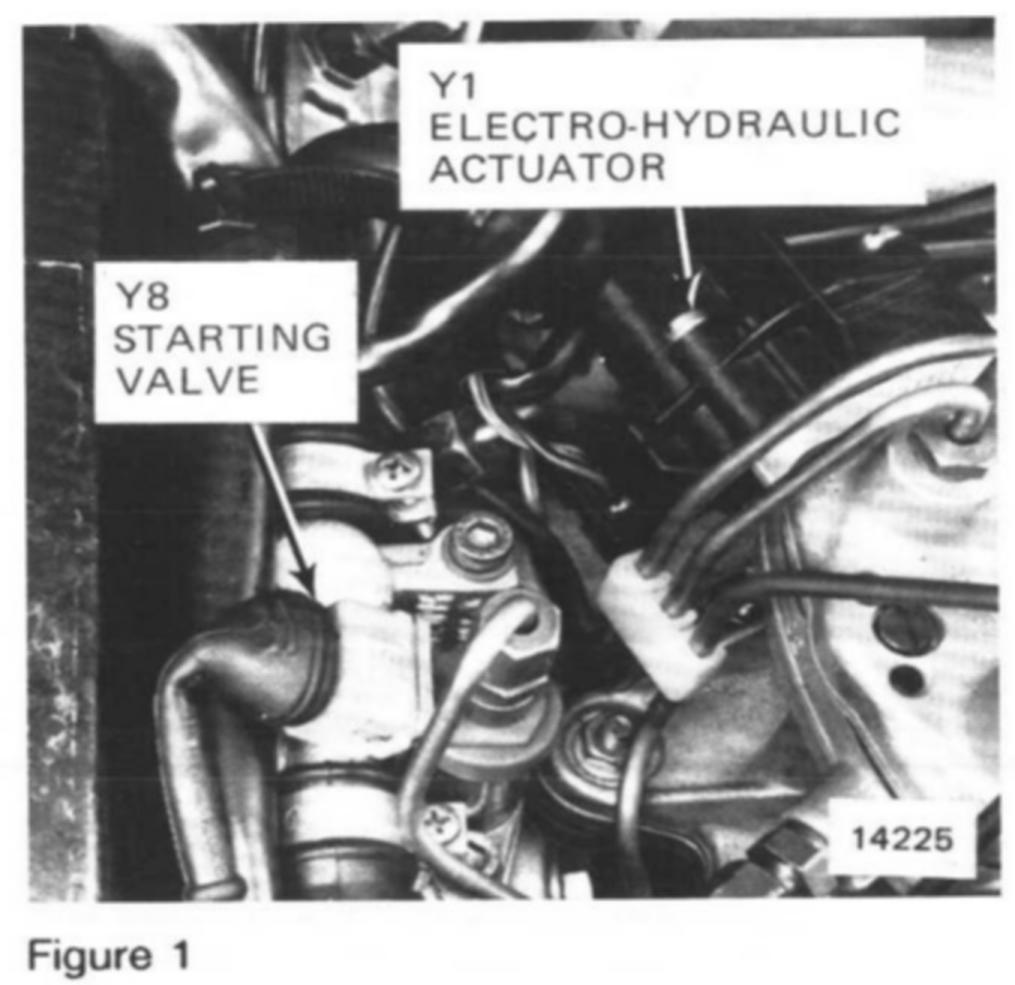

Component ID: Y8
Component Name: Start valve
Component Location: Top of engine, right side of air flow sensor housing
