Heated Oxygen Sensor

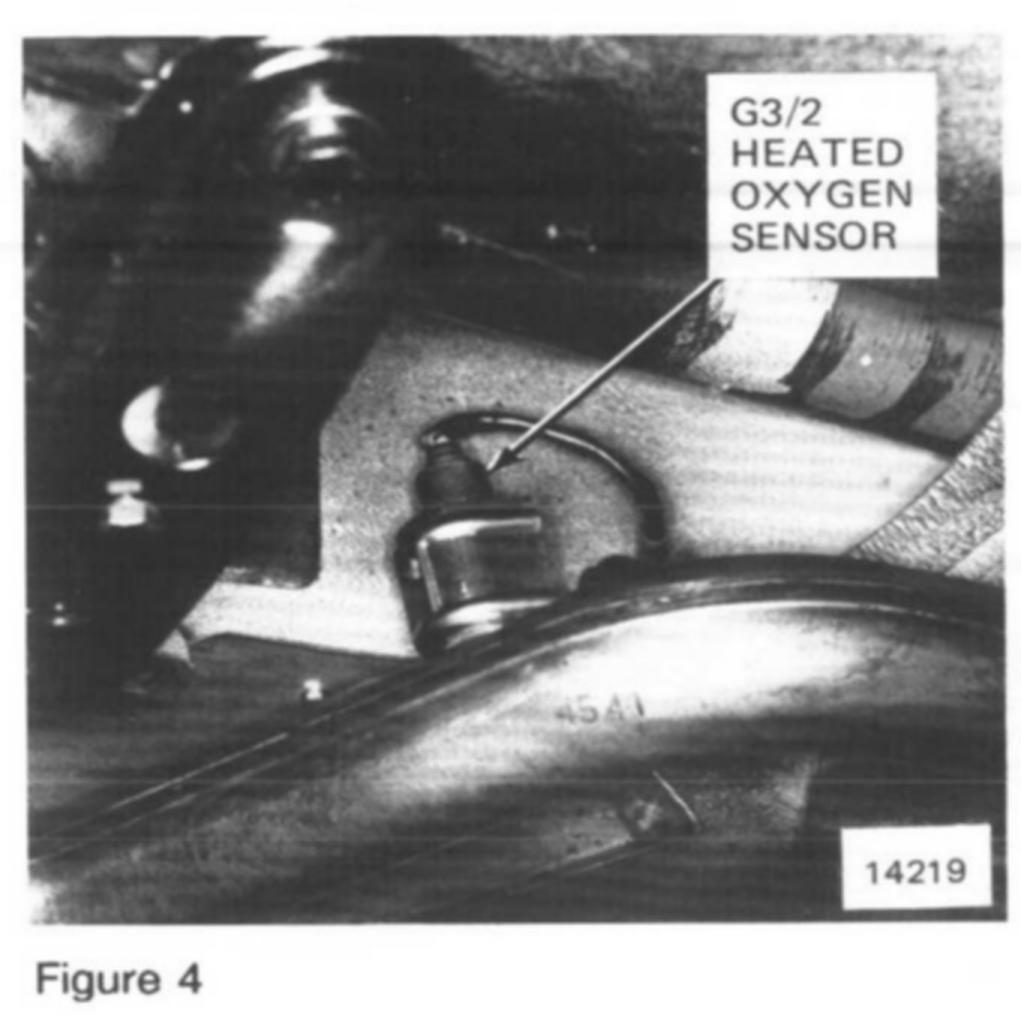

Component ID: G3/2
Component Name: Heated oxygen sensor
Component Location: In exhaust system, rear of transmission

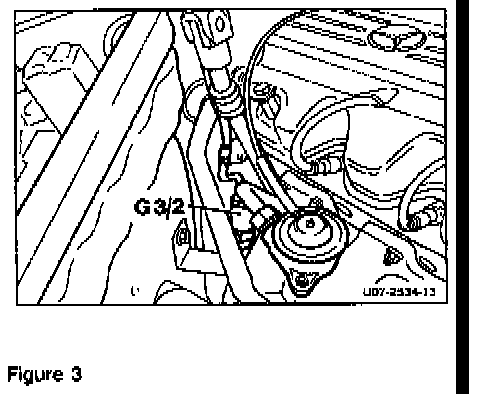

Component ID: G3/2
Component Name: Heated oxygen sensor
Component Location: In exhaust manifold (M.Y. 91)
