A. Checking Compressor Cutout If Clutch Fails to Cut In

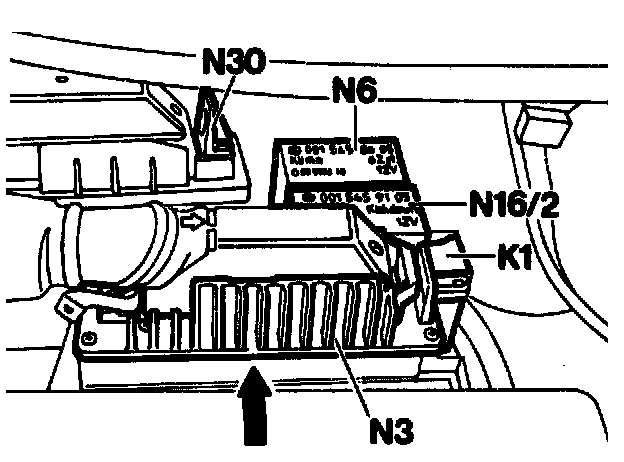

N6 Compressor Control Unit, N3 CIS-E Control Unit, N30 ABS Control Unit:

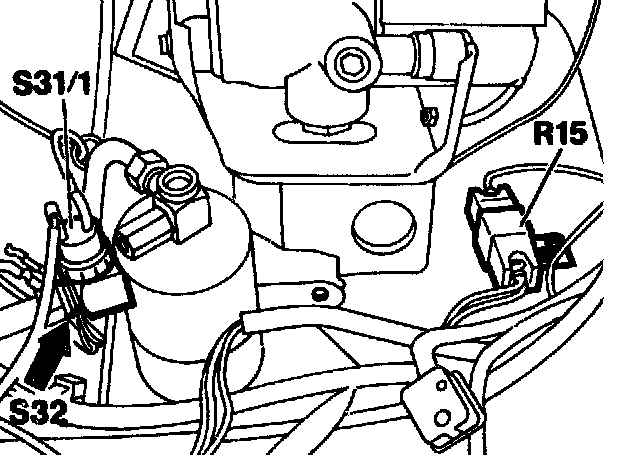

S31/1 Refrigerant Low Pressure Switch, R15 Auxiliary Fan Preresistor:

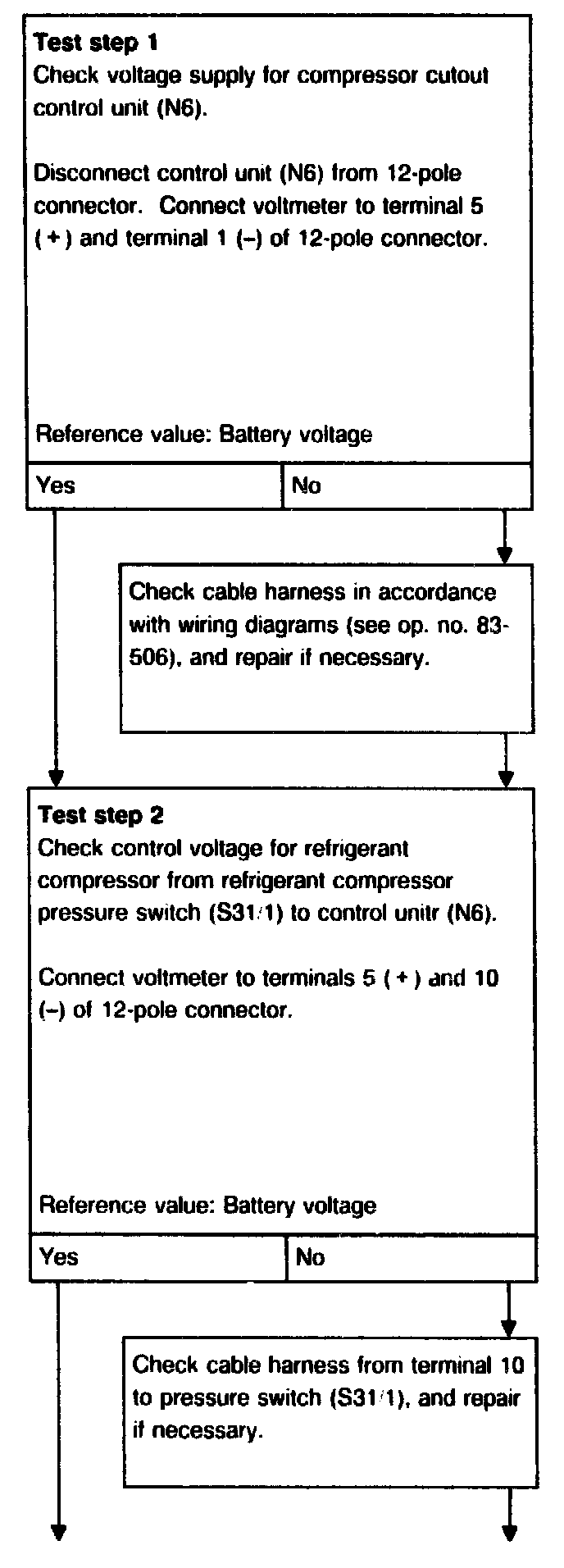

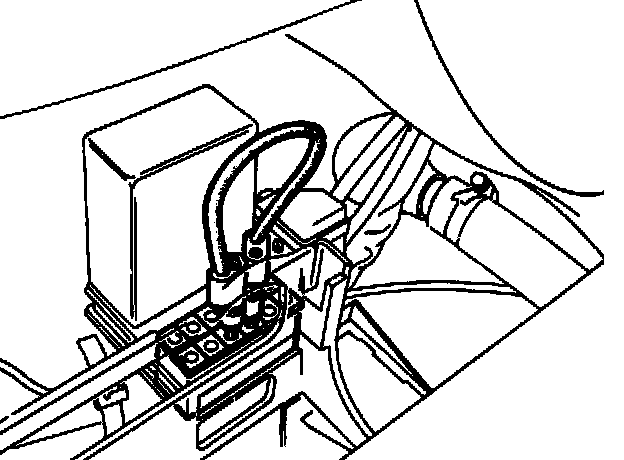

Test step1 and 2

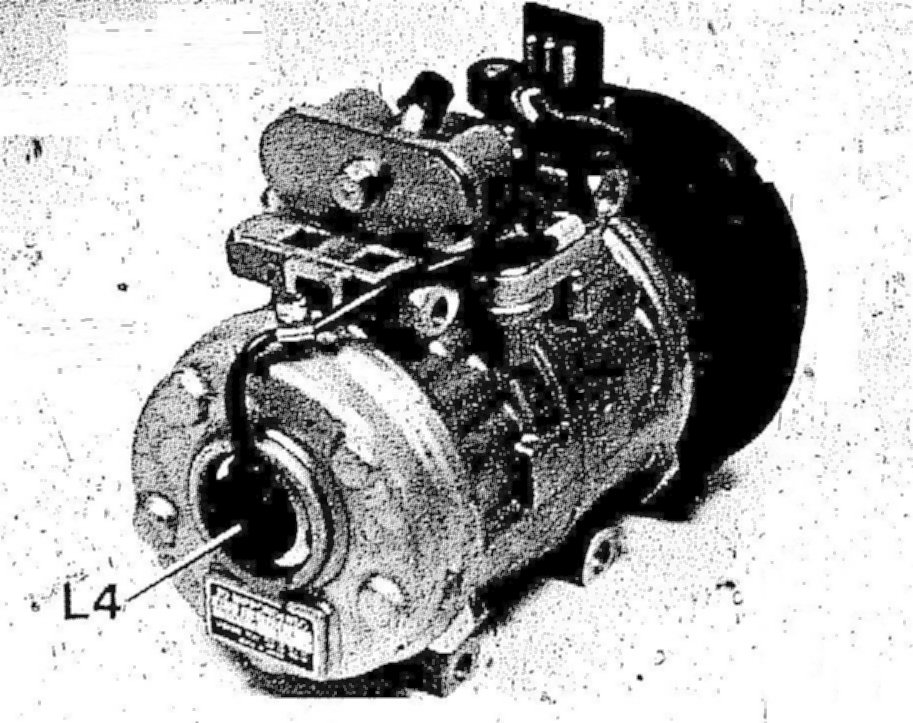

L4 Compressor Speed Sensor:






���-:

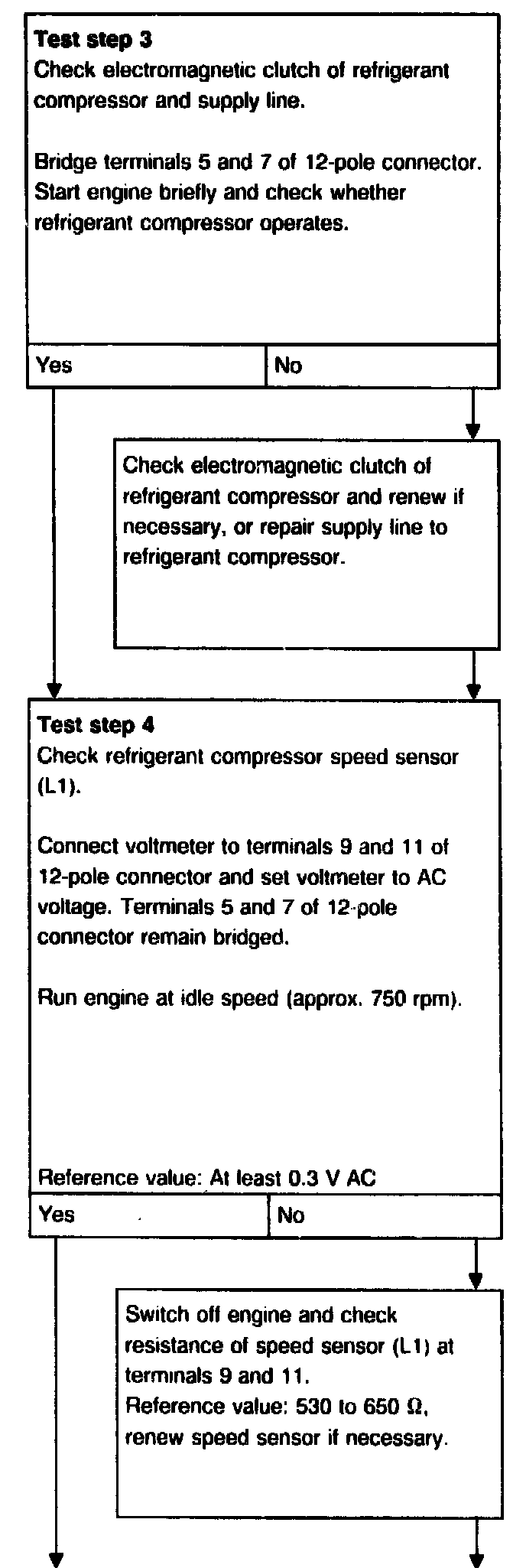

Test step3 and 4







�%�-:

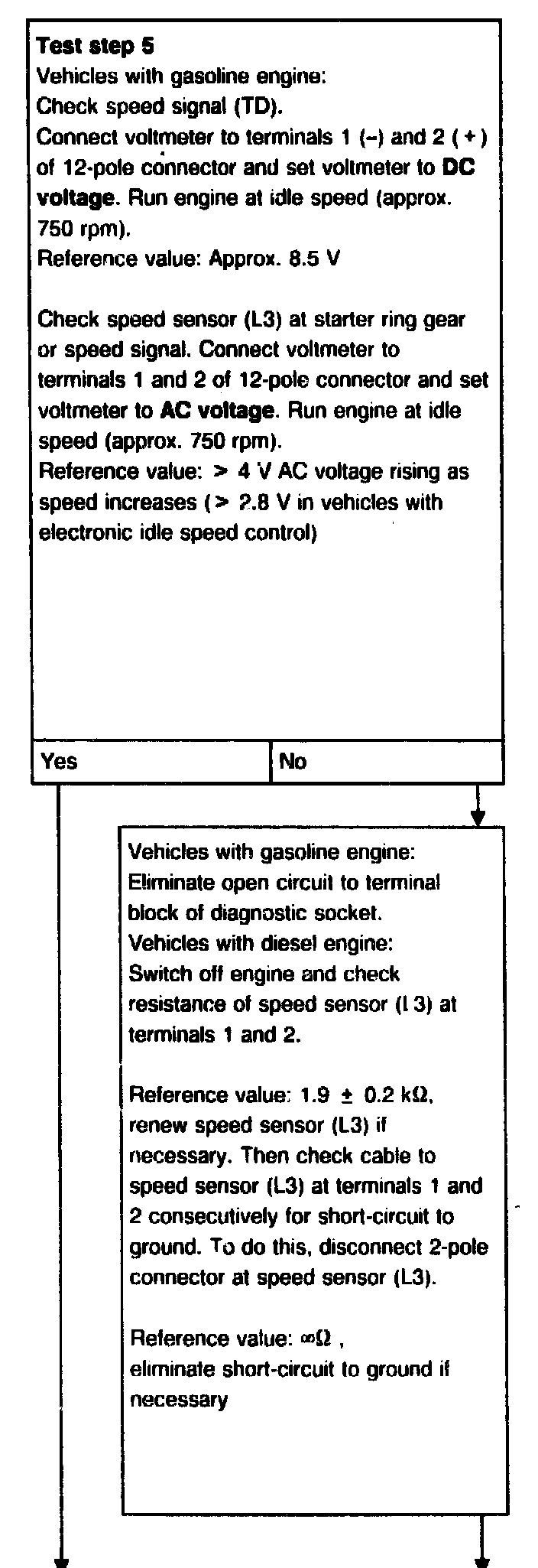

Test step5

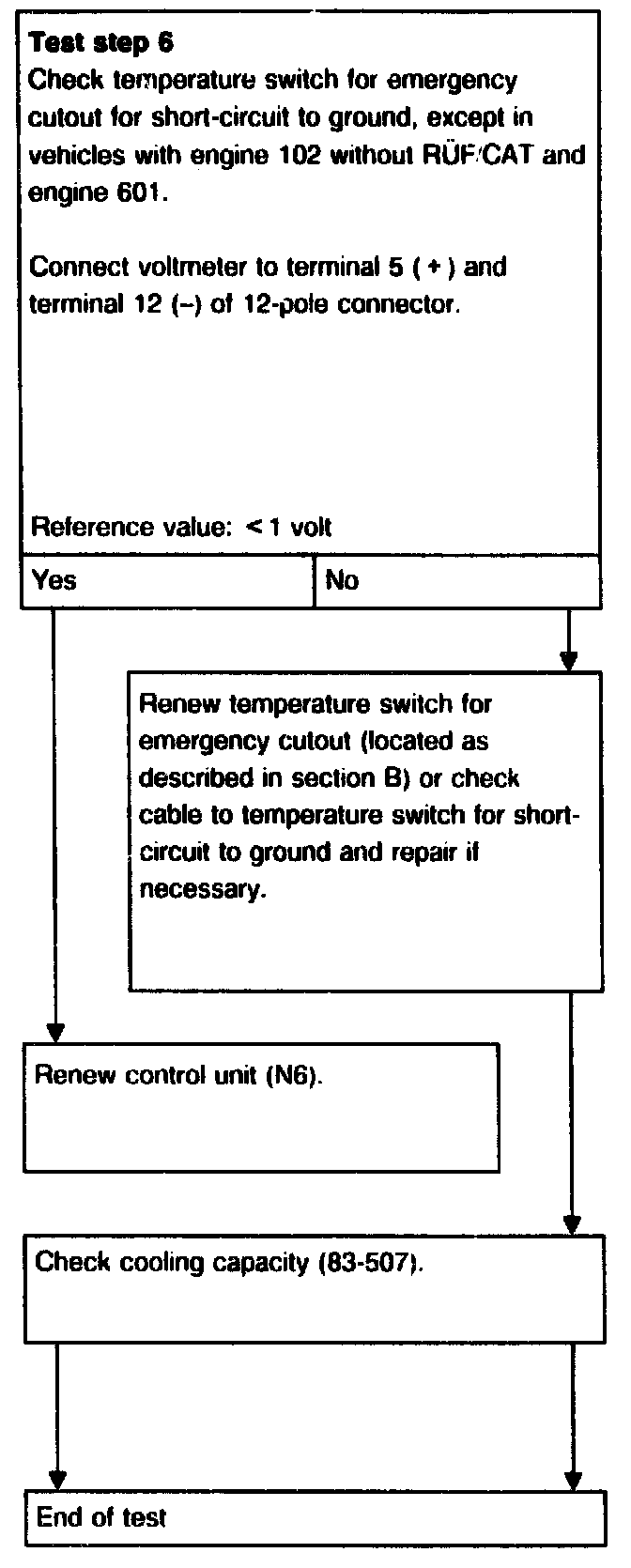

Test step6
