c) From 09/84 to 08/85

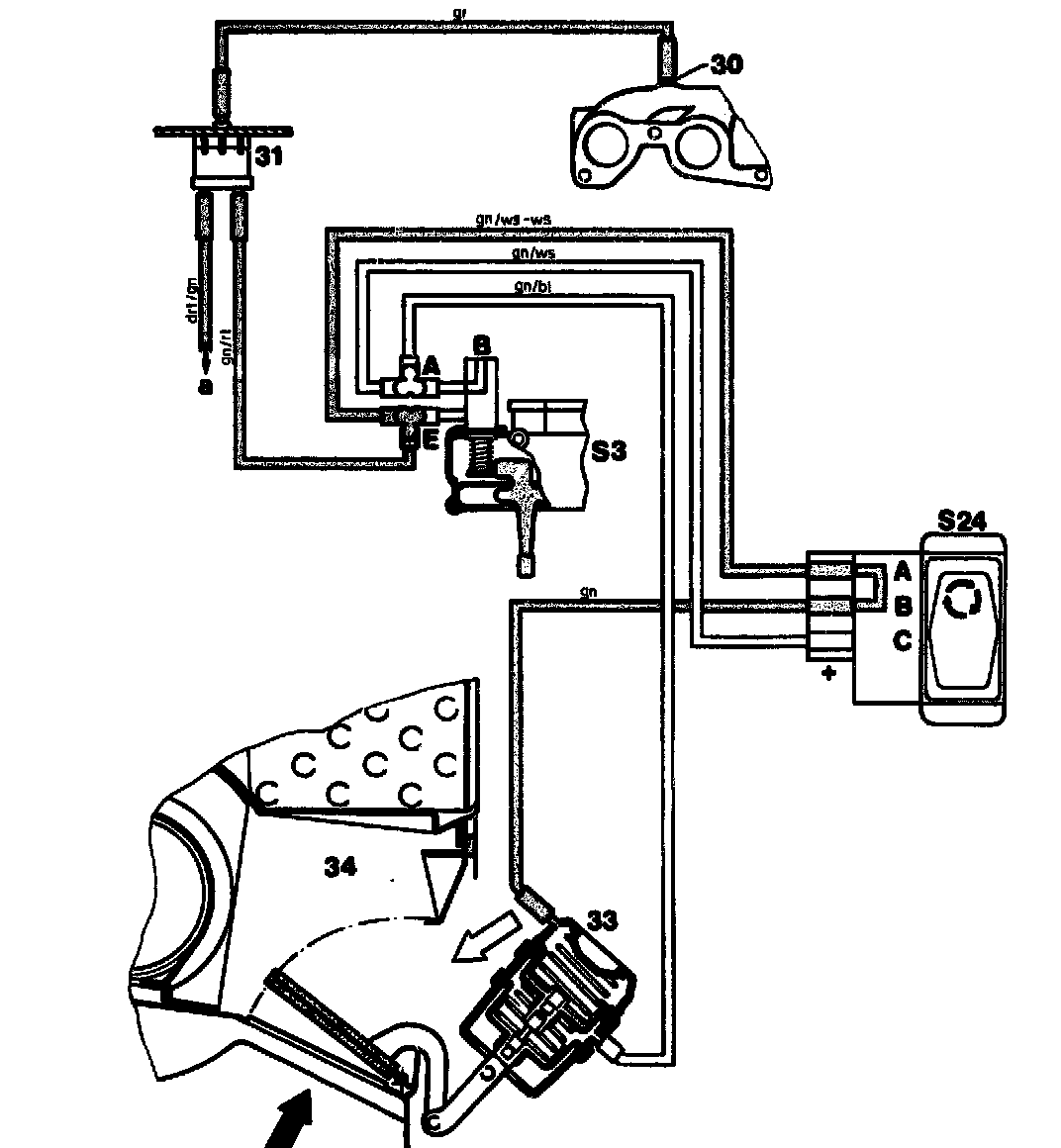

Air volume slide switch in position "min", fresh air/recirculated air flap closed - no fresh air supply 3rd version with electro-pneumatic fresh/recirculated air switch (S24)

A Vacuum output
B Positive ventilation
E Vacuum input
S3 Air volume slide switch with vacuum switch
S24 Fresh/recirculated air switch
30 Vacuum connection on intake manifold
31 Check valve
33 2-stage vacuum element for fresh air/recirculated air flap
34 Evaporator housing
a Connection to left-hand heater switch for vacuum water valve

Arrow, white Fresh air
Arrow, black Recirculated air

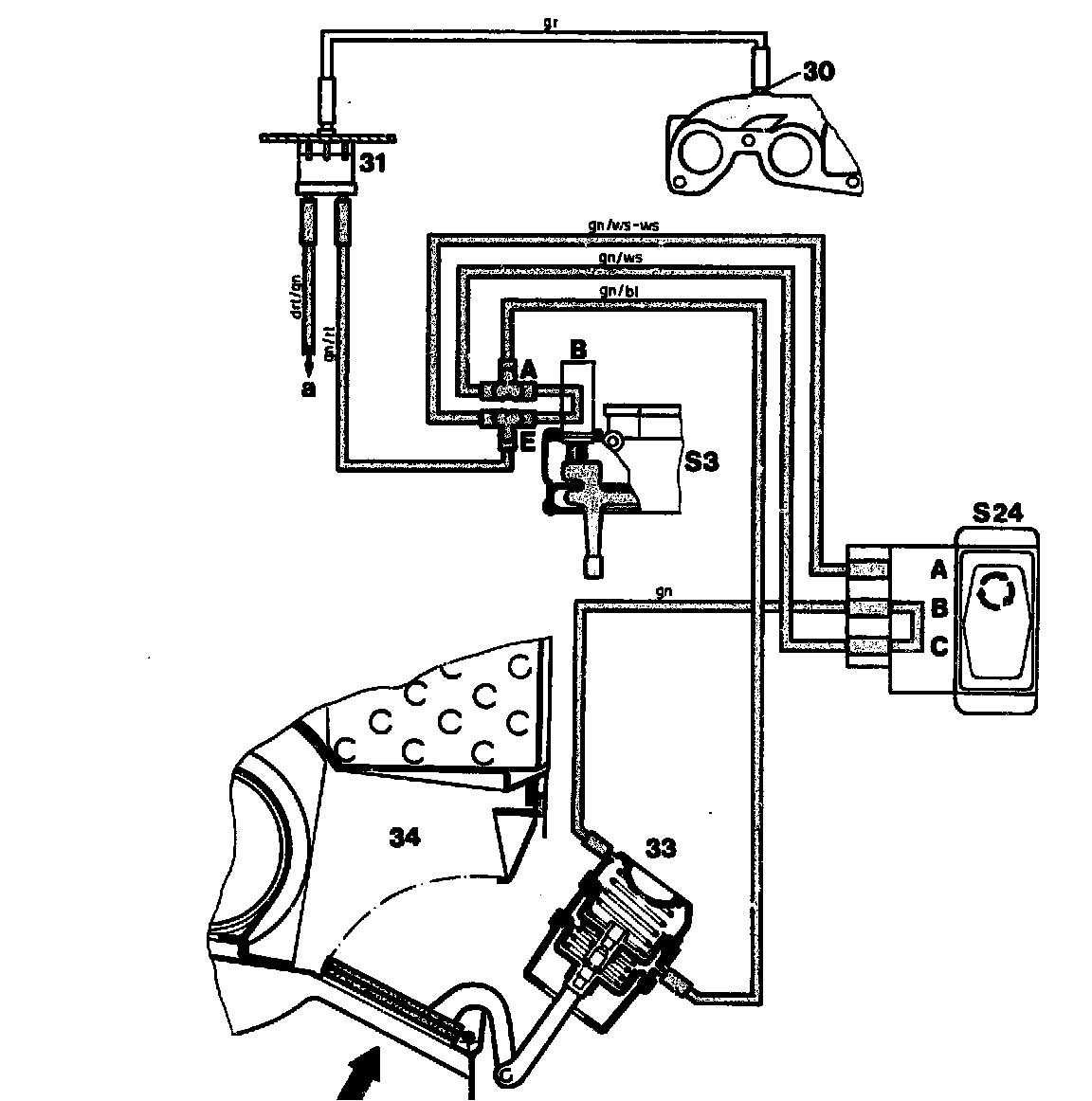

Air volume slide switch at 1st blower stage, fresh air/recirculated air flap open, 100% fresh air 3rd version with electro-pneumatic fresh/recirculated air switch (S24)

A Vacuum Output
B Positive ventilation
E Vacuum input
S3 Air volume slide switch with vacuum switch
S24 Fresh/recirculated air switch
30 Vacuum connection on intake manifold
31 Check valve
33 2-stage vacuum element for fresh air/recirculated air flap
34 Evaporator housing
a Connection to left-hand heater switch for vacuum water valve


Arrow, white Fresh air
Arrow. black Recirculated air

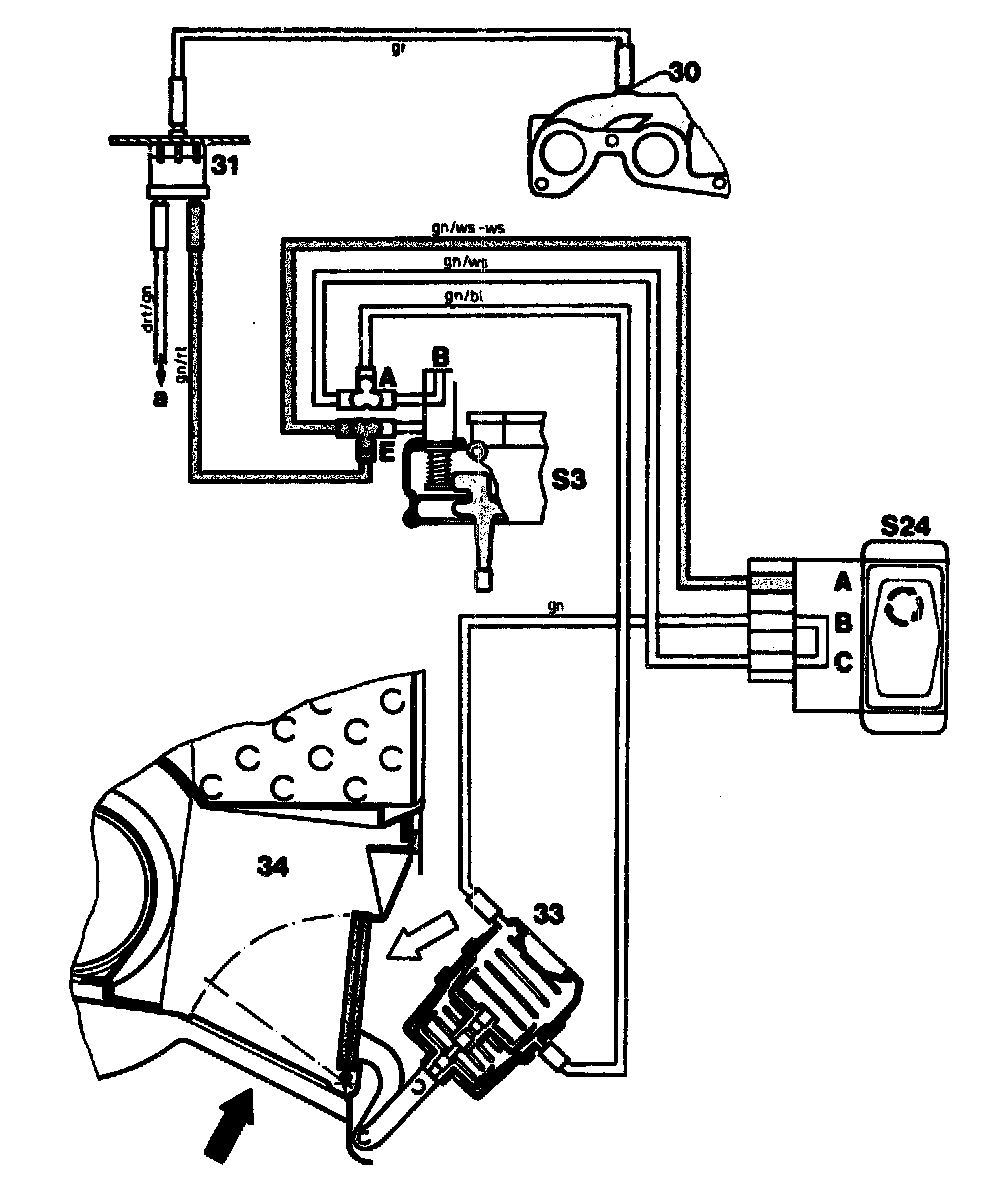

Air volume slide switch at 1st blower stage and fresh/recirculated air switch switched on, fresh air/recirculated air flap in position "recirculated air" corresponds to approx. 20% fresh air and 80% recirculated air

3rd version with electro-pneumatic fresh/recirculated air switch (S24)

A Vacuum output
B Positive ventilation
E Vacuum input
S3 5Air volume slide switch with vacuum switch
S24 Fresh/recirculated air switch
30 Vacuum connection on intake manifold
31 Check valve
33 2-stage vacuum element for, fresh air/recirculated air flap
34 Evaporator housing
a Connection to left-hand heater switch for vacuum water valve

Arrow white Fresh air
Arrow, black Recirculated air
