H. Refrigerant Compressor

The diesel vehicle is equipped with a Nippondenso swash plate refrigerant compressor.

Vehicles with gasoline engine up to 08/84 are fitted with the Delco R4 refrigerant compressor, and as of 09/84 the Nippondenso refrigerant compressor. The filling capacity of the air conditioning system amounts to 1.1 kg refrigerant R12 (0.95 kg for models 201.034/035).

If the Nippondenso refrigerant compressor operates sluggishly, it is switched off to protect the single belt drive (see "Function of compressor cutout", Section I).

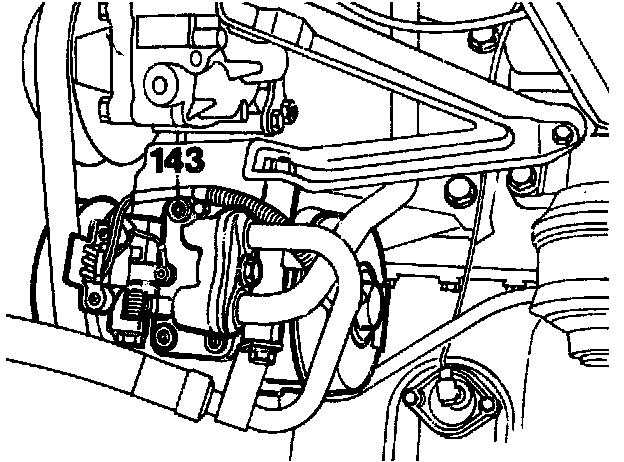

Arrangement of Nippondenso refrigerant compressor(143) in vehicles with engine 601

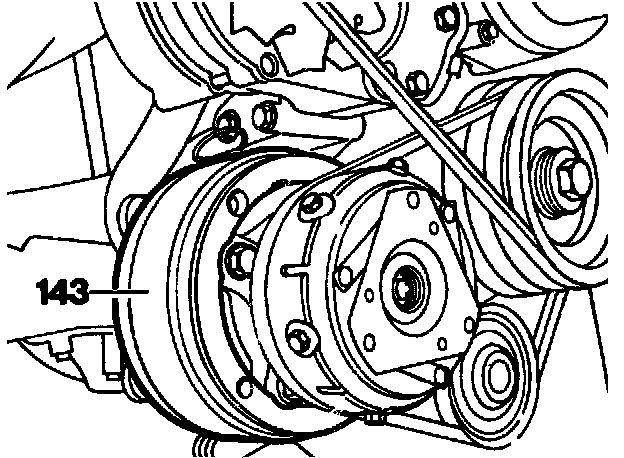

Arrangement of Delco R 4 refrigerant compressor (143) in vehicles with engine 102 up to 08/84







Arrangement of at Nippondenso refrigerant compressor (143) in vehicles with engine 102 as of 09/84
