Ignition Rotor: Service and Repair

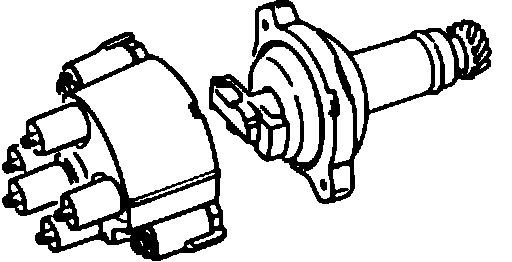

High Voltage Distributor:





1. Remove distributor cap (2 screws).
2. Pull ignition rotor from distributor shaft.
3. Re-install in reverse order.
