Radiator: Service and Repair

Removing and Installing Radiator

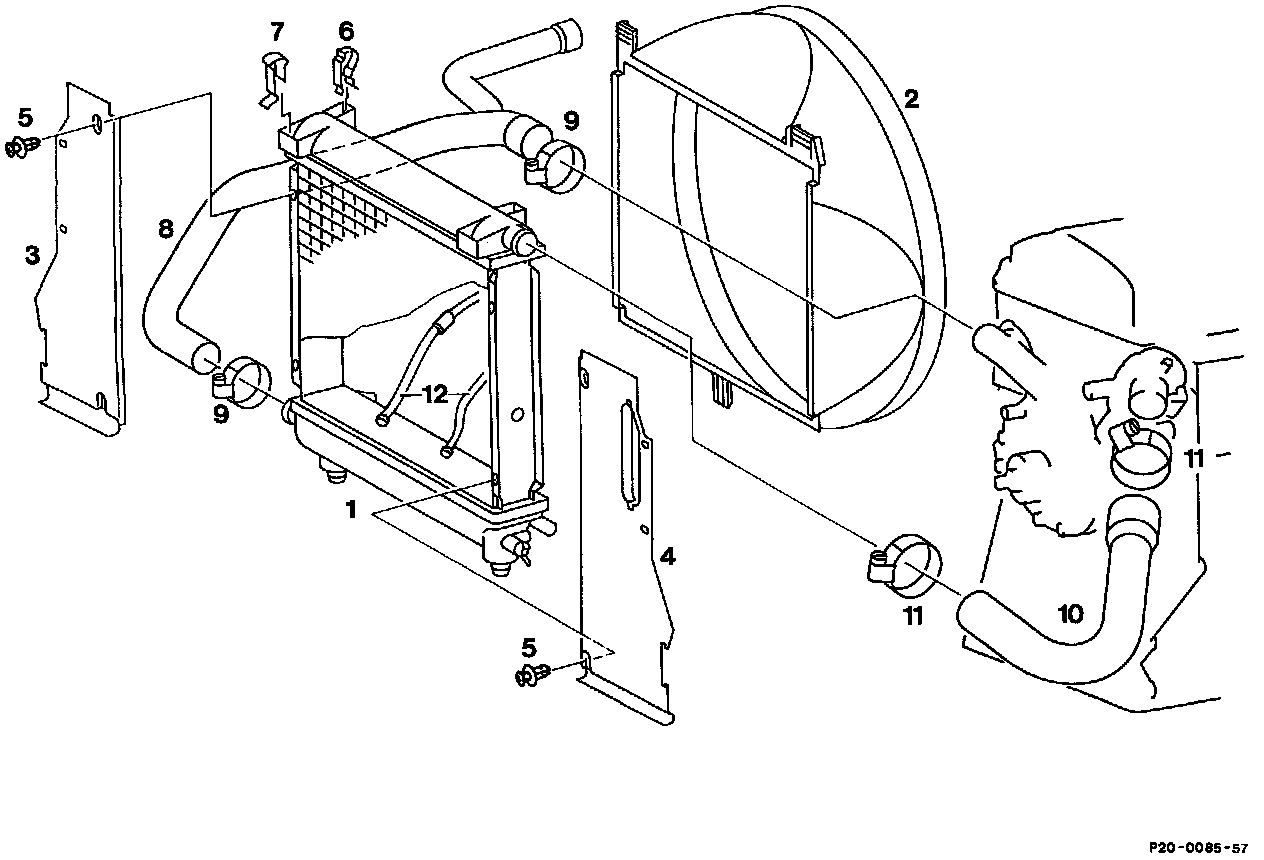

Removal and Installation






1. Detach coolant hoses at radiator






2. Remove clips (6) and place fan cowl over fan.






3. On vehicles without air conditioning / automatic climate control, remove clips (5) on front of radiator.






4. Seal Free ends of oil pipe of automatic transmission with shop made pipe fitting. (01)







5. Remove retaining clips (7) for radiator, and lift out radiator.

6. Reverse procedure to install.

7. Check engine cooling system for leaks.
8. Adjust oil level in automatic transmission to correct level.
